DTC P0717: Input/Turbine Speed Sensor Circuit No Signal: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

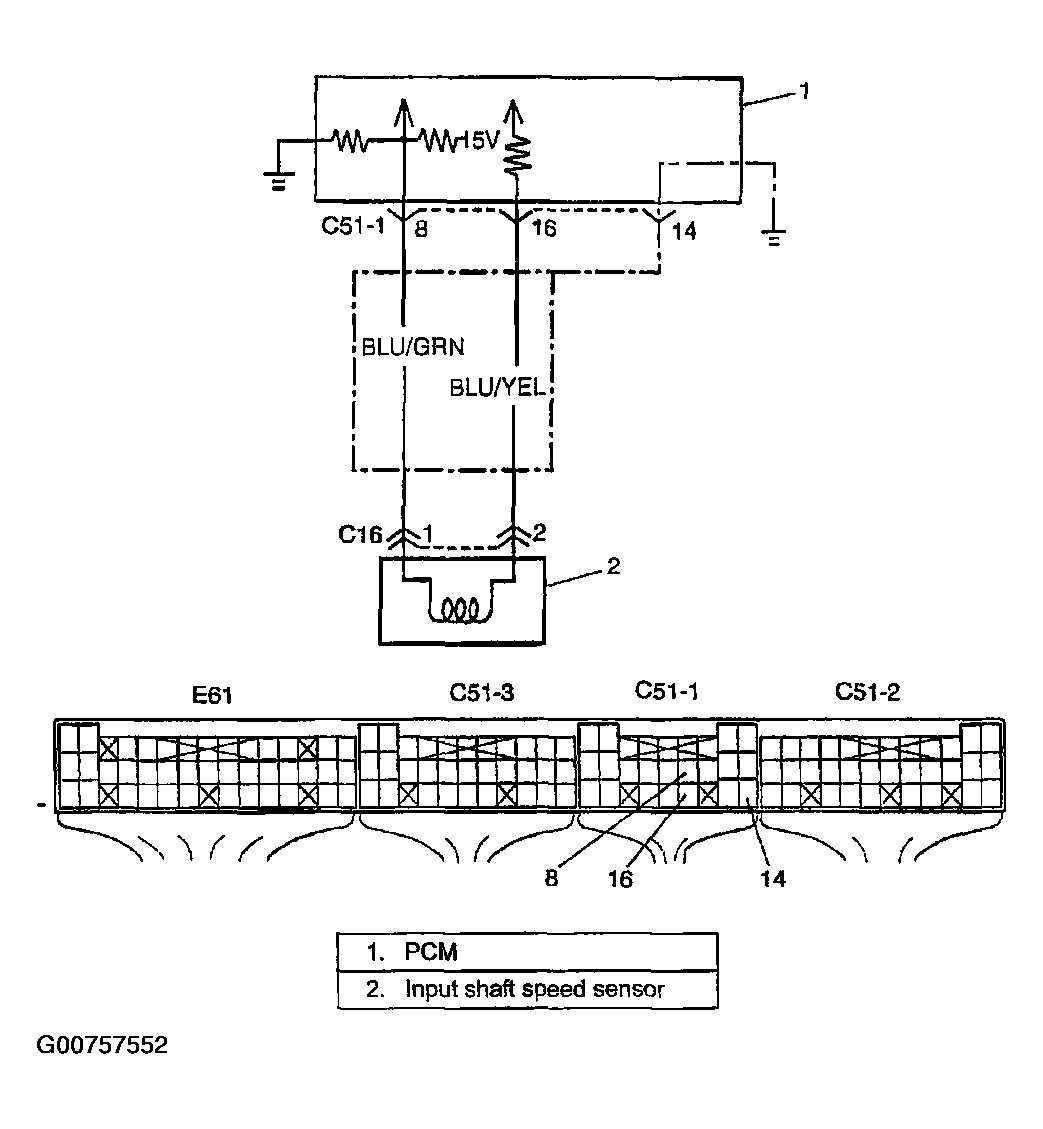

Fig 1: DTC P0717 Wiring Diagram
G00757552Courtesy of SUZUKI OF AMERICA CORP.
