Wheel Bearing Play Check

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Measure to determine whether the wheel bearing play is within 0.002" (0.05 mm) or not. If the play is not within 0.002" (0.05 mm) while the nut is tightened to 159-202 ft. lbs. (216-274 N.m), the bearing, hub and/or knuckle have probably not been installed correctly. See Fig 1 . If that is the case, replace the bearing and re-install.

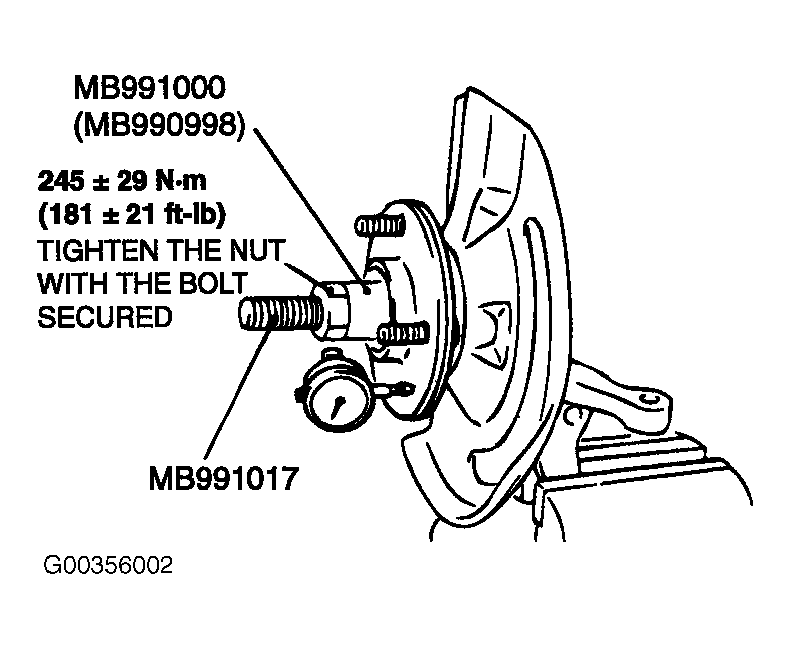

Fig 1: Checking Wheel Bearing Play
G00356002Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
