Removal (Left Side)

WARNING: This page is about a different car, the 2004 Suzuki XL-7, 2004 Suzuki Vitara, and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hoist vehicle and remove wheel.
  2. Remove engine undercover.
  3. Remove axle shaft drive flange.
  4. Remove circlip (1) and front spindle thrust washer (2). See Fig 1 .
  5. Remove axle shaft flange bolts and nuts. See Fig 2 .
    6. CAUTION: To prevent breakage of boots (wheel side and differential side), DO NOT contact them with other parts when removing axle shaft assembly.
  6. Remove axle shaft assembly from left axle shaft case. See Fig 3 .
    7. CAUTION: DO NOT damage axle shaft joint and boot.
  7. Remove axle shaft oil seal (1). See Fig 4 .
Fig 1: Removing Circlip & Thrust Washer
G00275904Courtesy of SUZUKI OF AMERICA CORP.

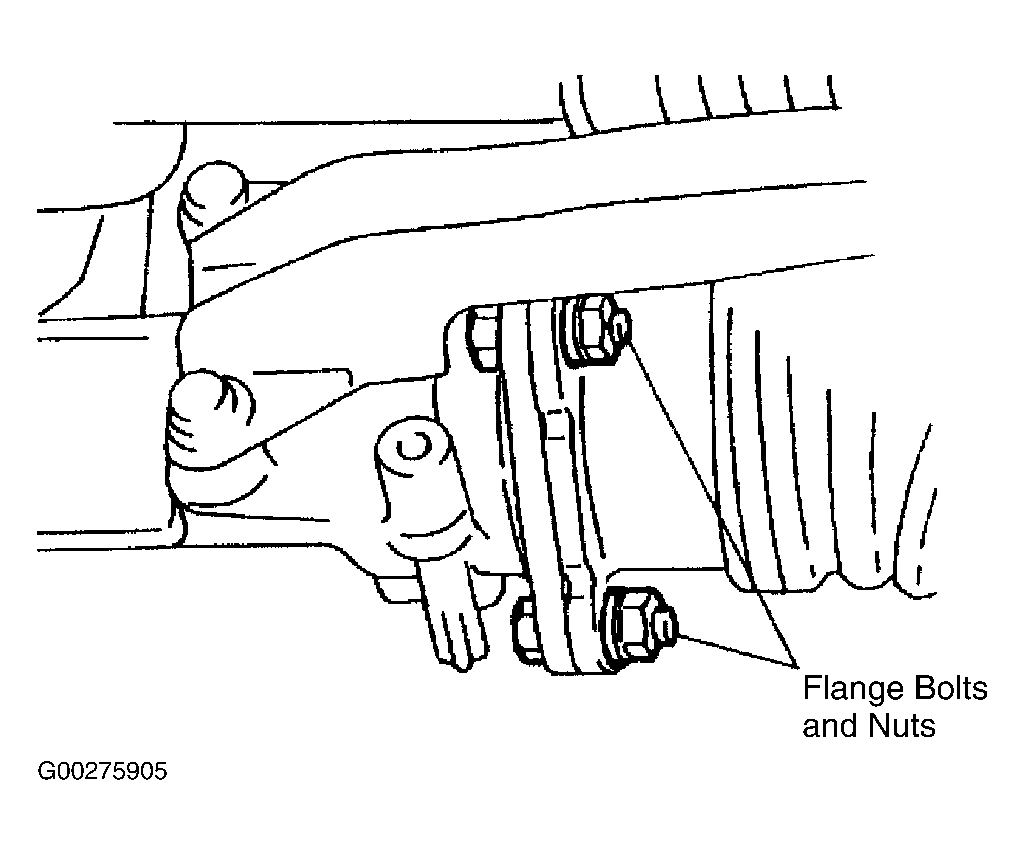

Fig 2: Removing Axle Shaft Flange Bolts & Nuts
G00275905Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: Removing Axle Shaft From Case
G00311471Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: Removing Axle Shaft Oil Seal
G00311472Courtesy of SUZUKI OF AMERICA CORP.
