Removal & Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Suzuki XL-7, 2004 Suzuki Vitara, 2004 Suzuki Grand Vitara, 2003 Suzuki XL-7, and 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

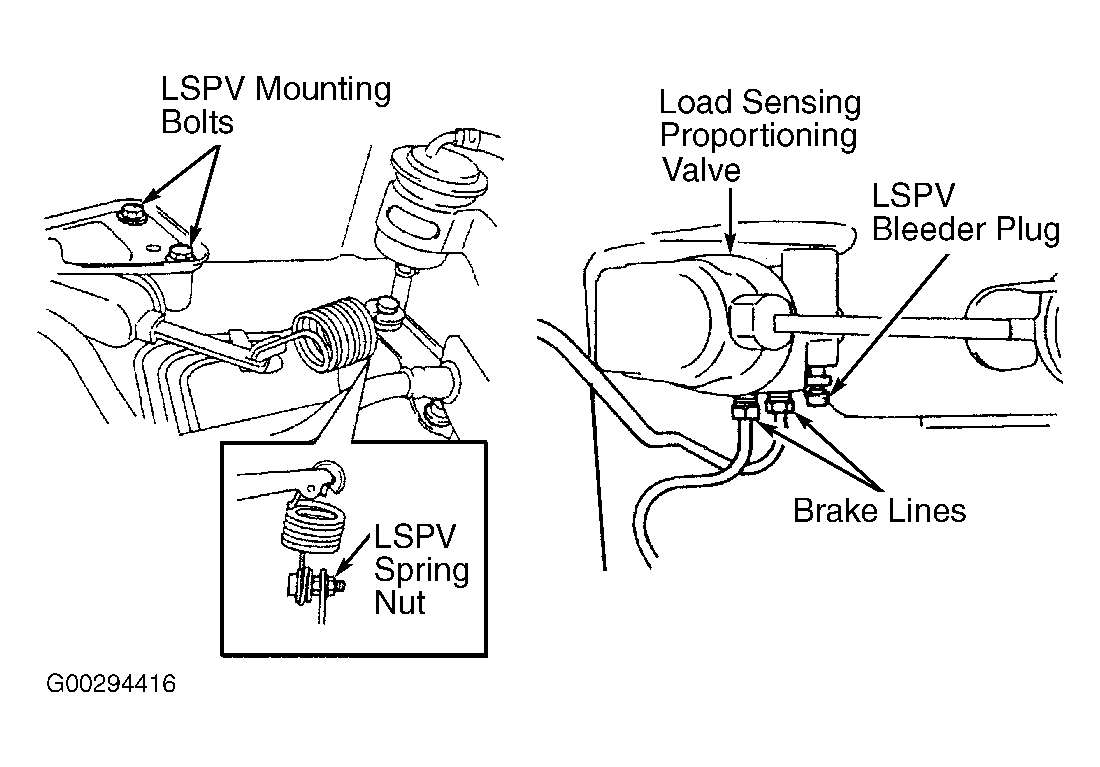

- Raise and support vehicle. Disconnect and plug brake lines from LSPV. See Fig 1. Remove LSPV together with spring. Remove spring from lever.
- To install, reverse removal procedure. Apply multipurpose grease to upper and lower joints of coil spring. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Bleed brake system. See BLEEDING BRAKE SYSTEM . Adjust LSPV. See LOAD SENSING PROPORTIONING VALVE (GRAND VITARA, VITARA & XL-7 WITHOUT ABS) under ADJUSTMENTS.
