Grand Vitara & Vitara

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Suzuki XL-7, 2004 Suzuki Vitara, 2004 Suzuki Grand Vitara, 2003 Suzuki XL-7, and 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove master cylinder from vehicle and separate reservoir from master cylinder. See MASTER CYLINDER and MASTER CYLINDER RESERVOIR under REMOVAL & INSTALLATION.
Remove circlip. See Fig 1. On ABS vehicles, carefully pull out primary piston, then carefully pull out secondary piston. On non-ABS vehicles, remove piston stopper bolt and carefully apply air at stopper bolt hole to remove secondary piston.
To install, reverse removal procedure. On non-ABS vehicles, install piston stopper bolt after all components and circlip have been installed.

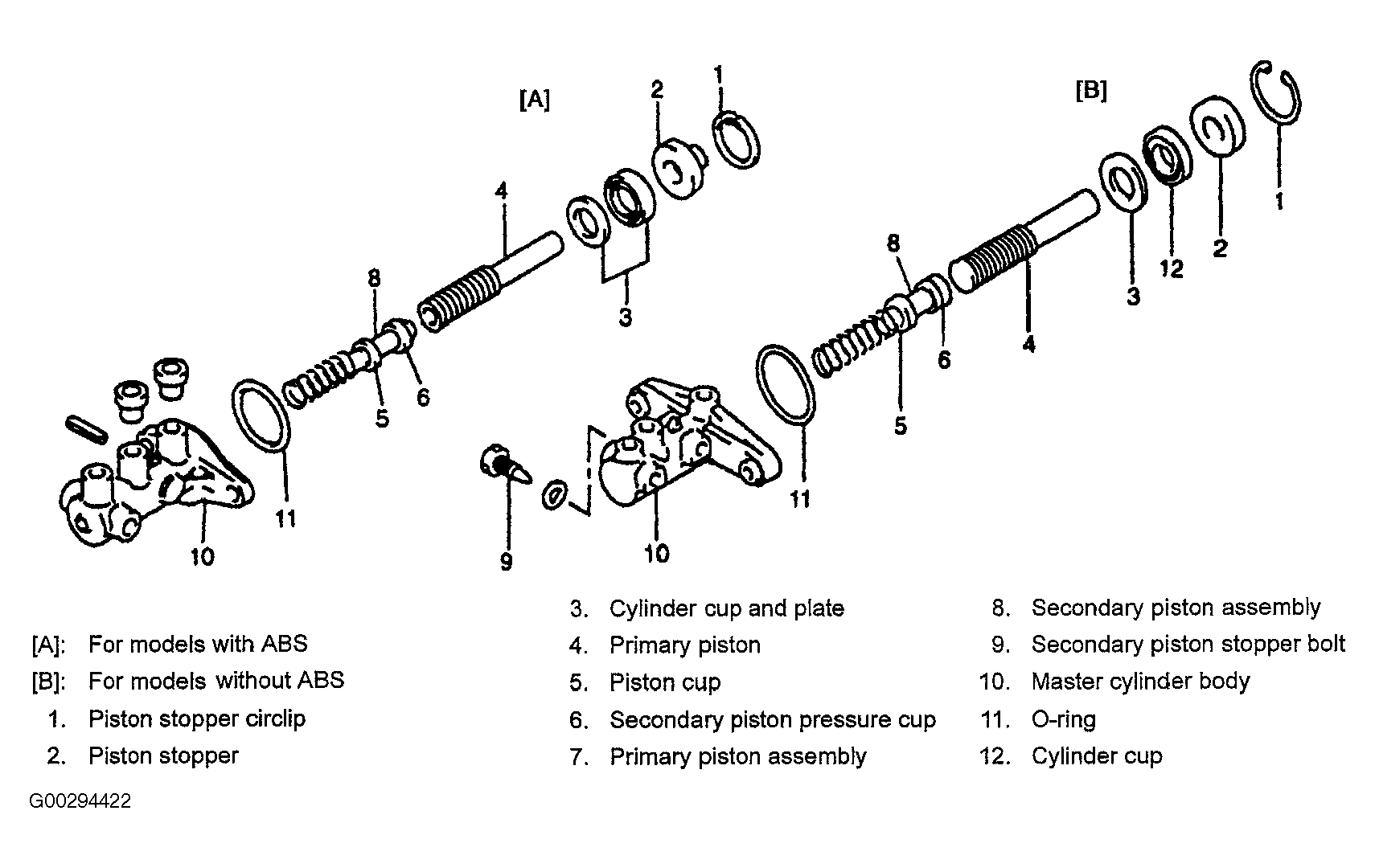

Fig 1: Identifying Master Cylinder Components (Grand Vitara & Vitara)

Courtesy of SUZUKI OF AMERICA CORP.
