Load Sensing Proportioning Valve (Without Abs): Adjustment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Suzuki XL-7, 2004 Suzuki Vitara, 2004 Suzuki Grand Vitara, 2003 Suzuki XL-7, and 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

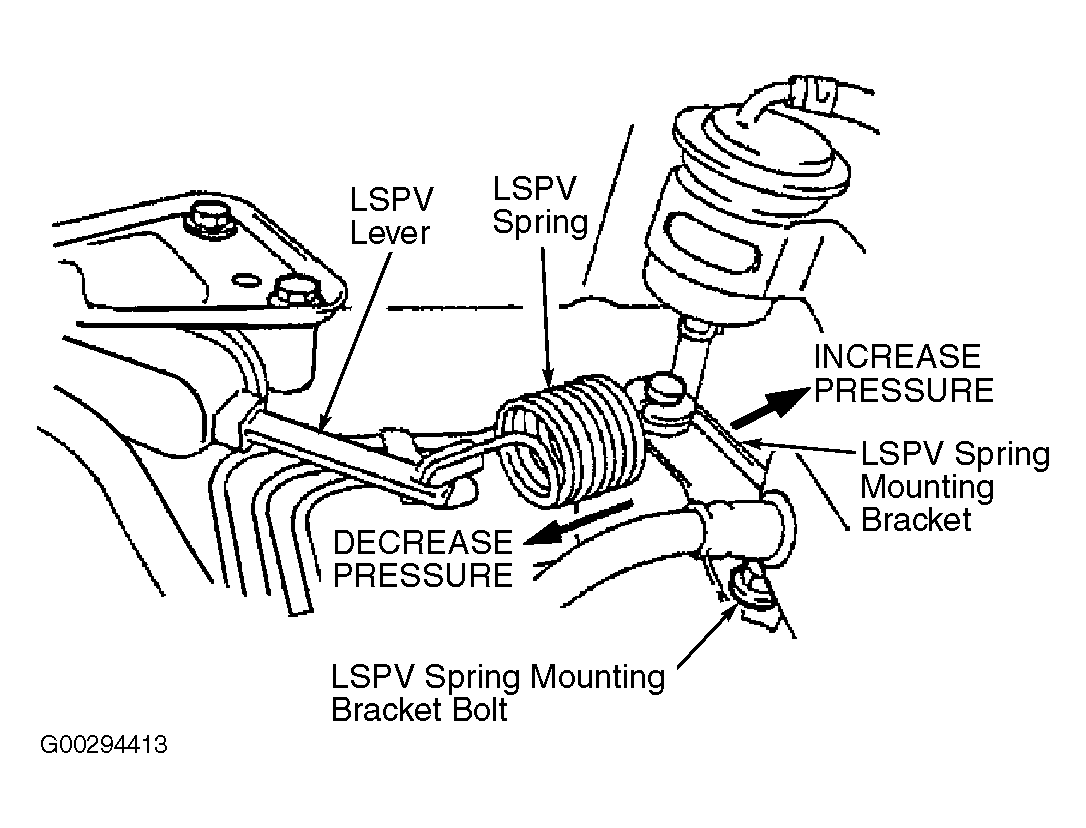

If rear brake pressure is not within specification, loosen LSPV spring mounting bolt and move LSPV spring mounting bracket closer to LSPV to decrease pressure and farther away from LSPV to increase pressure. See Fig 1. Tighten LSPV spring mounting bracket bolt to specification. See TORQUE SPECIFICATIONS .
