Removal (70A)

WARNING: This page is about a different car, the 2003 Suzuki XL-7, 2003 Suzuki Vitara, and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable at battery.
  2. Loosen generator adjusting bolt (1) and pivot bolt (2). See Fig 1.
  3. Slacken belt by displacing fan pulley.
  4. Remove cooling fan. Just detach the fan/clutch from fan pulley.
  5. Remove cooling fan belt (3).

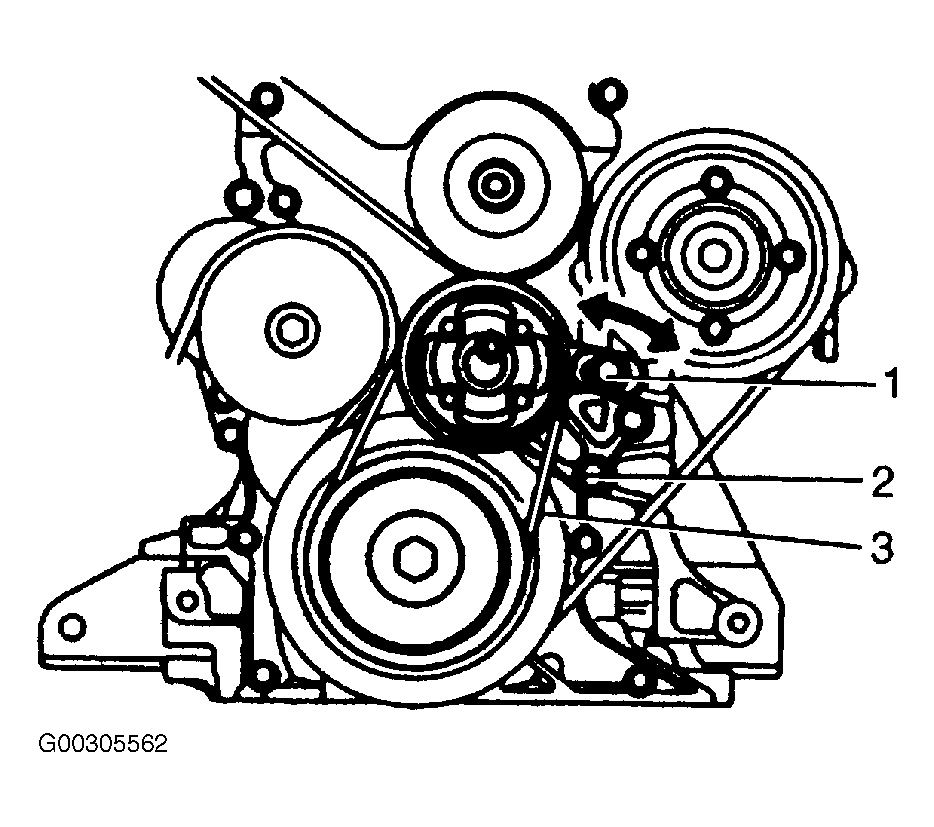

Fig 1: Removing/Installing Cooling Fan (70A)
G00305562Courtesy of SUZUKI OF AMERICA CORP.
