Turning Angle Inspection
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2003 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

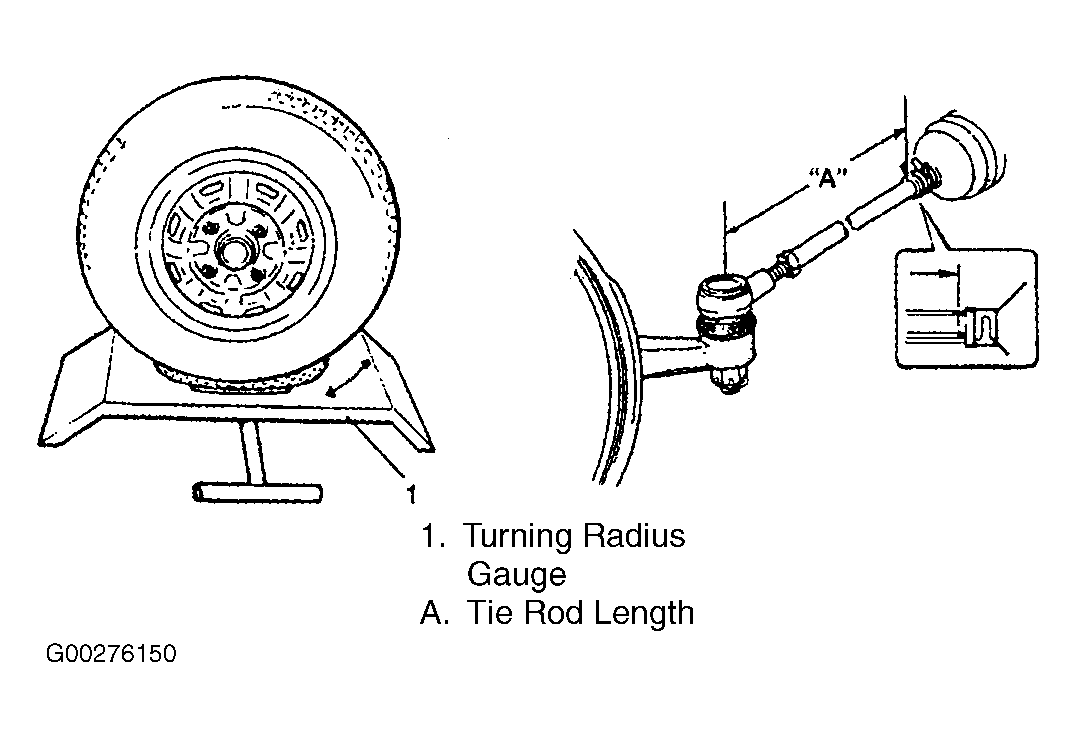

Check turning angle with turning radius gauge. See Fig 1. If turning angle is not correct, check if right and left tie rods are equal in length. Make any necessary adjustments. If tie rods lengths are changed during adjustment, re-check toe-in measurement. See TOE-IN ADJUSTMENT .
