Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis and repair, see Fig 1 , Fig 2 and Fig 3 .

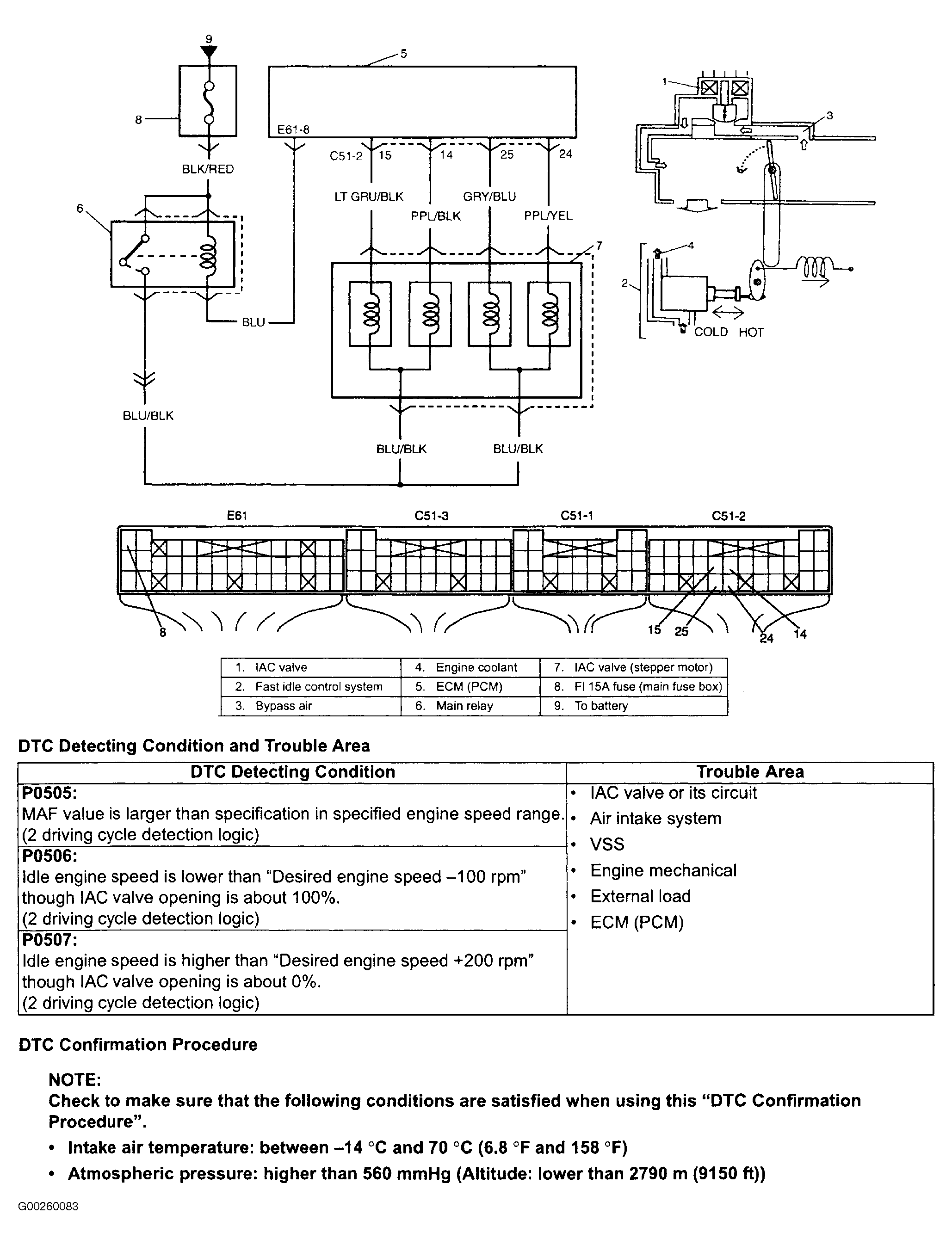

Fig 1: DTC P0505/P0506/P0507 Diagnostic Procedure (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: DTC P0505/P0506/P0507 Diagnostic Procedure (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: DTC P0505/P0506/P0507 Diagnostic Procedure (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
