Right (No. 2) Bank 2ND Timing Chain & Chain TENSIONER: Removal

WARNING: This page is about a different car, the 2003 Suzuki Grand Vitara and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove left bank 2nd timing chain. See LEFT (NO. 1) BANK 2ND TIMING CHAIN & CHAIN TENSIONER . Remove 1st timing chain. See 1ST TIMING CHAIN & CHAIN TENSIONER . Remove timing chain guide No. 3.
Remove camshaft bearing cap bolts in sequence. See Figure. Remove camshaft bearing caps. Remove right bank intake camshaft, exhaust camshaft and 2nd timing chain. Remove timing chain tensioner adjuster No. 2. See Fig 1.

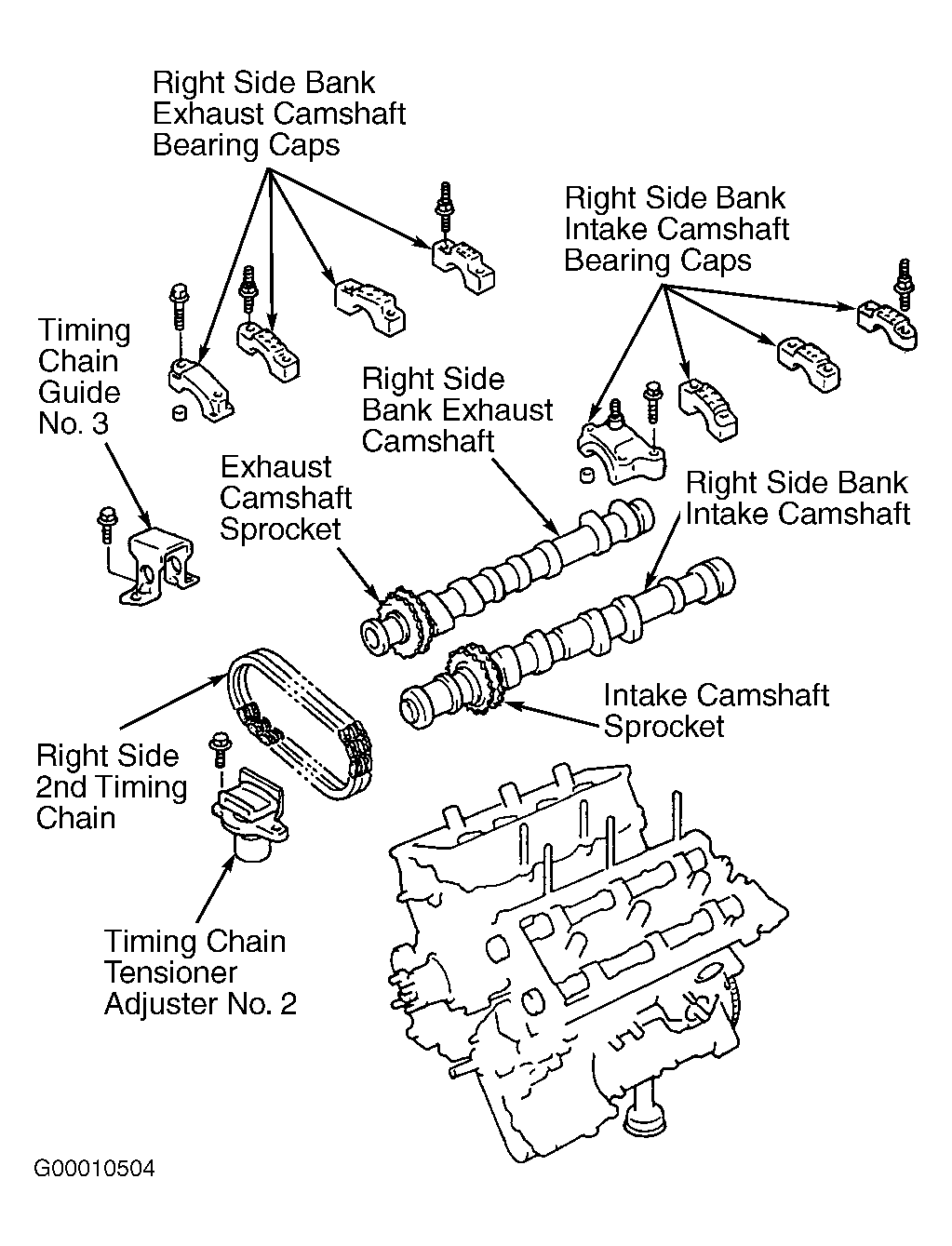

Fig 1: Exploded View Of Right Timing Chain & Camshafts
Courtesy of SUZUKI OF AMERICA CORP.
