Right (No. 2) Bank 2ND Timing Chain & Chain TENSIONER: Installation

WARNING: This page is about a different car, the 2003 Suzuki Grand Vitara and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Align crankshaft timing mark. See Figure. Install timing chain tensioner adjuster No. 2. Install right bank intake and exhaust camshafts.
Install right 2nd timing chain. Ensure Yellow or Silver links of right bank 2nd timing chain aligns with match marks on right bank 2nd timing chain intake and exhaust camshaft sprockets. See Fig 1.
Install camshaft bearing caps in proper direction. See Fig 2. Tighten camshaft housing bolts in proper sequence. See Fig 3. SeeTORQUE SPECIFICATIONS .
Install timing chain guide No. 3. To complete installation, reverse removal procedure.

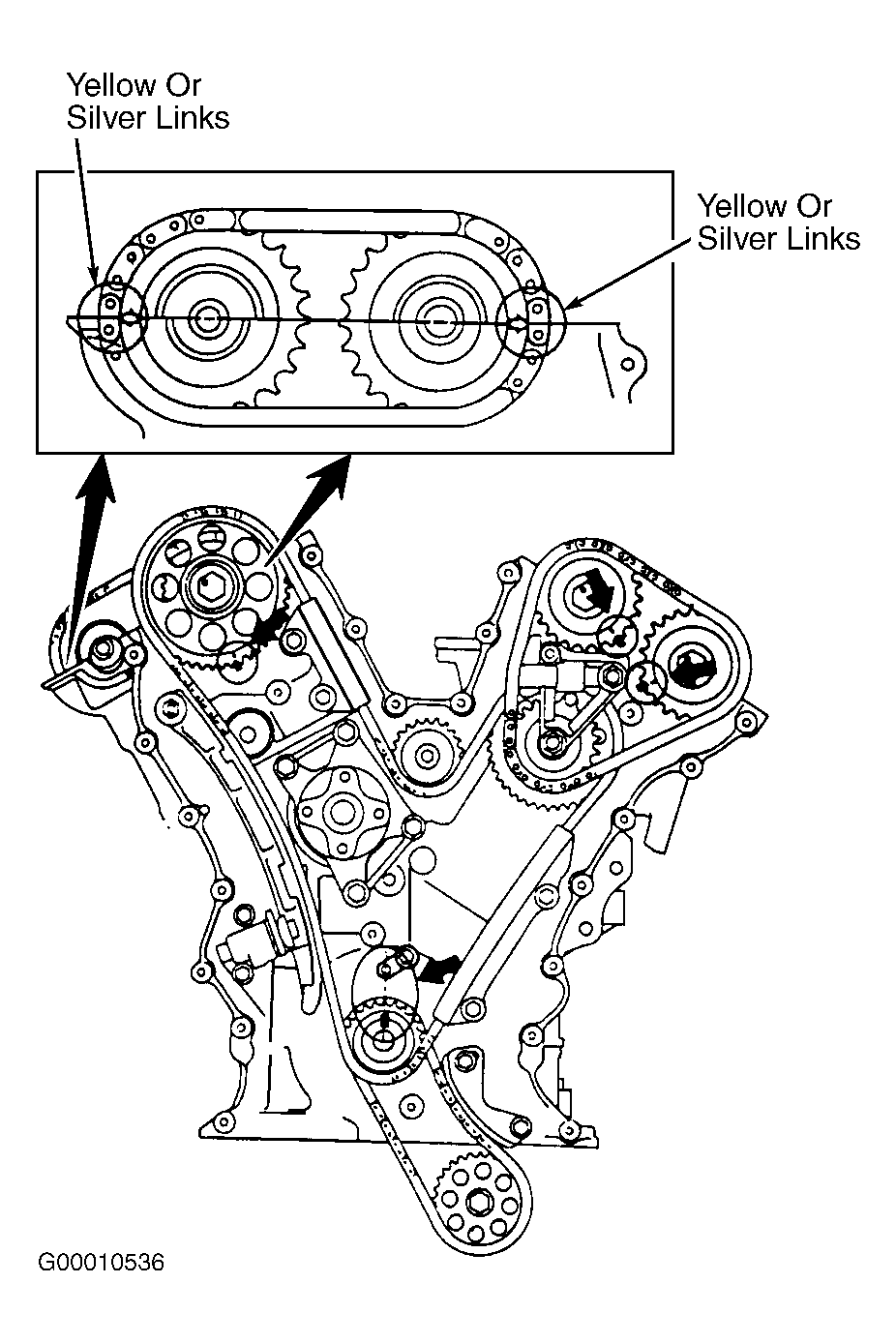

Fig 1: Aligning Right Bank Timing Chain & Camshaft Sprockets Marks
Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Installing Right Camshaft Bearing Caps
Courtesy of SUZUKI OF AMERICA CORP.

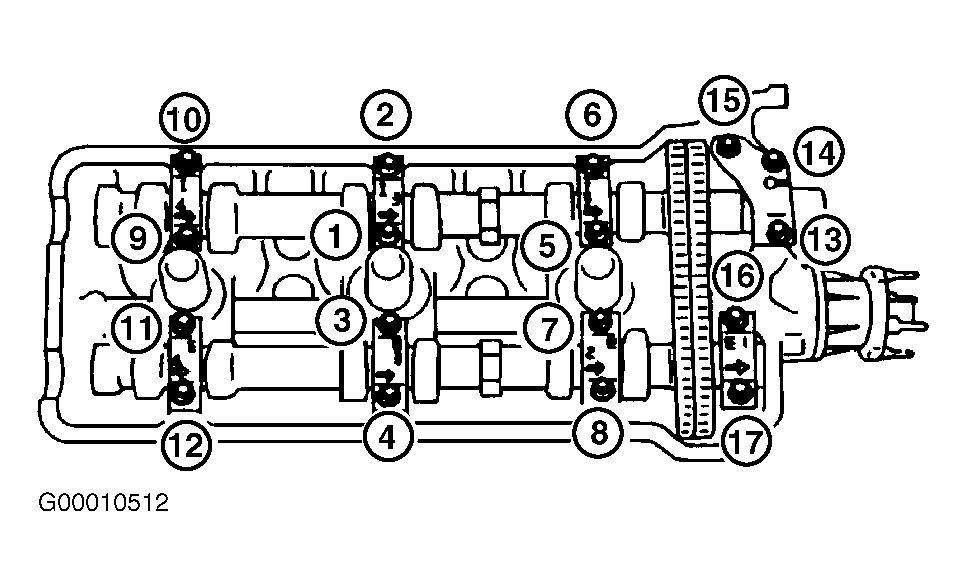

Fig 3: Right Camshaft Bearing Cap Tightening Sequence
Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Left Camshaft Bearing Cap Tightening Sequence
Courtesy of SUZUKI OF AMERICA CORP.
