Left (No. 1) Bank 2ND Timing Chain & Chain TENSIONER: Removal

WARNING: This page is about a different car, the 2003 Suzuki Grand Vitara and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. Drain engine oil and coolant. Remove timing chain cover. See TIMING CHAIN COVER & FRONT OIL SEAL .
Position crankshaft key mark to match mark on block. Position arrow mark on idler sprocket No. 2 so it points to crankshaft center. Align match marks on intake and exhaust camshafts to marks on cylinder head. See Fig 1.

CAUTION: Removing sprockets from camshaft may cause camshaft to turn, resulting in damage to valve and piston. To prevent this, hold camshaft stationary by using a spanner at its hexagonal part, when removing sprocket.

Fig 1: Aligning Marks For Left Bank 2nd Timing Chain

Courtesy of SUZUKI OF AMERICA CORP.

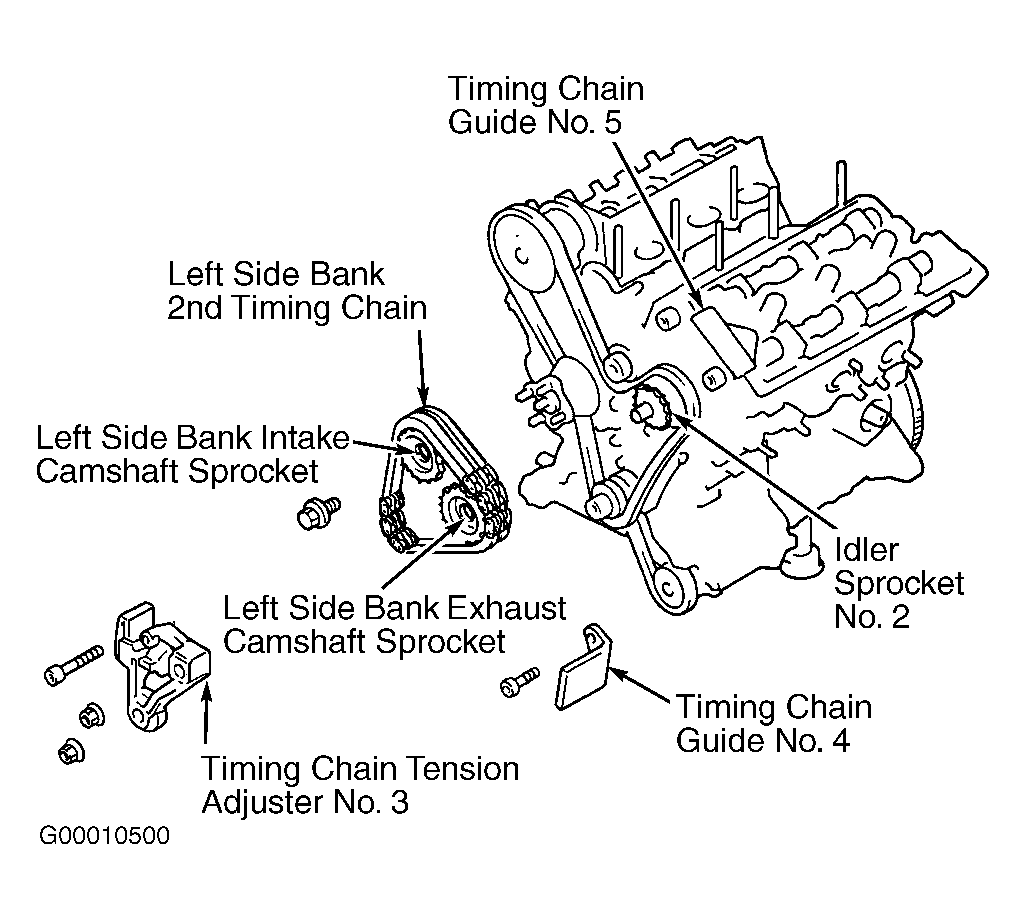

Fig 2: Removing Left Bank 2nd Timing Chain

Courtesy of SUZUKI OF AMERICA CORP.

Remove timing chain tensioner adjuster No. 3. Remove timing chain guides No. 4 and No. 5. Remove left bank intake and exhaust camshaft sprocket bolts. Remove intake and exhaust camshaft sprockets. Remove left bank 2nd timing chain. See Fig 2.
