Throttle Position (TP) Sensor: Installation

WARNING: This page is about a different car, the 2003 Suzuki XL-7, 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Place TP sensor onto the throttle body so that the sensor pickup lever (2) can engage the throttle body lever (1). See Figure . Hand-tighten the TP sensor screws. Connect coupler securely to sensor. Connect the negative cable to the battery. Adjust the TP sensor's installation angle as outlined in Fig 1 .

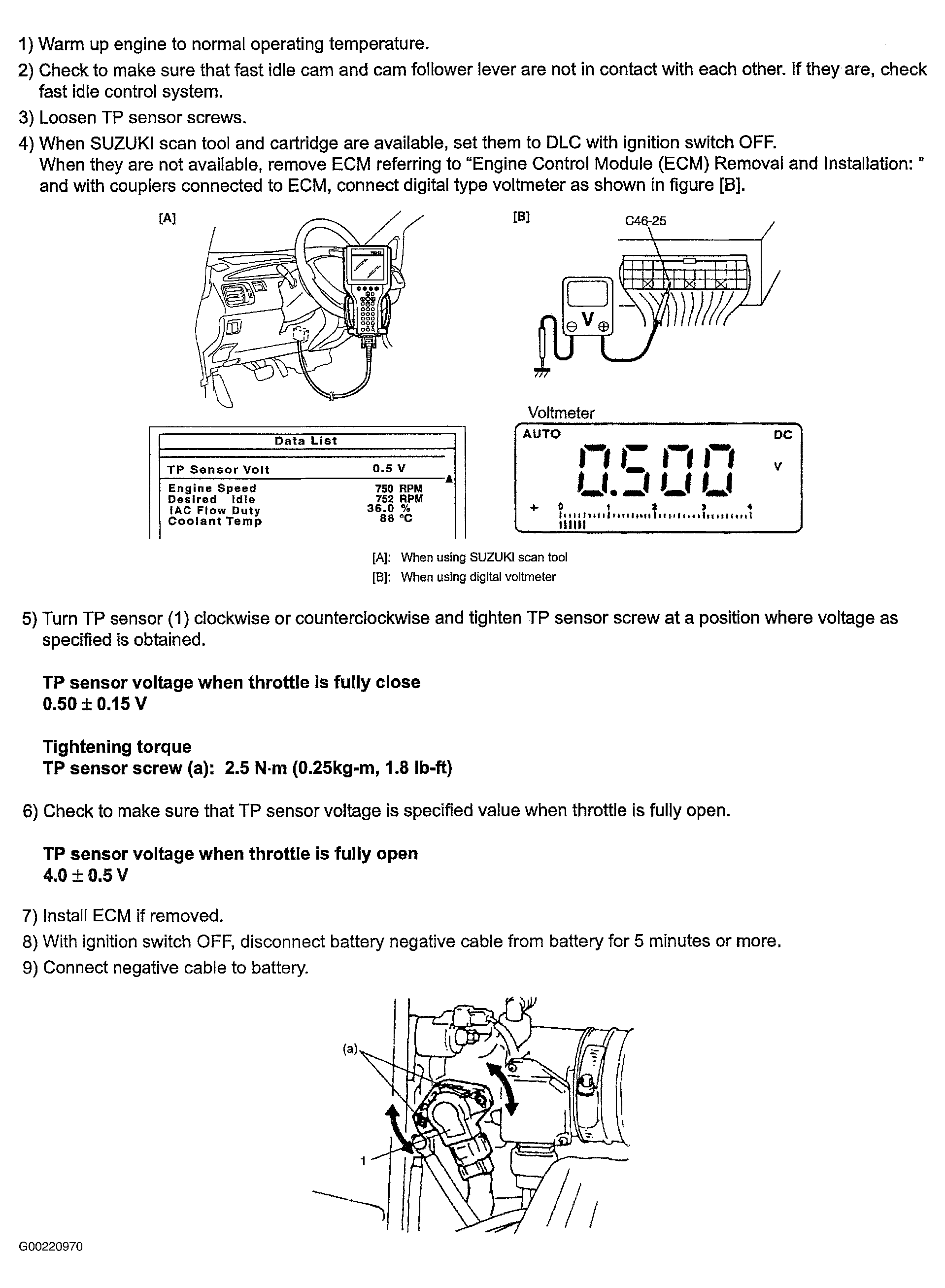

Fig 1: Adjusting Throttle Position Sensor (Aerio)
G00220970Courtesy of SUZUKI OF AMERICA CORP.


  1. To install sensor, place it onto throttle body so that sensor pickup lever (2) can engage with throttle body lever (1). "A" should engage with "B". See Fig 1 .
  2. Hand-tighten TP sensor screws.
  3. Connect connector to TP sensor securely.
  4. Connect battery negative cable to battery.
  5. Adjust installation angle of TP sensor according to procedure described in THROTTLE POSITION SENSOR .

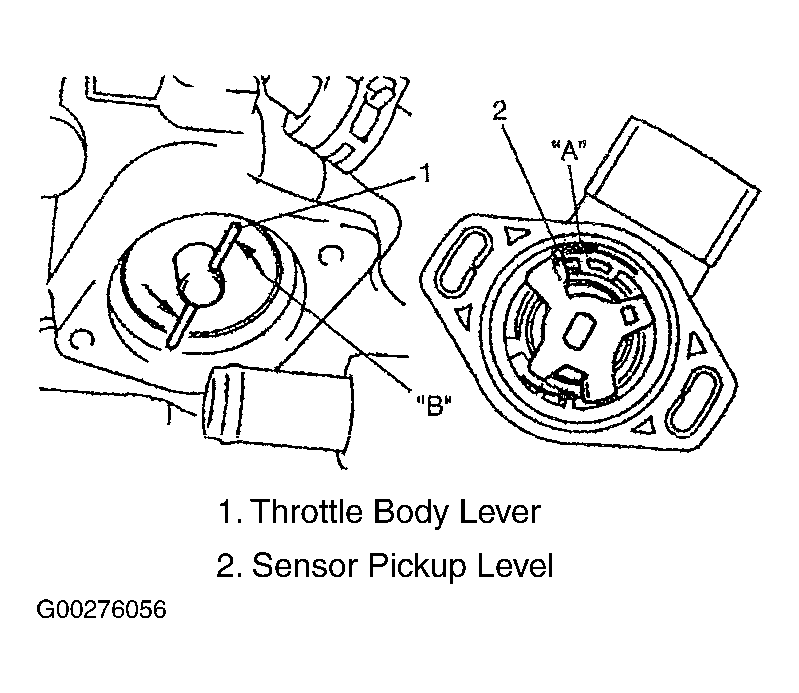

Fig 1: Installing Throttle Position (TP) Sensor (Grand Vitara)
G00276056Courtesy of SUZUKI OF AMERICA CORP.


  1. Install TP sensor (1) to throttle body (2). Fit TP sensor (1) to throttle body (2) in such way that its holes are a little away from TP sensor screw: holes as shown in figure and turn TP sensor (1) clockwise so that those holes align. See Fig 1 and TORQUE SPECIFICATIONS  .
  2. Connect coupler to TP sensor (1) securely. See Fig 1 .
  3. Connect battery negative cable to battery.
Fig 1: Installing Throttle Position (TP) Sensor (Votary)

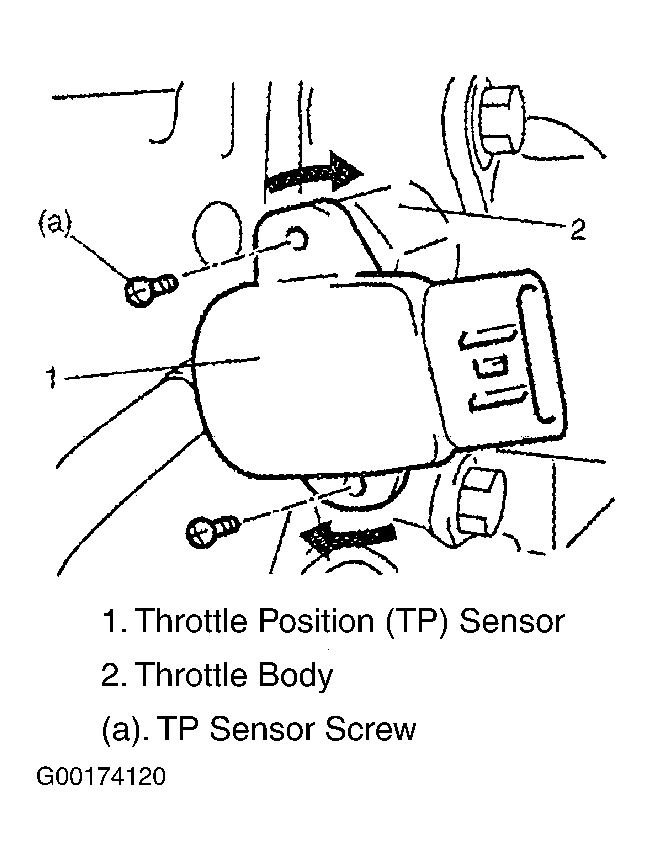

G00174120Courtesy of SUZUKI OF AMERICA CORP.


  1. Install TP sensor (1) to throttle body (2). Fit TP sensor (1) to throttle body (2) in such way that its holes are a little away from TP sensor screw holes as shown in the figure and turn TP sensor (1) clockwise so that those holes align. See Fig 1 and TORQUE SPECIFICATIONS  .
  2. Connect coupler to TP sensor (1) securely.
  3. Connect battery negative cable (-) to battery.
Fig 1: Installing Throttle Position (TP) Sensor (XL-7)
G00276057Courtesy of SUZUKI OF AMERICA CORP.
