Mass Air Flow (MAF) Sensor: Installation

WARNING: This page is about a different car, the 2003 Suzuki XL-7, 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Check MAF sensor seal (1) for deterioration and damage. See Fig 3 .
Install MAF sensor to air cleaner case.
Install air cleaner outlet hose.
Connect MAF sensor coupler securely.
Connect battery negative cable to battery.

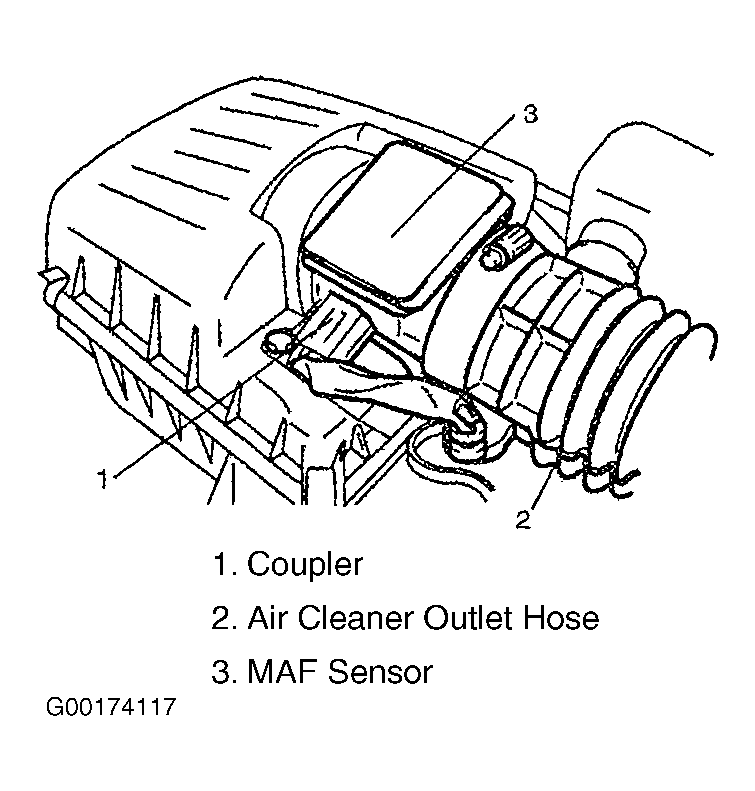

Fig 1: Identifying Mass Air Flow (MAF) Sensor (Vitara)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Removing Mass Air Flow (MAF) Sensor (Vitara)

Courtesy of SUZUKI OF AMERICA CORP.

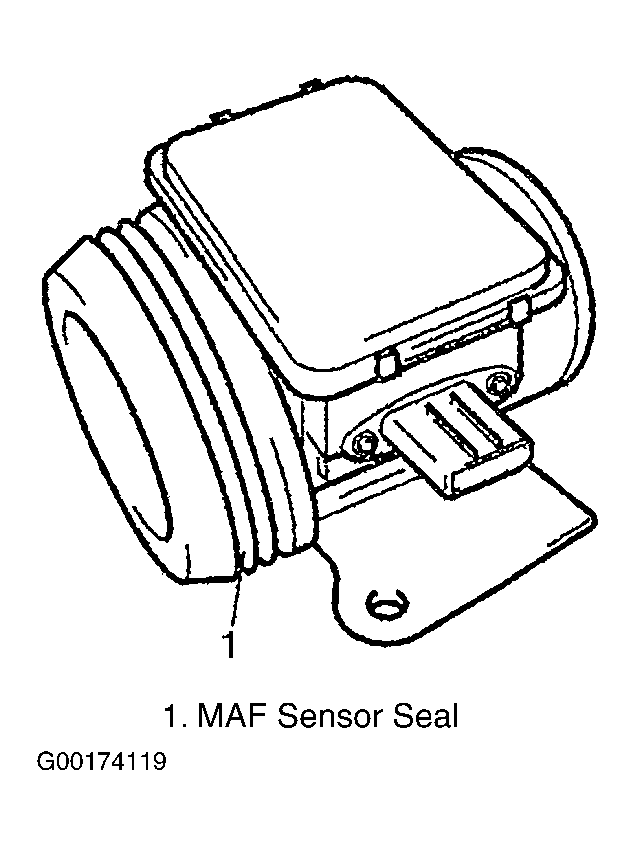

Fig 3: Identifying Mass Air Flow (MAF) Sensor Seal (Vitara)

Courtesy of SUZUKI OF AMERICA CORP.

Install throttle body, referring to THROTTLE BODY .
