Intake Air Temperature (IAT) Sensor: Installation

WARNING: This page is about a different car, the 2003 Suzuki XL-7, 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure noting the following:
- Clean mating surface of IAT sensor and air cleaner case.
- Connect sensor coupler securely.

Fig 1: Identifying Intake Air Temperature Sensor (Aerio)

Courtesy of SUZUKI OF AMERICA CORP.

Clean mating surface of sensor and seal on air cleaner case.
Install IAT sensor (1) into seal (2). See Fig 1 .
Connect connector to IAT sensor (1) securely. See Fig 1 .

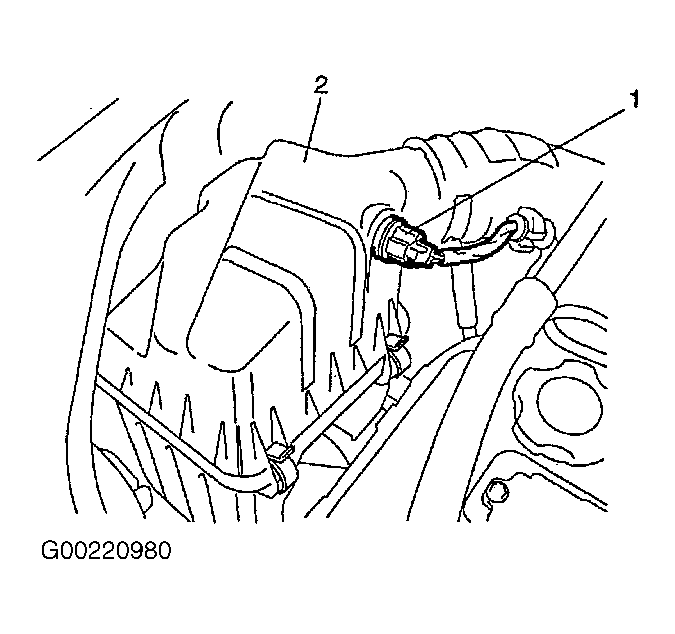

Fig 1: Identifying Intake Air Temperature (IAT) Sensor (Grand Vitara, Vitara & XL-7)

Courtesy of SUZUKI OF AMERICA CORP.
