Grand Vitara, Vitara & XL-7
WARNING: This page is about a different car, the 2003 Suzuki XL-7, 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

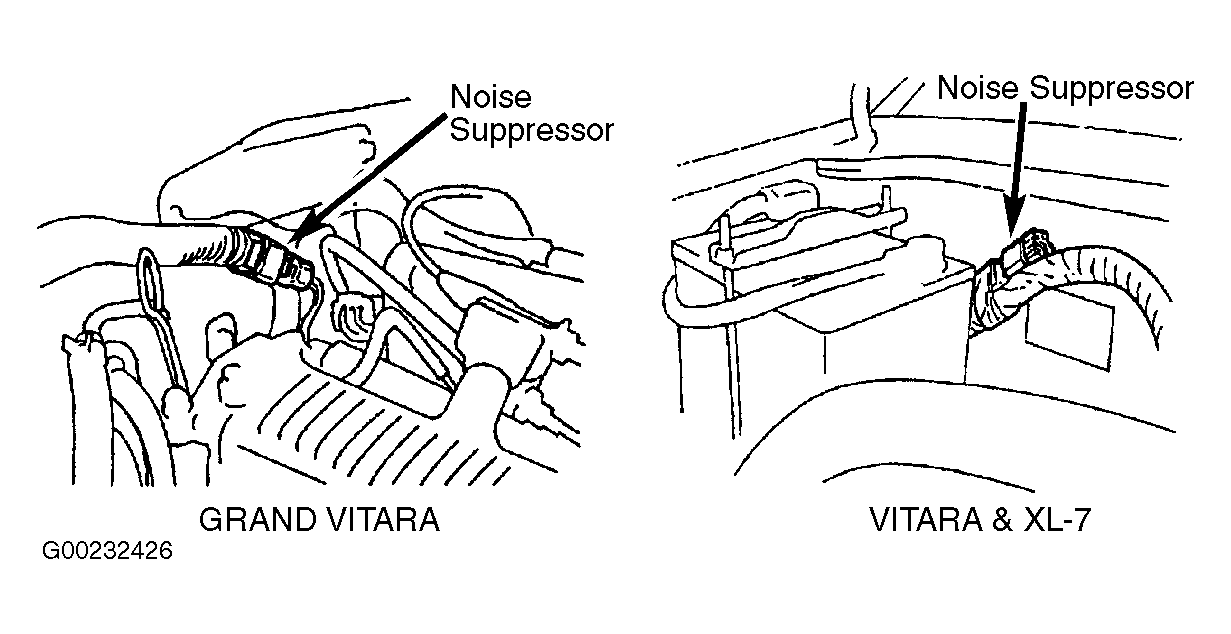

Disconnect harness connector from noise suppressor, taped to main engine wiring harness. See Fig 1
. Using DVOM, ensure continuity is not present between terminals "A" and "B". See Fig 2
. If test result is not within specification, replace noise suppressor.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
