Removal & Installation (Eclipse, Galant, Lancer & Montero)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

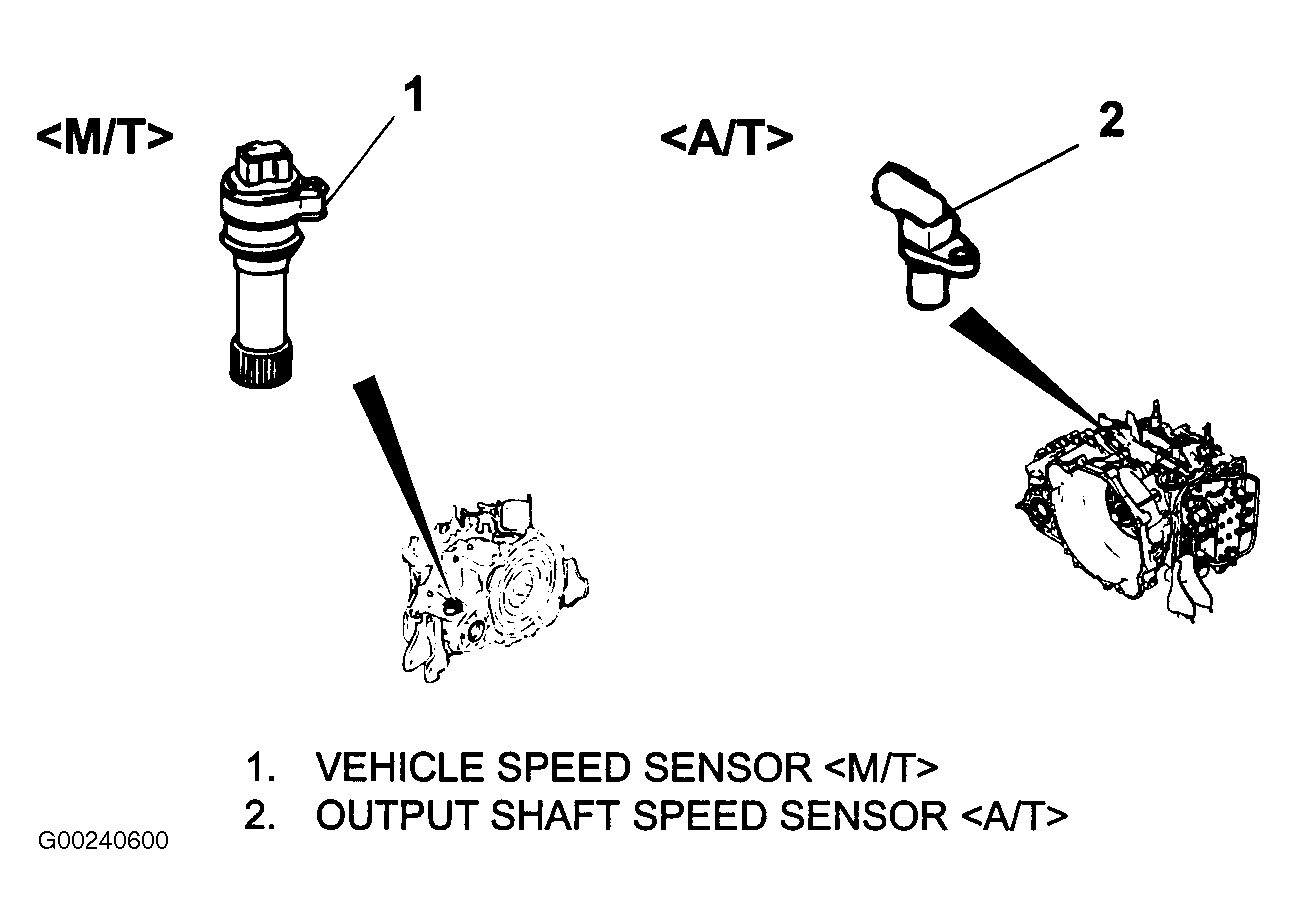

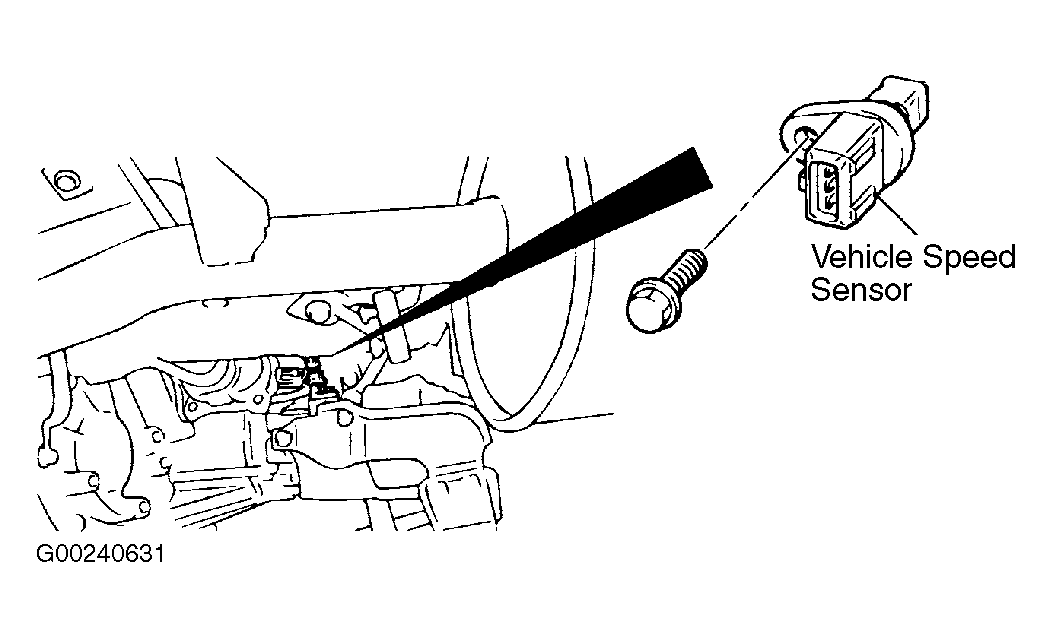

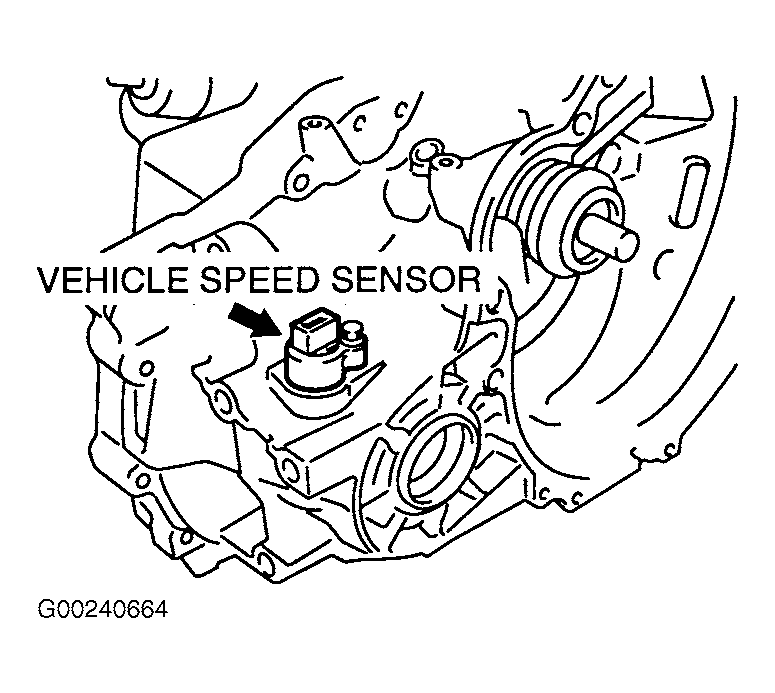

Vehicle speed sensor is used on Eclipse, Galant, and Lancer equipped with M/T. It is located on top of transaxle. See Figure, Fig 1 and Fig 2 . Remove bolts and remove vehicle speed sensor. To install, reverse removal procedure. Tighten vehicle speed sensor bolt to specification. See TORQUE SPECIFICATIONS .
