Eclipse 2.4L, Galant 2.4L, Lancer, Montero, Montero Sport & Outlander
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
- Power steering oil pressure switch is located on power steering pump. Raise and support front wheels. Disconnect power steering fluid return hose.
- Connect a vinyl hose to return hose, and drain oil into a container. See Figure. Disconnect ignition coil connectors and while operating starter motor intermittently, turn steering wheel all the way to left and right several times to drain all power steering fluid.

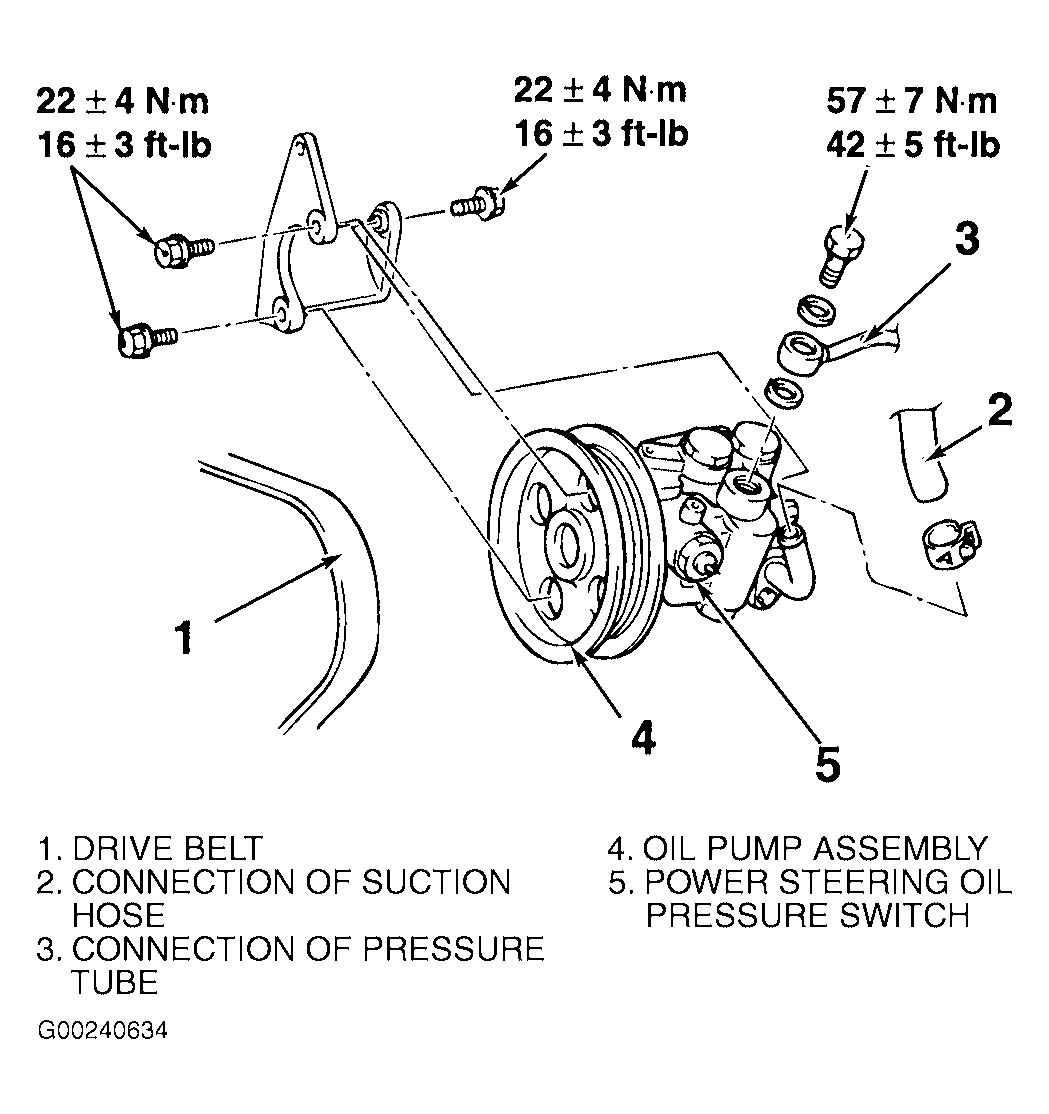

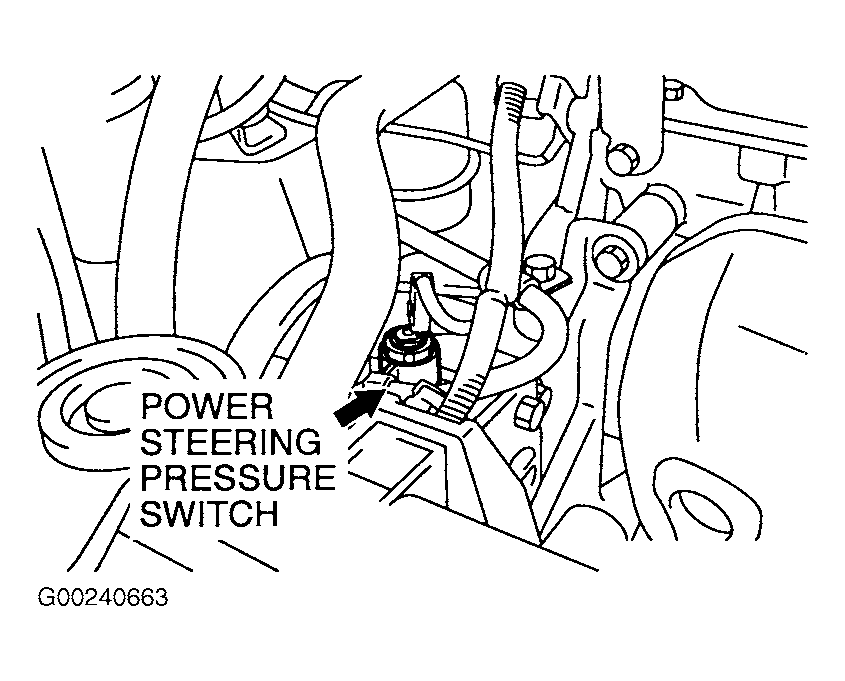

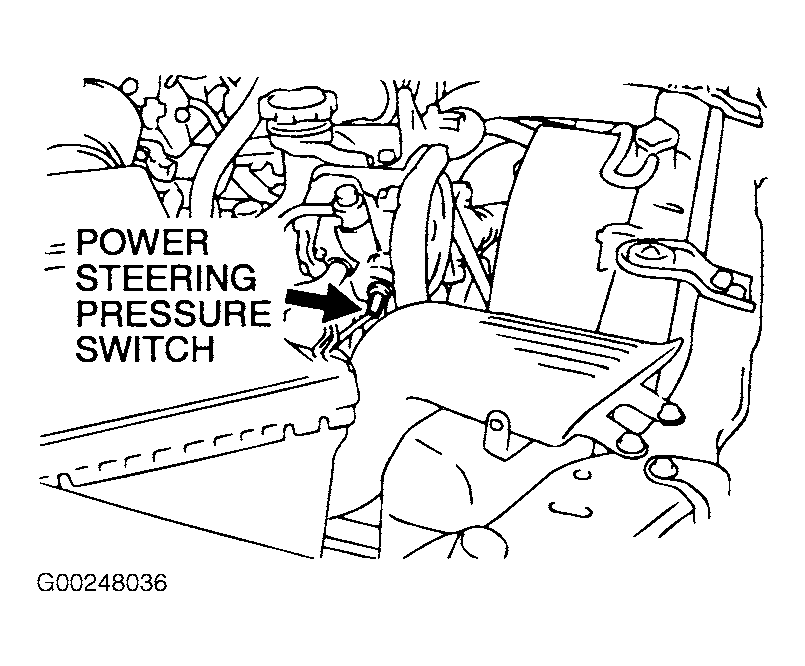

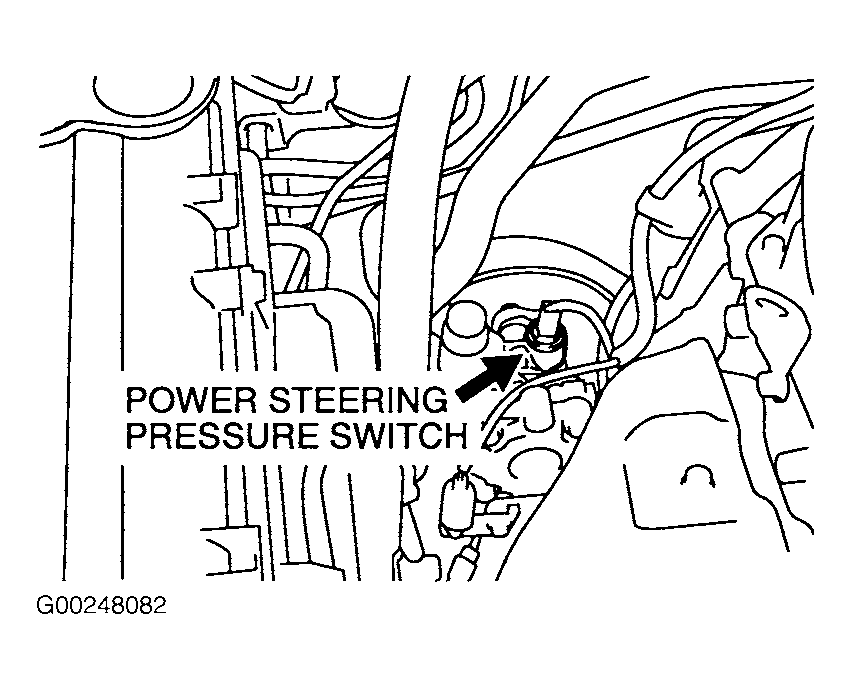

- Remove power steering oil pressure switch. See Figure, Fig 1-Fig 4 . To install, reverse removal procedure. Connect power steering return hoses securely, and secure them with clips.
- Fill oil reservoir with specified fluid up to lower position of filter, and bleed air from system. See POWER STEERING SYSTEM BLEEDING under POWER STEERING SYSTEM. Tighten power steering oil pressure switch specification. See TORQUE SPECIFICATIONS .
