Removal & Installation (Diamante, Eclipse, Galant & Lancer)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Output shaft speed sensor is used on models equipped with A/T. It is located on top of transaxle. See Fig 1-Fig 3 . Remove bolts and remove output shaft speed sensor. To install, reverse removal procedure. Tighten output shaft speed sensor bolt to specification. See TORQUE SPECIFICATIONS .

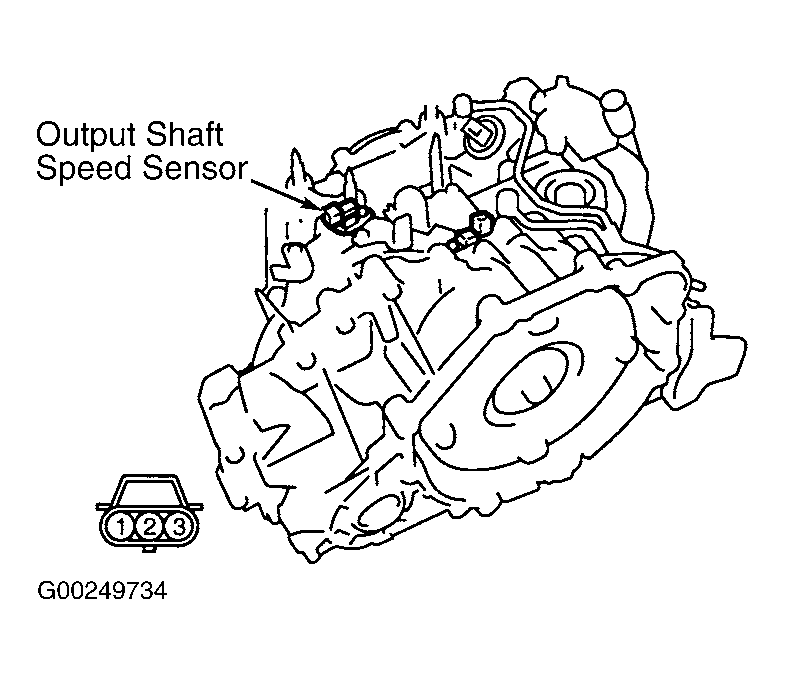

Fig 1: Removing Output Shaft Speed Sensor (Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

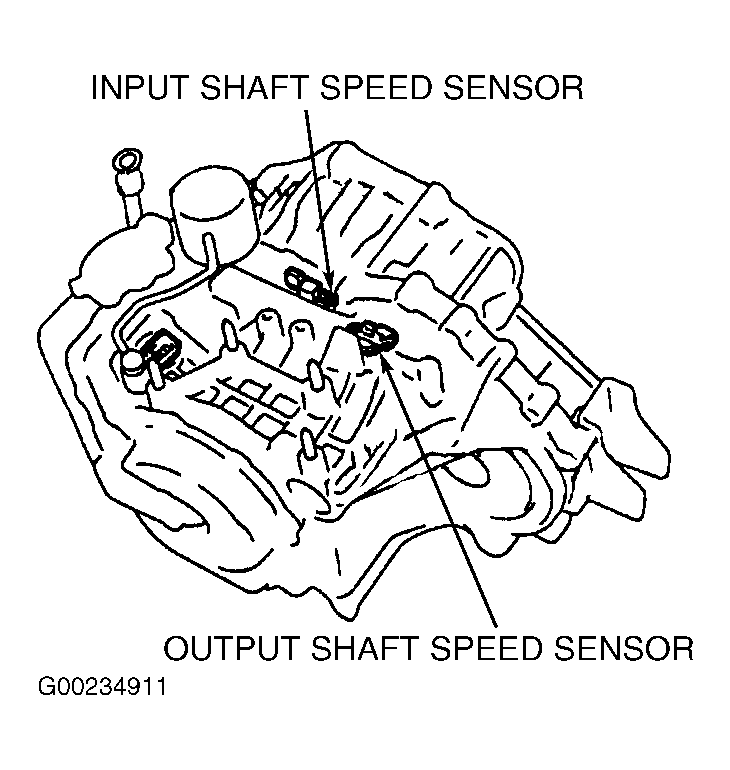

Fig 2: Removing Output Shaft Speed Sensor & Vehicle Speed Sensor (Eclipse & Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Removing Output Shaft Speed Sensor (Lancer)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
