Removal & Installation (Lancer)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Manifold differential pressure sensor is located on intake manifold, near throttle body. See Fig 1. To remove and install manifold differential pressure sensor, see Fig 2.

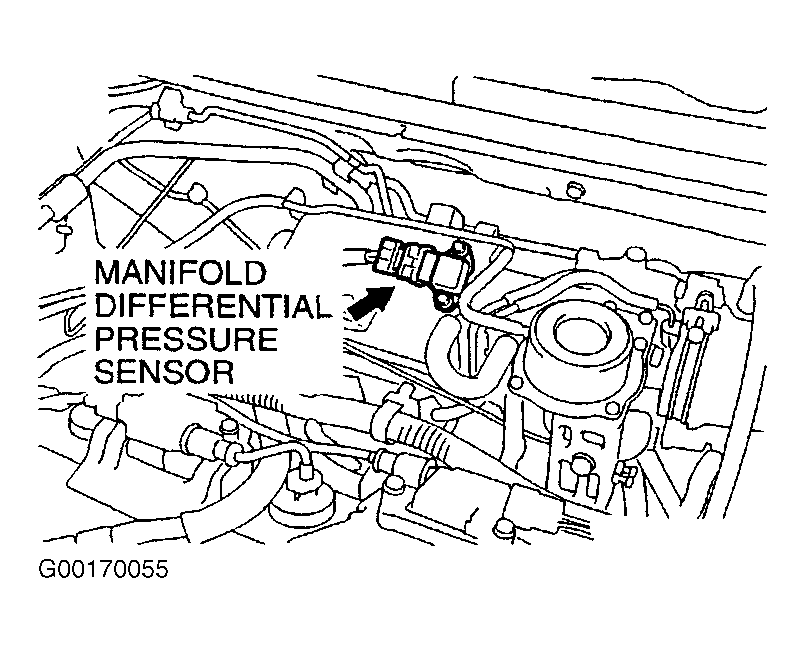

Fig 1: Locating Manifold Differential Pressure Sensor (Lancer)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Intake Manifold & Related Components (Lancer)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
