Installation (Diamante, Eclipse 3.0L, Galant 3.0L & Montero)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Install knock sensor using Knock Sensor Socket (MD998773). Tighten knock sensor to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

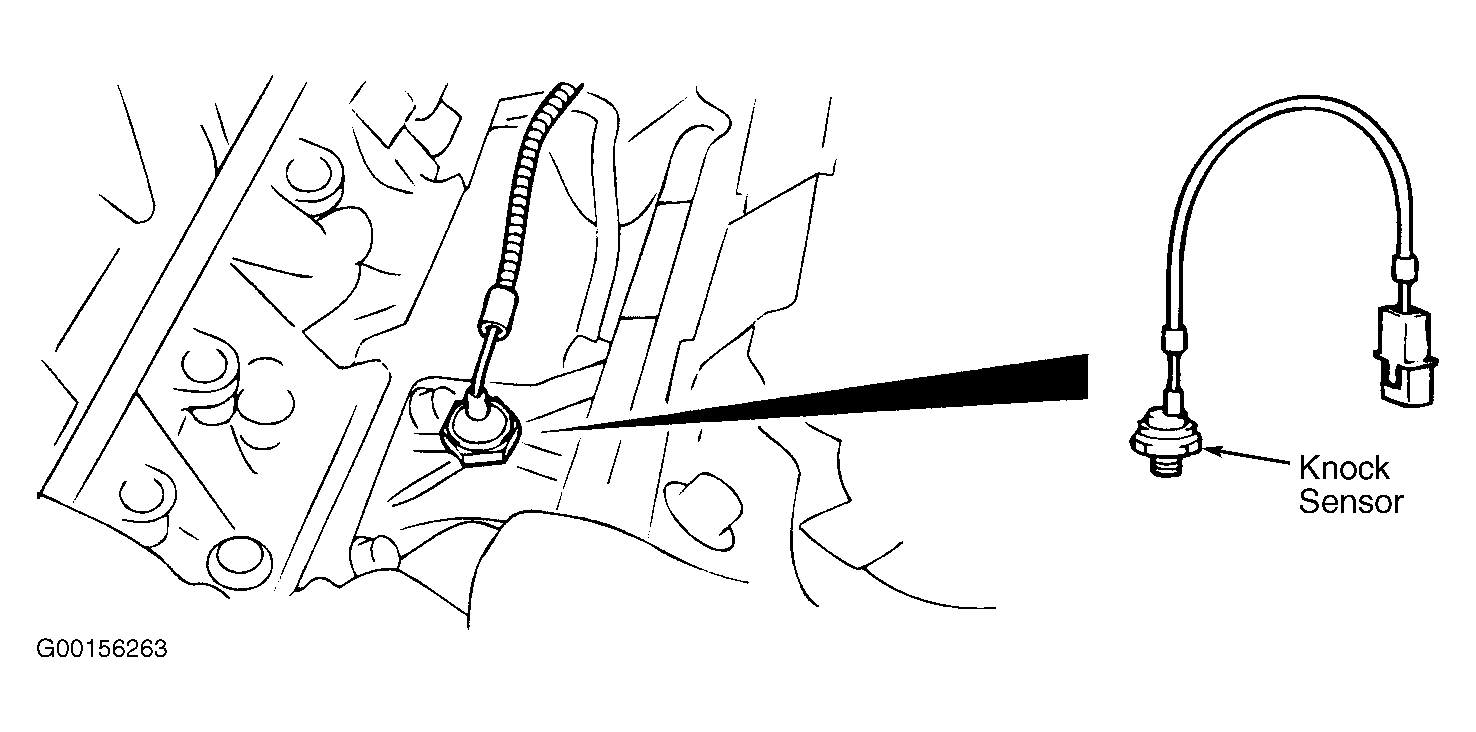

Fig 1: Locating Knock Sensor (Diamante, Eclipse 3.0L, Galant 3.0L & Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

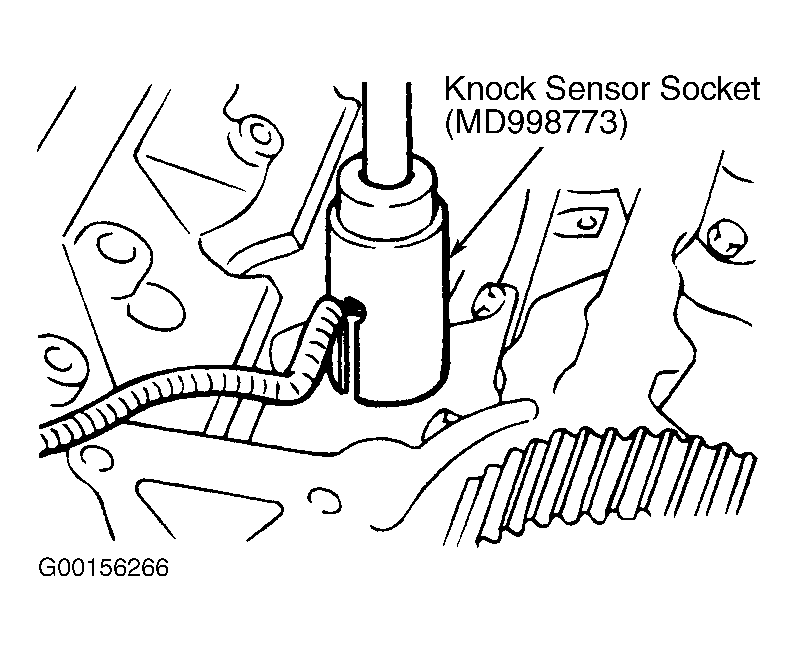

Fig 2: Removing Knock Sensor (Diamante, Eclipse 3.0L, Galant 3.0L & Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
