Removal & Installation (Eclipse 2.4L, Galant 2.4L & Lancer)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

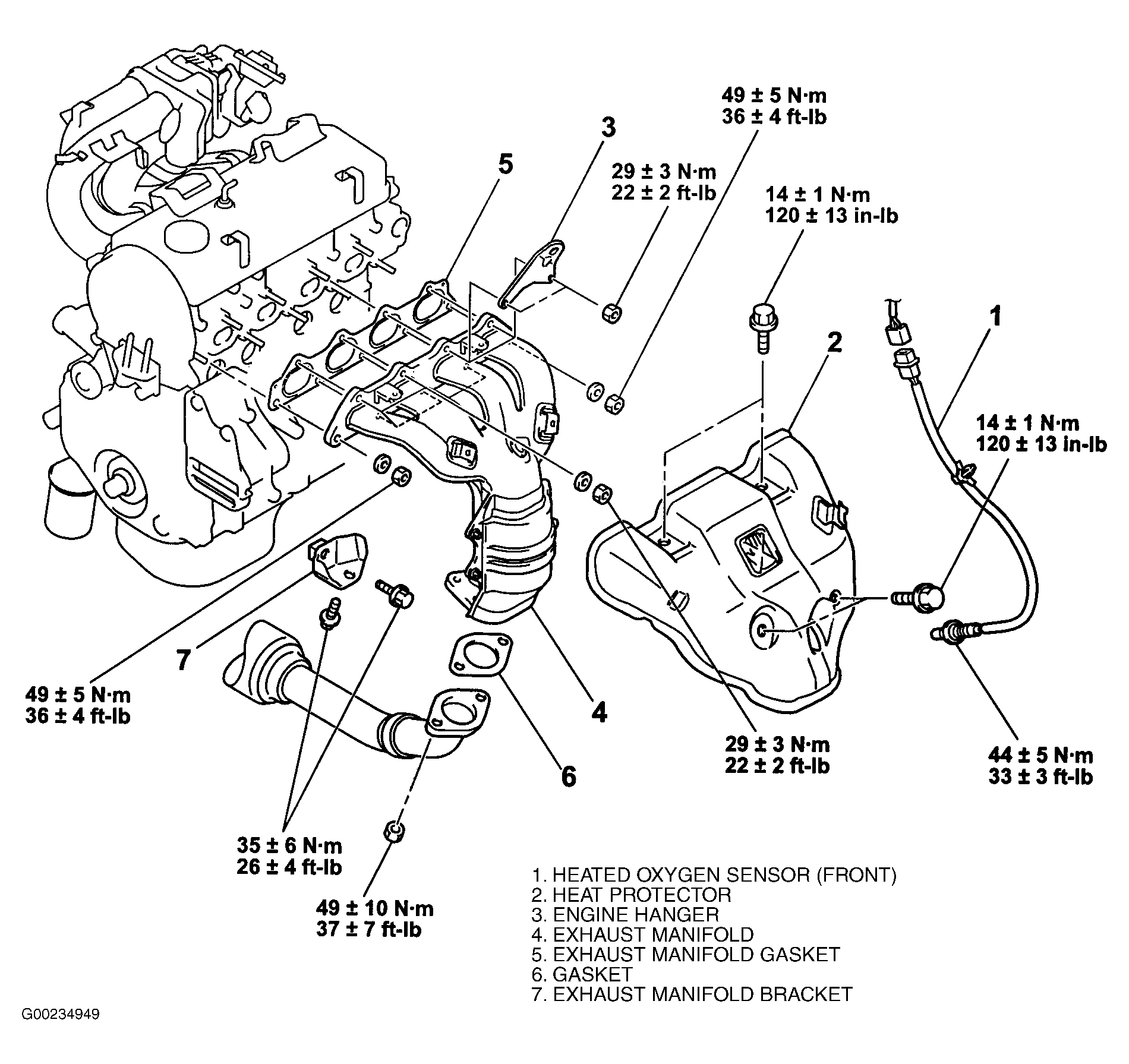

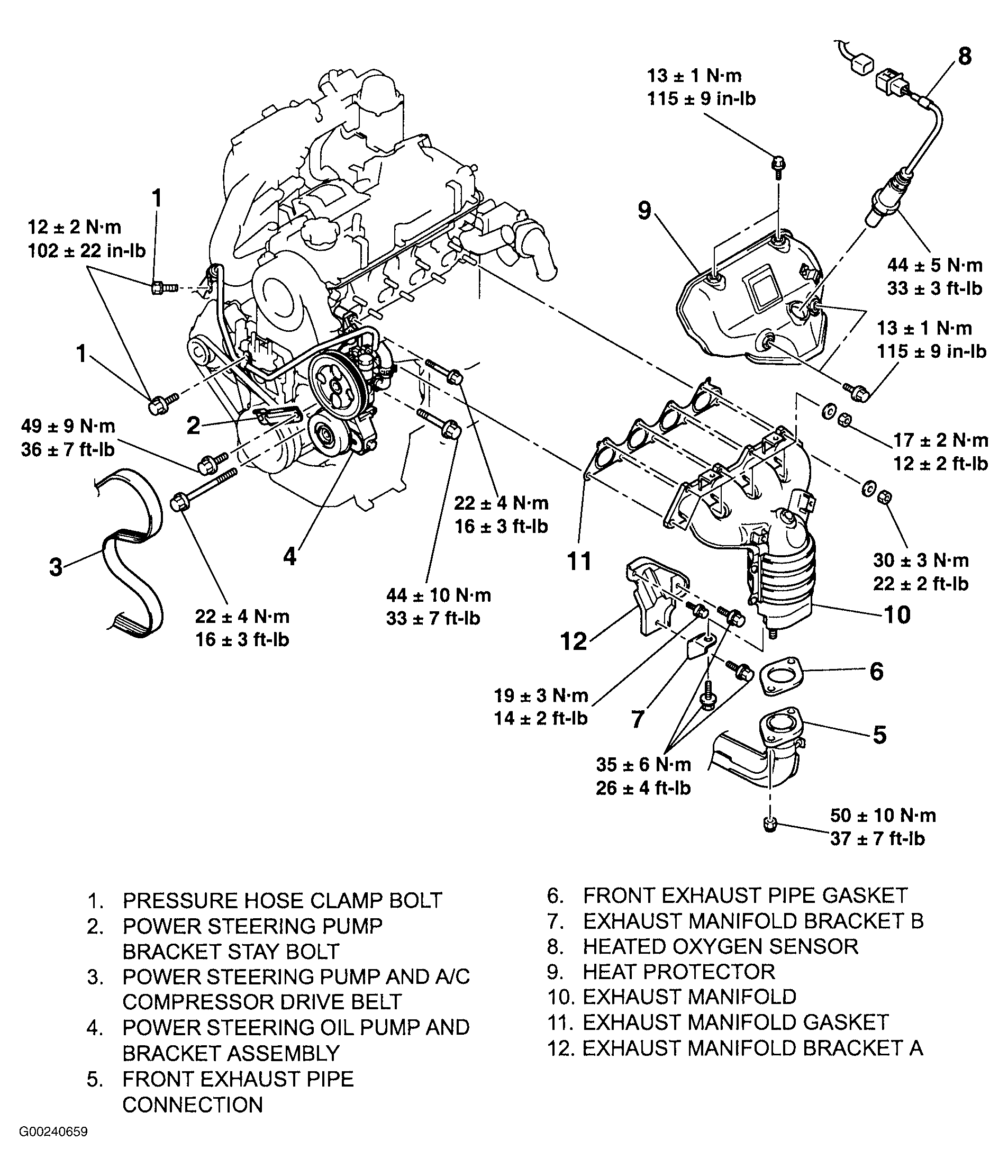

Front Heated Oxygen Sensor (HO2S) is located in exhaust manifold. See Fig 1 or Fig 3 . Rear HO2S is located in exhaust pipe, behind catalytic converter. See Fig 2 or Fig 4 . Disconnect HO2S connector. Using Oxygen Sensor Socket (MD998770), remove HO2S. Tighten HO2S to specification. See TORQUE SPECIFICATIONS . Connect HO2S connector. Ensure HO2S harness is routed correctly and not contacting exhaust.
