Removal (Lancer)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove left under cover. Raise engine and transaxle assembly to remove its weight off of front engine mount. Remove front engine mount and bracket. See Fig 1. Remove power steering pump and alternator drive belt. See Fig 2. Using Crankshaft Pulley Retaining Tool (MD998719 and MB990767) remove crankshaft pulley. See Fig 3.
  2. Disconnect crankshaft position sensor. Remove timing belt upper cover. Remove power steering hose clamp. Remove generator belt tension adjustment bracket. Remove lower timing belt cover. Remove crankshaft position sensor.

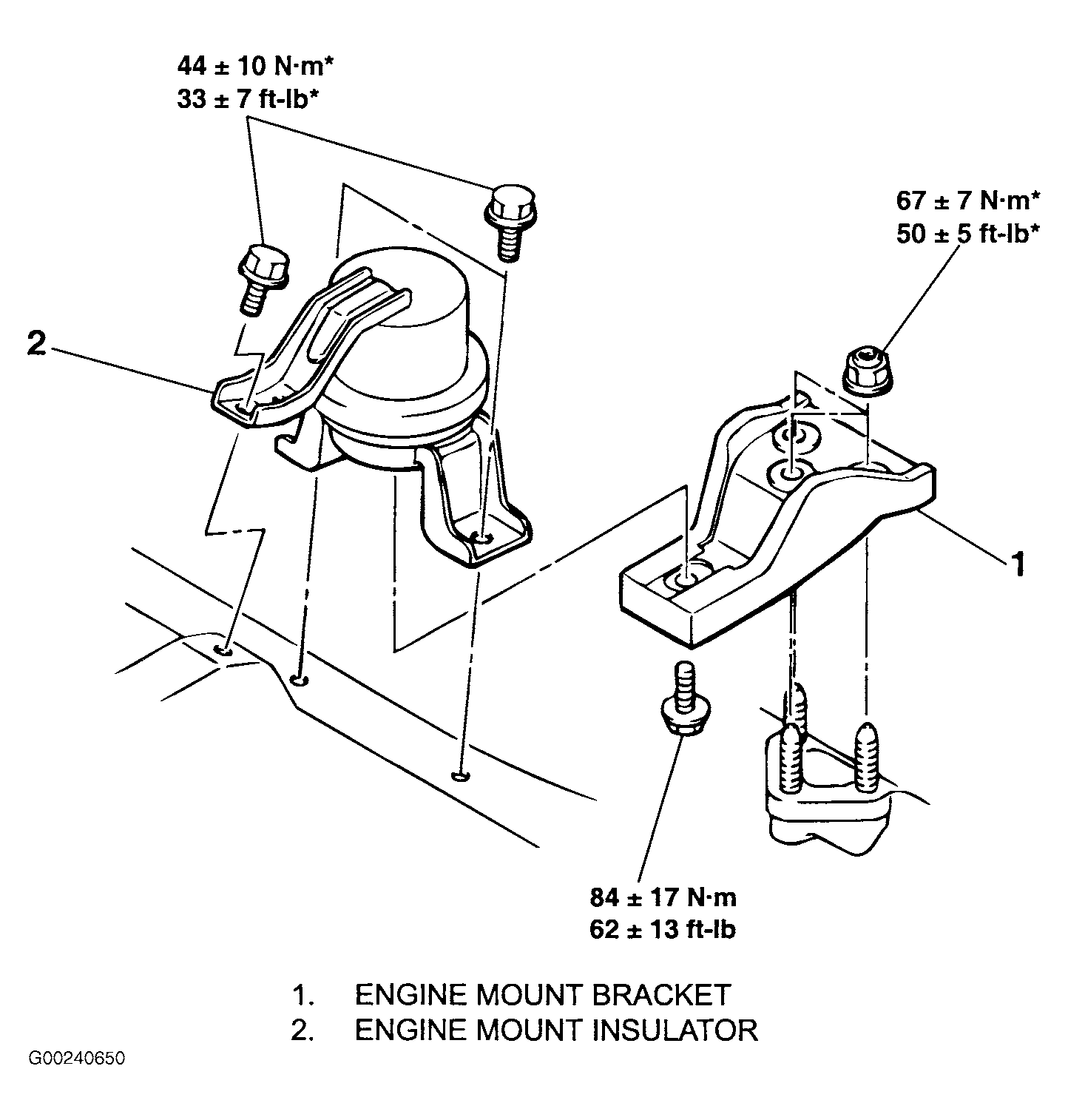

Fig 1: Removing Front Engine Mount (Lancer)
G00240650Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

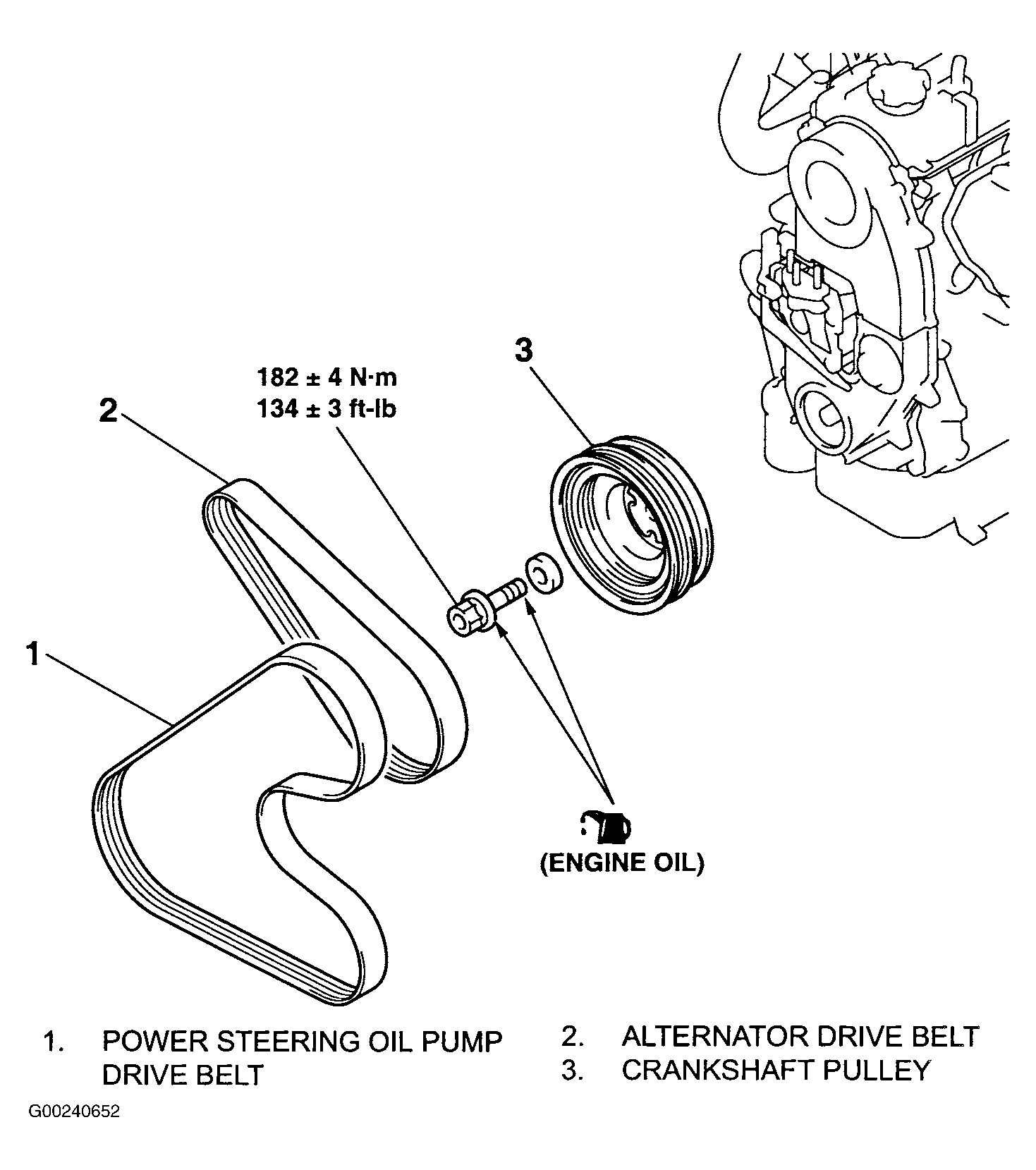

Fig 2: Removing Crankshaft Pulley (Lancer)
G00240652Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Identifying Crankshaft Pulley Retaining Tool (Lancer)
G00240651Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

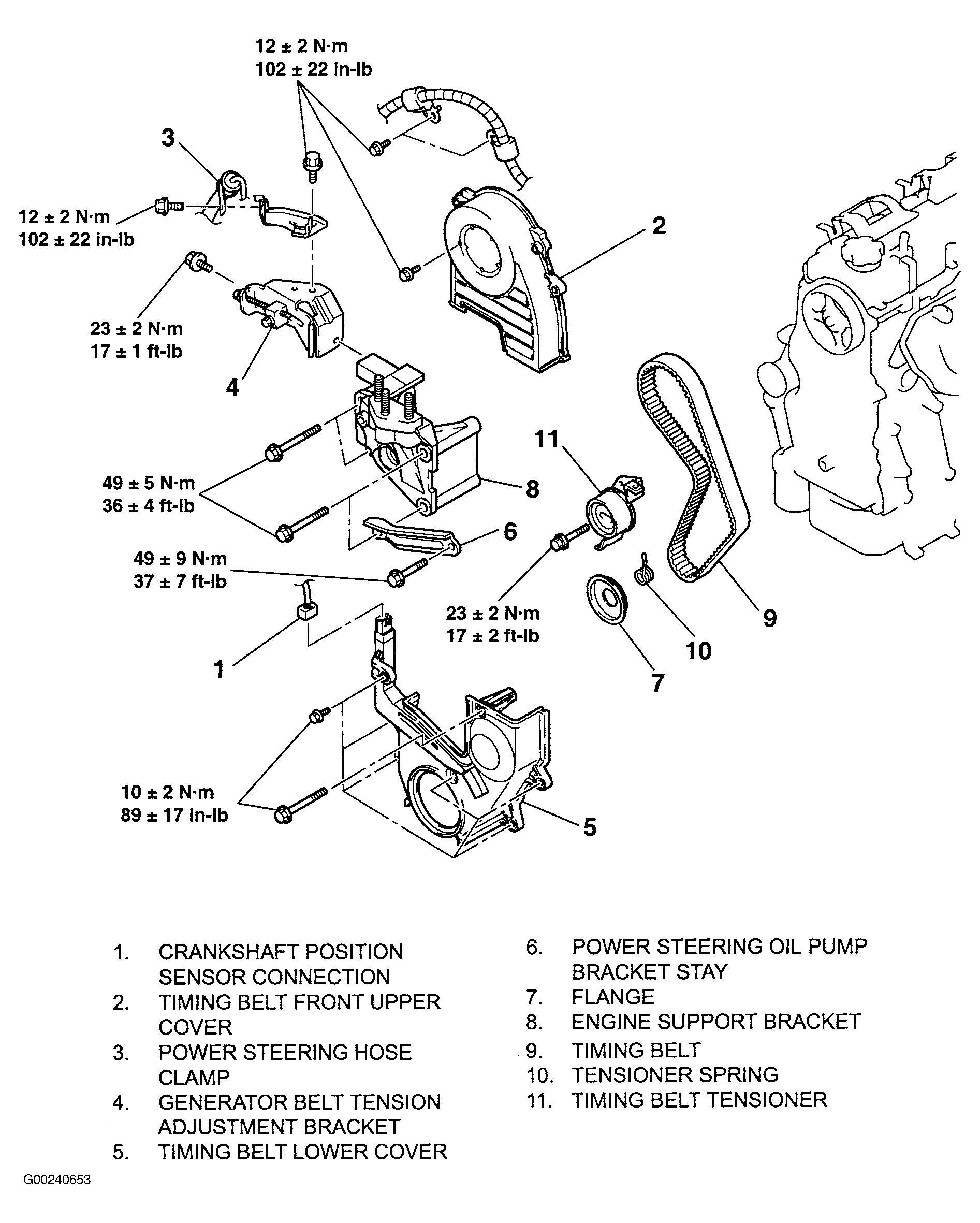

Fig 4: Exploded View Of Timing Belt Related Components (Lancer)
G00240653Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

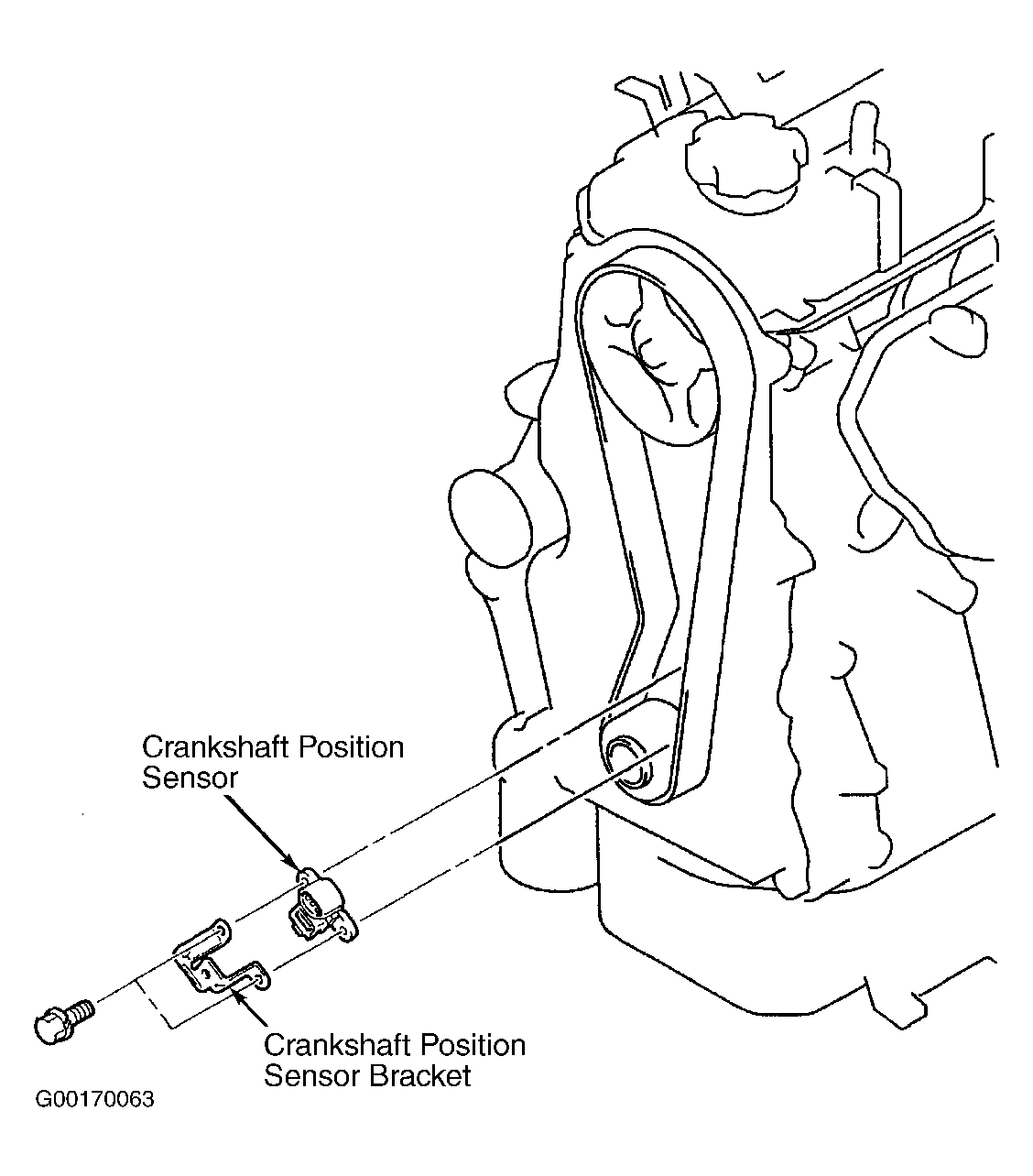

Fig 5: Locating Crankshaft Position Sensor (Lancer)
G00170063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
