Removal & Installation (Montero)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

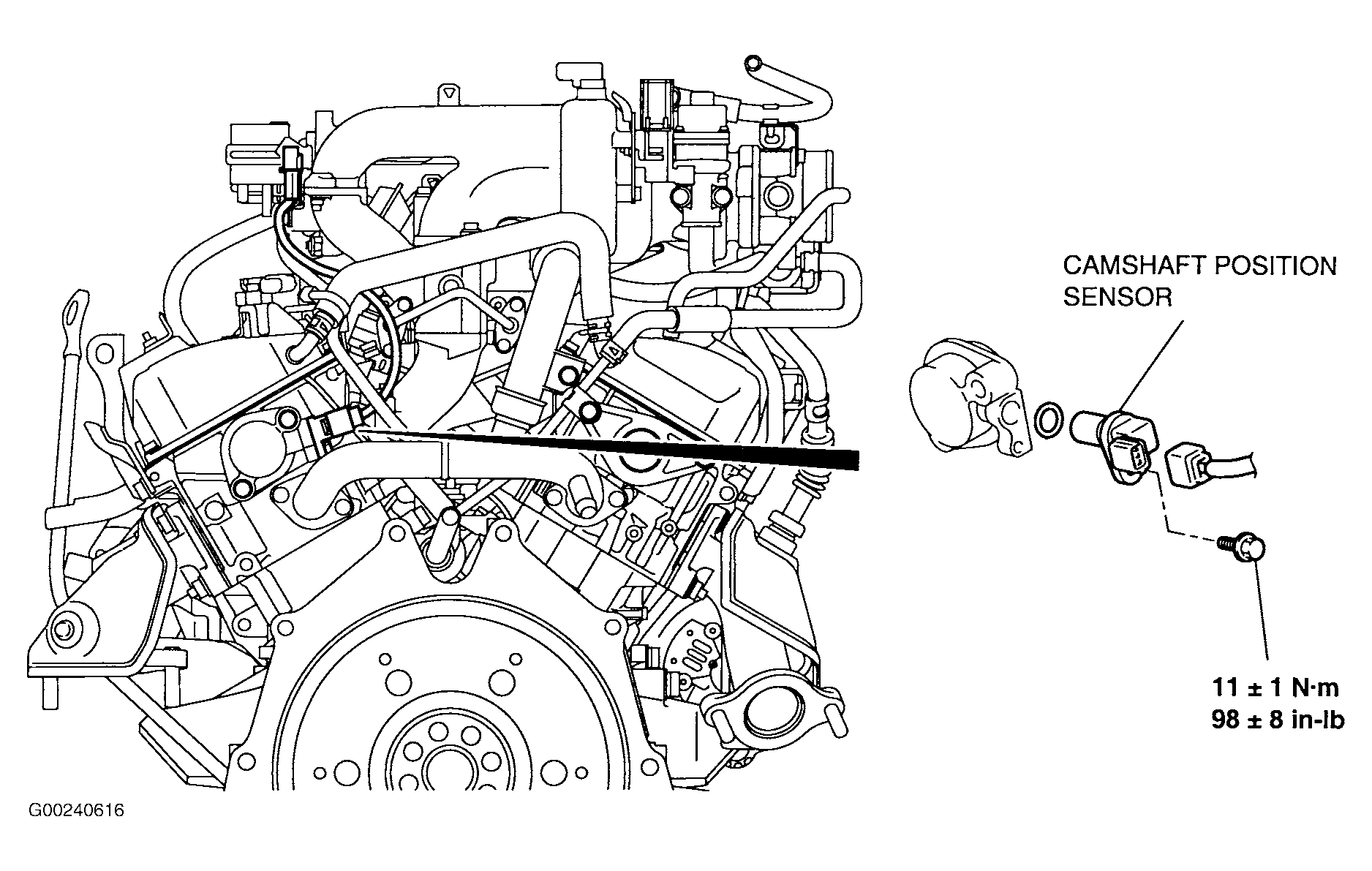

Locate Camshaft Position (CMP) sensor, on rear of left cylinder head. To remove CMP sensor, see Fig 1. To install, reverse removal procedure. Tighten CMP sensor bolt to specification. See TORQUE SPECIFICATIONS .
