Removal & Installation (Eclipse 2.4L, Galant 2.4L & Outlander)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

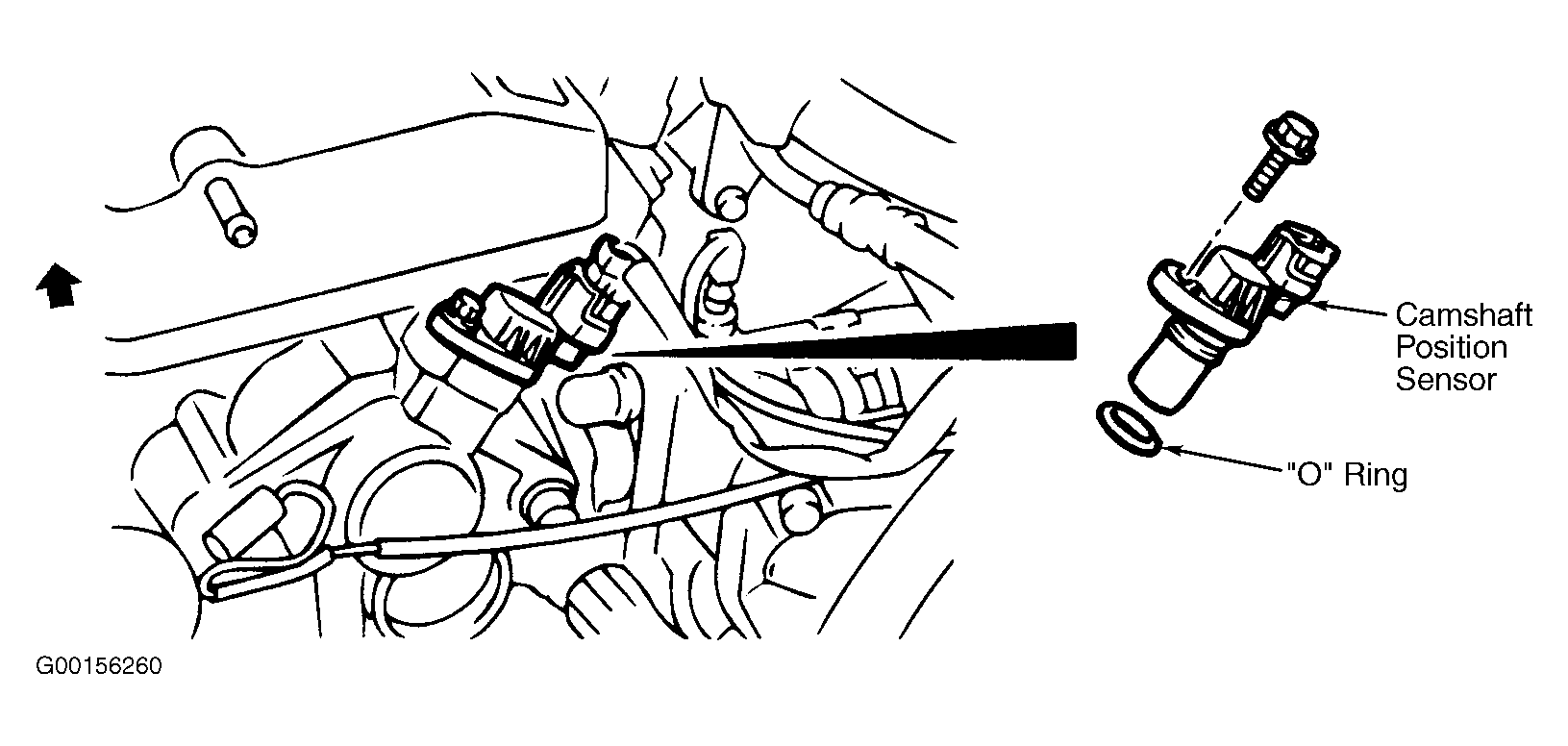

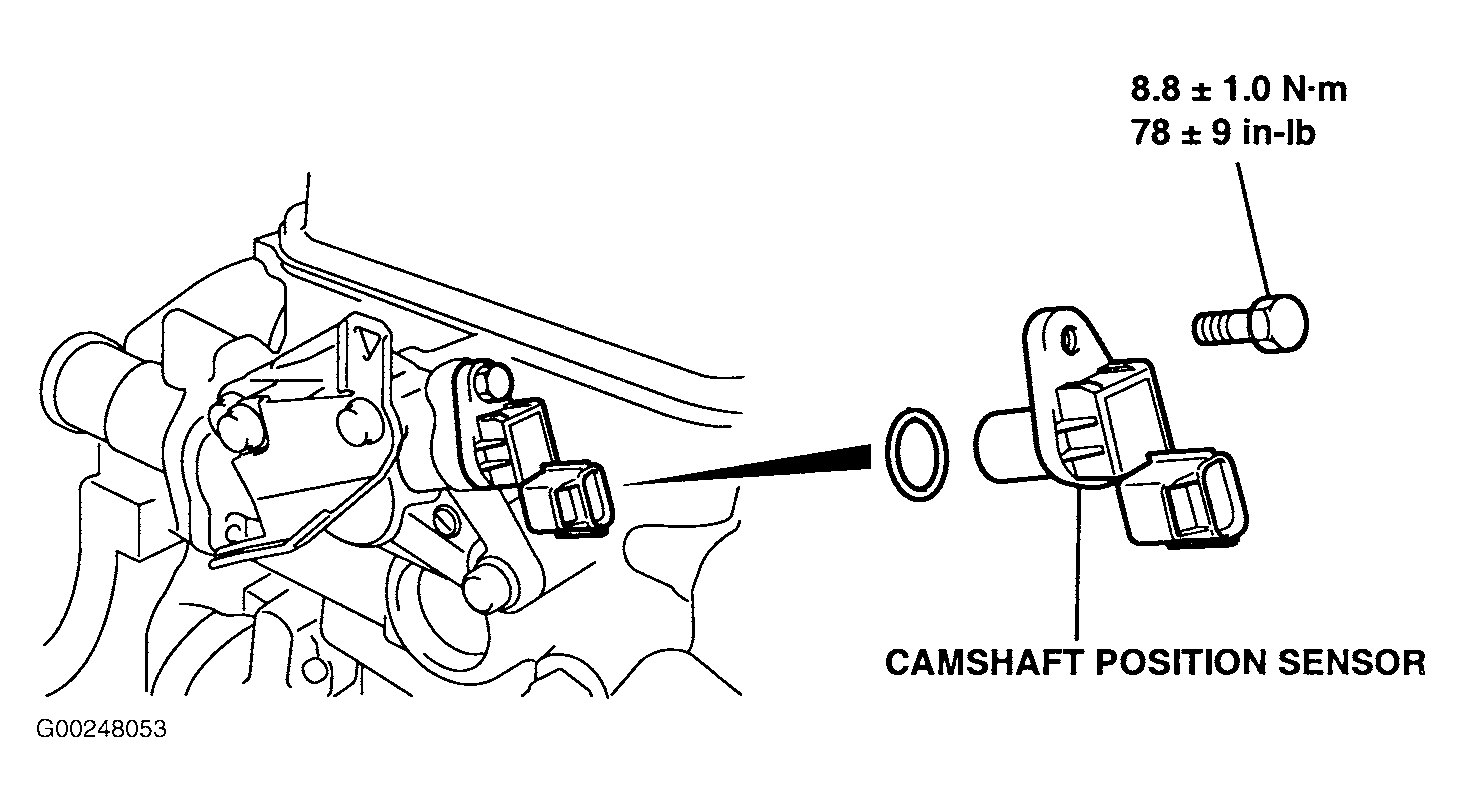

Camshaft Position (CMP) sensor is located at back of cylinder head. To remove CMP sensor, remove bolt, CMP sensor and "O" ring. See Fig 1 or Fig 2. To install, reverse removal procedure. Install NEW "O" ring. Tighten CMP sensor bolt to specification. See TORQUE SPECIFICATIONS .
