Removal & Installation (Eclipse, Galant, Montero & Outlander)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

To remove and install fuel pump relay, seeFig 1-Fig 4 .

Fig 1: Locating Fuel Pump Relay (Eclipse & Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Locating Fuel Pump Relay (Lancer)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

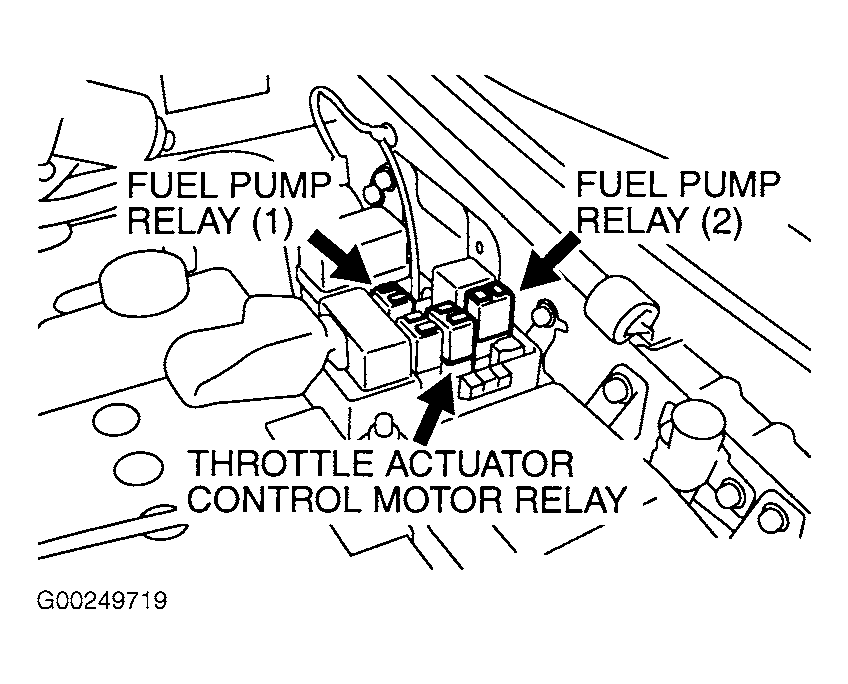

Fig 3: Locating Fuel Pump Relay & Throttle Actuator Control Motor Relay (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Locating Fuel Pump Relay (Outlander)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
