Removal & Installation (Diamante)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

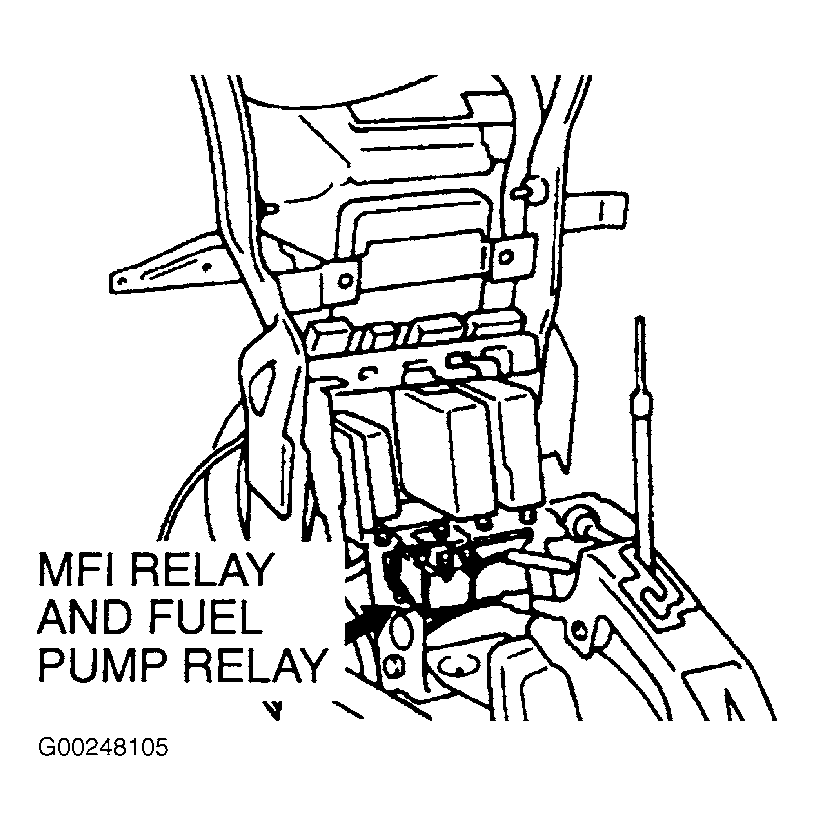

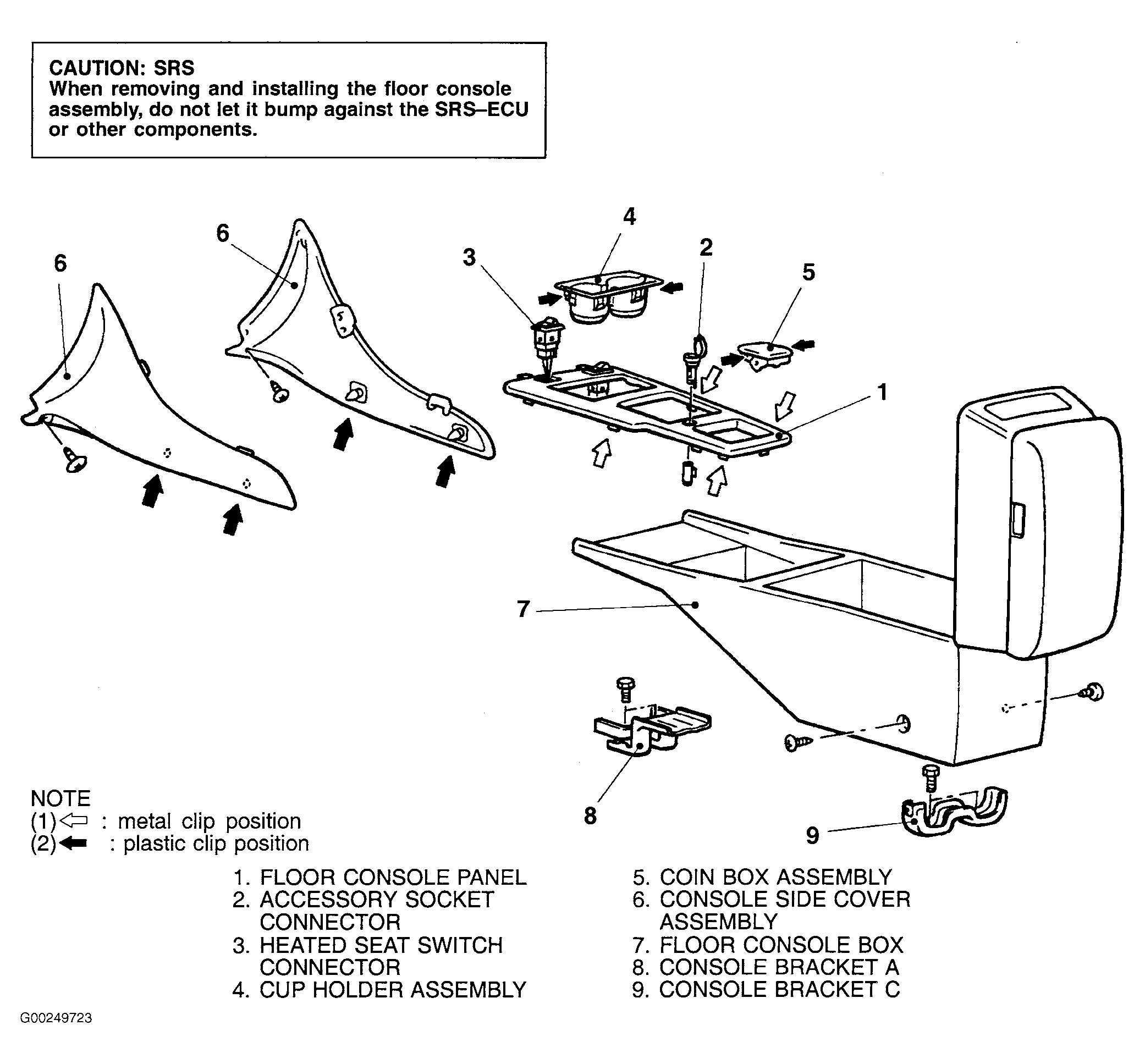

Remove floor console panel. See Figure. Disconnect accessory socket connector and heated seat switch connector. Remove cup holder assembly and coin box assembly. Remove console side cover assembly. Remove floor console box. Remove fuel pump relay. See Figure. To install, reverse removal procedure.
