Removal & Installation (Montero Sport & Outlander)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

To remove and install EVAP emission ventilation solenoid on Montero Sport, see Figure and Fig 1 . To remove and install EVAP emission ventilation solenoid on Outlander, see Figure and Fig 2 .

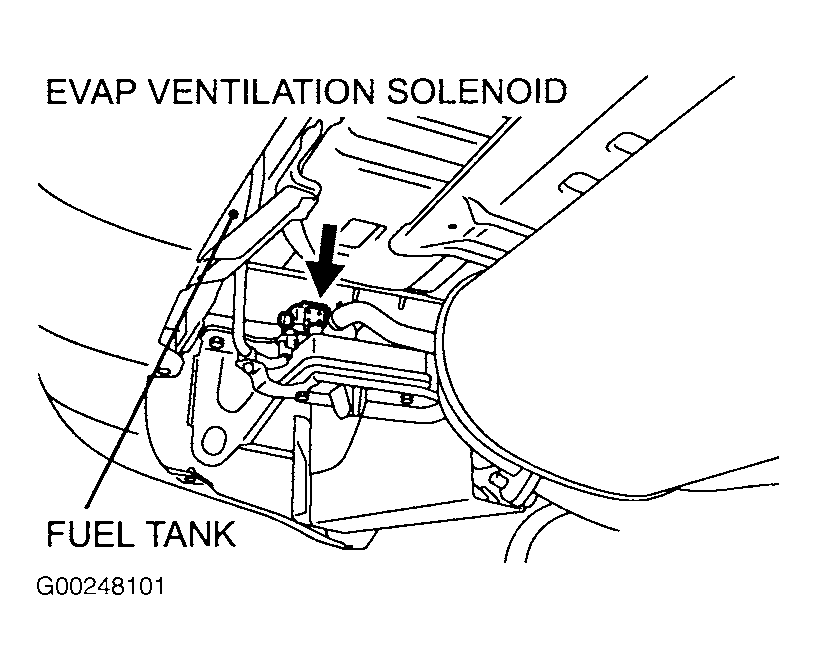

Fig 1: Locating EVAP Emission Ventilation Solenoid (Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

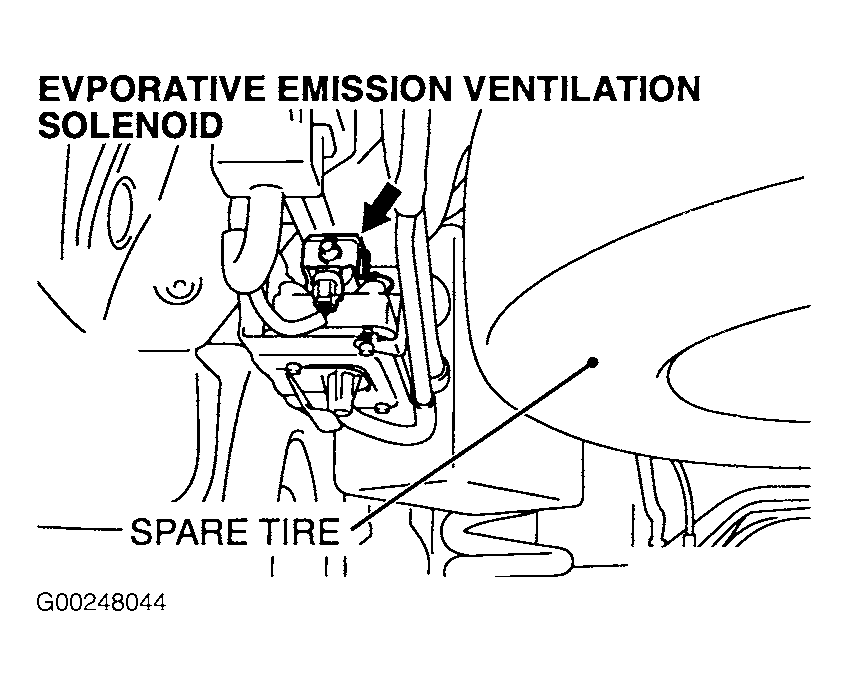

Fig 2: Locating EVAP Emission Ventilation Solenoid (Outlander)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
