Removal & Installation (Diamante, Eclipse, Galant, Lancer, Montero, Montero Sport & Outlander)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

To remove and install EVAP emission purge solenoid, see Fig 1-Fig 5, Figure, Figure or Figure .

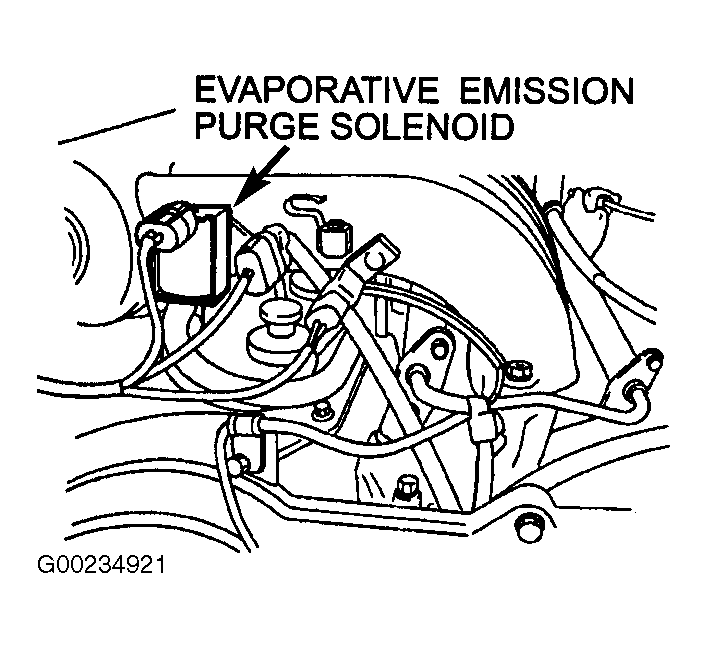

Fig 1: Locating EVAP Emission Purge Solenoid (Diamante)
G00234921Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

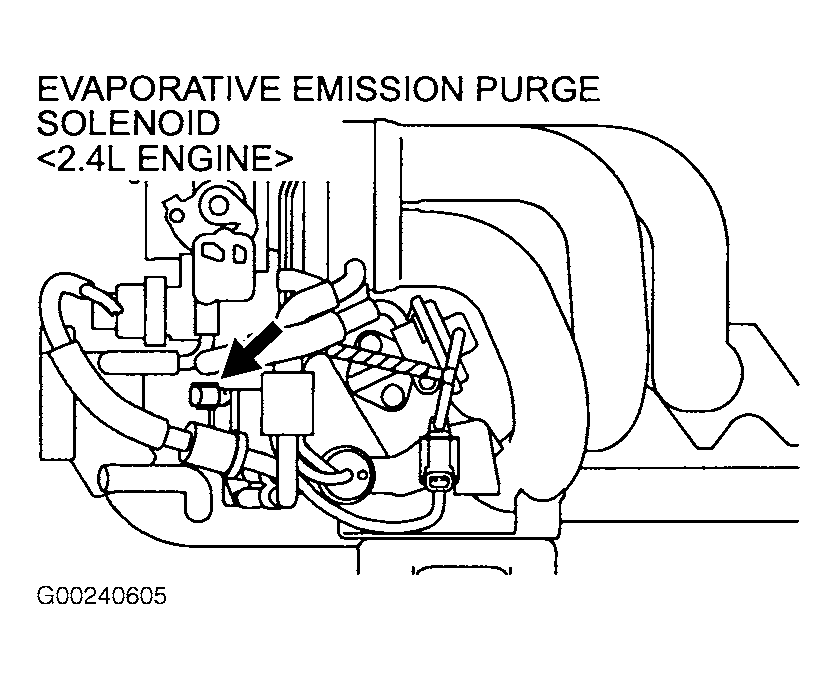

Fig 2: Locating EVAP Emission Purge Solenoid (Eclipse 2.4L & Galant 2.4L)
G00240605Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

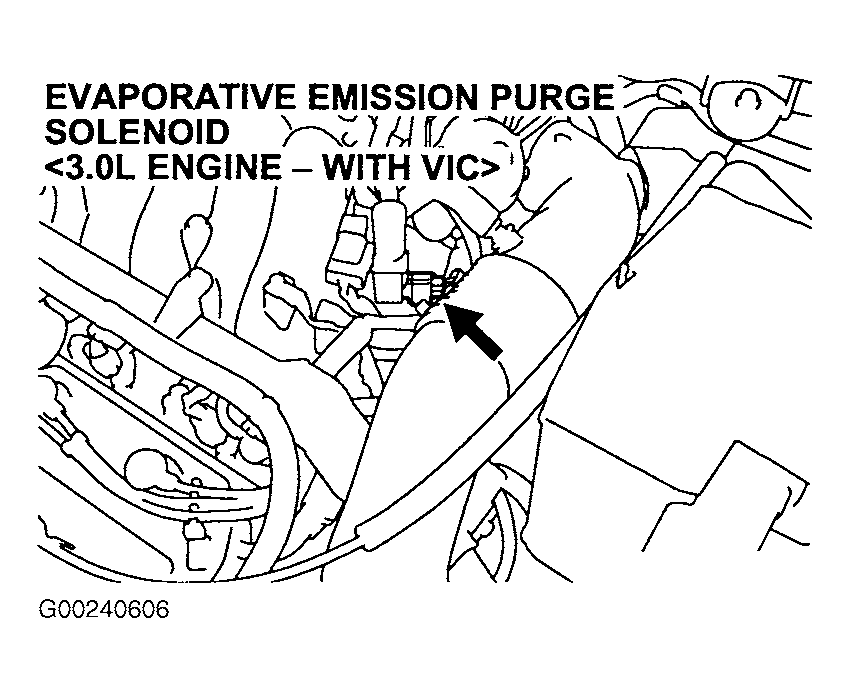

Fig 3: Locating EVAP Emission Purge Solenoid (Eclipse 3.0L - With Variable Induction Control)
G00240606Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

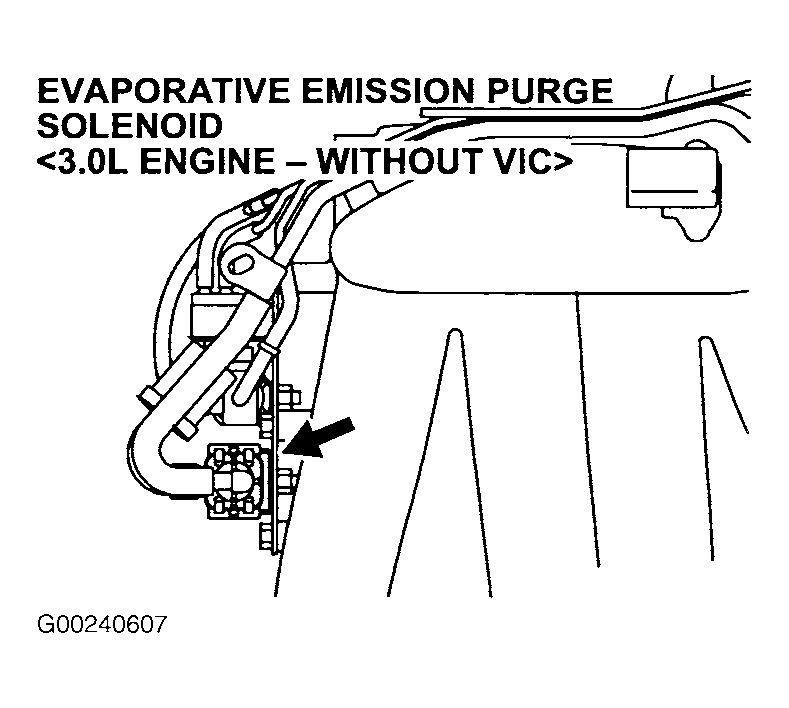

Fig 4: Locating EVAP Emission Purge Solenoid (Eclipse 3.0L - Without Variable Induction Control & Galant 3.0L)
G00240607Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

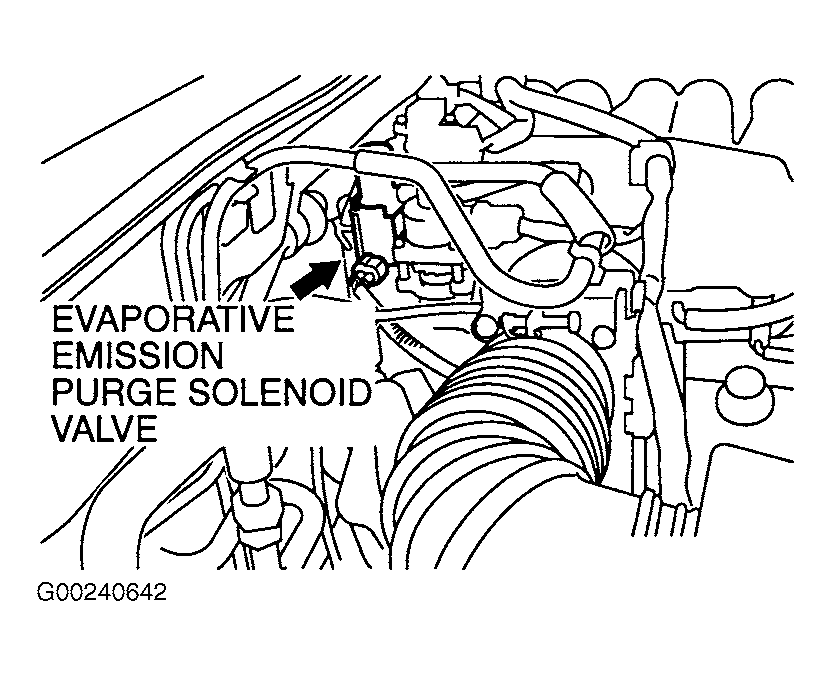

Fig 5: Locating EVAP Emission Purge Solenoid (Montero)
G00240642Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
