Removal & Installation (Diamante, Eclipse, Galant, Montero Sport & Outlander)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

To remove and install EGR solenoid, see Fig 1-Fig 6 .

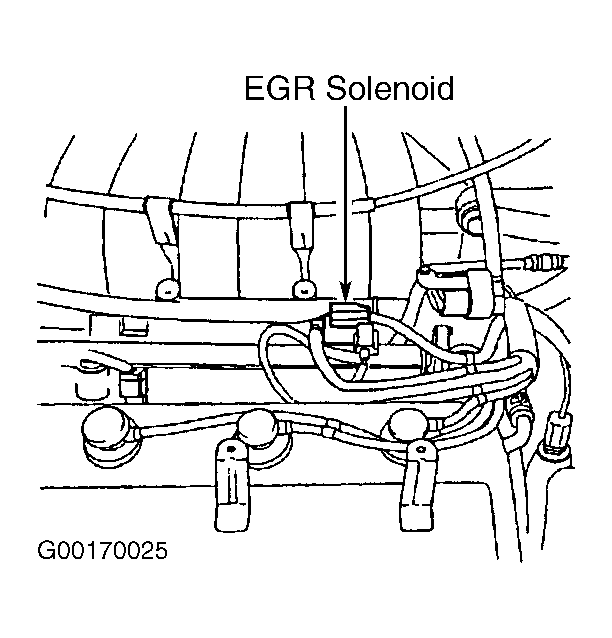

Fig 1: Locating EGR Solenoid (Diamante)

G00170025

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

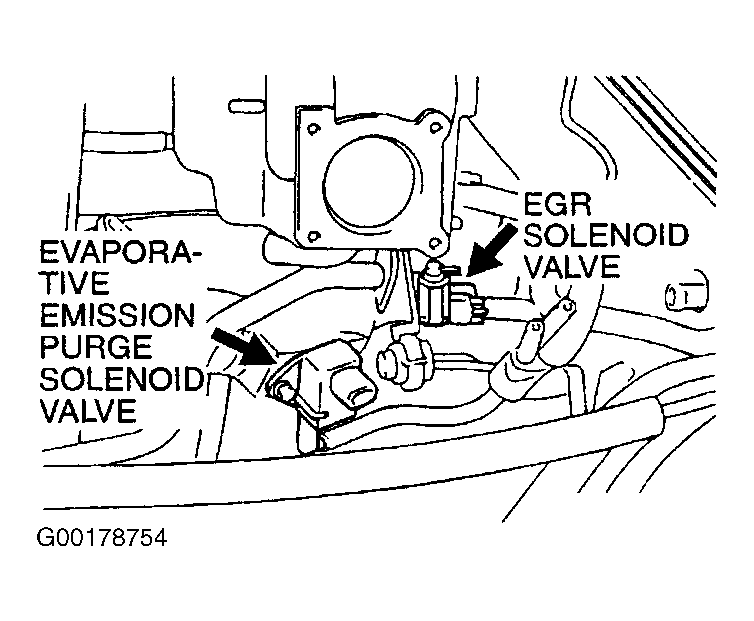

Fig 2: Locating EGR Solenoid (Eclipse 2.4L & Galant 2.4L)

G00178754

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

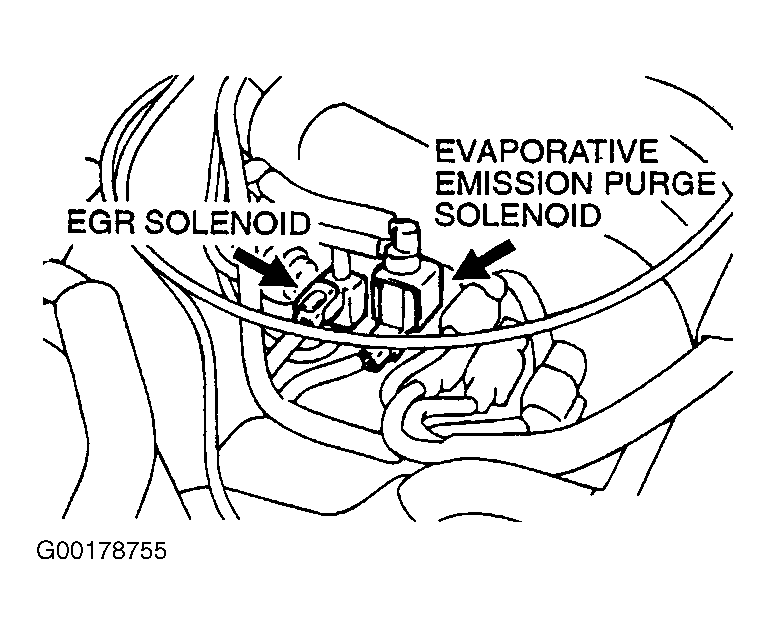

Fig 3: Locating EGR Solenoid (Eclipse 3.0L & Galant 3.0L)

G00178755

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

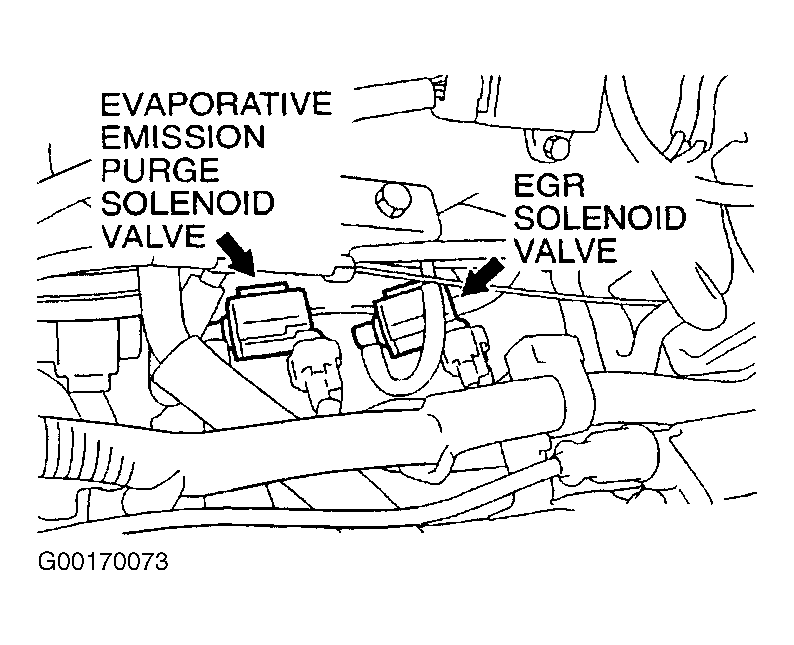

Fig 4: Locating EGR Solenoid & Evaporative Emission Purge Solenoid (Lancer)

G00170073

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Locating EGR Valve, EGR Solenoid & Evaporative Emission Purge Solenoid (Montero Sport)

G00156277

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

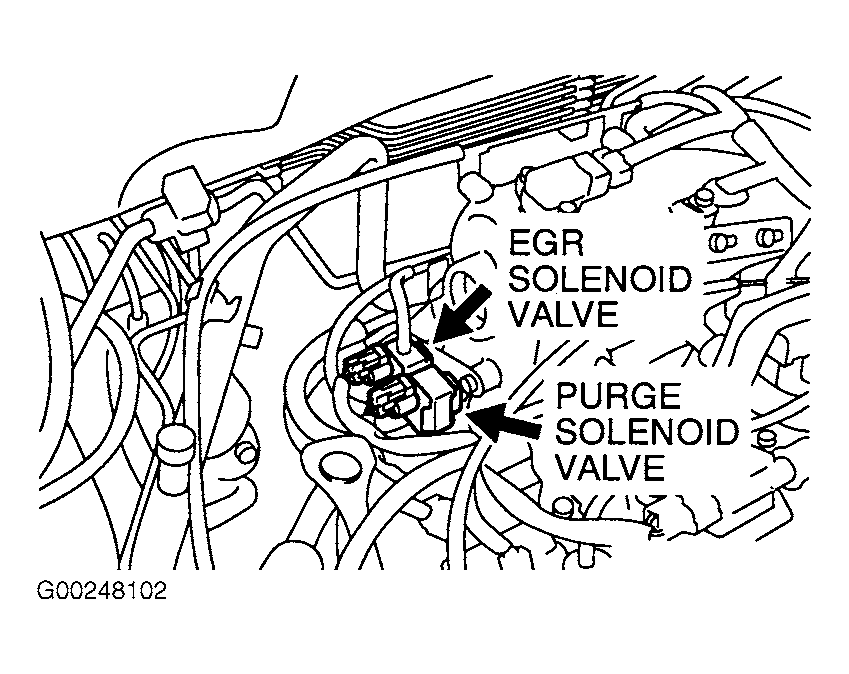

Fig 6: Locating EGR Solenoid & Evaporative Emission Purge Solenoid (Outlander)

G00248102

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
