Removal & Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

To remove and install A/C compressor relay, see Fig 1-Fig 6 .

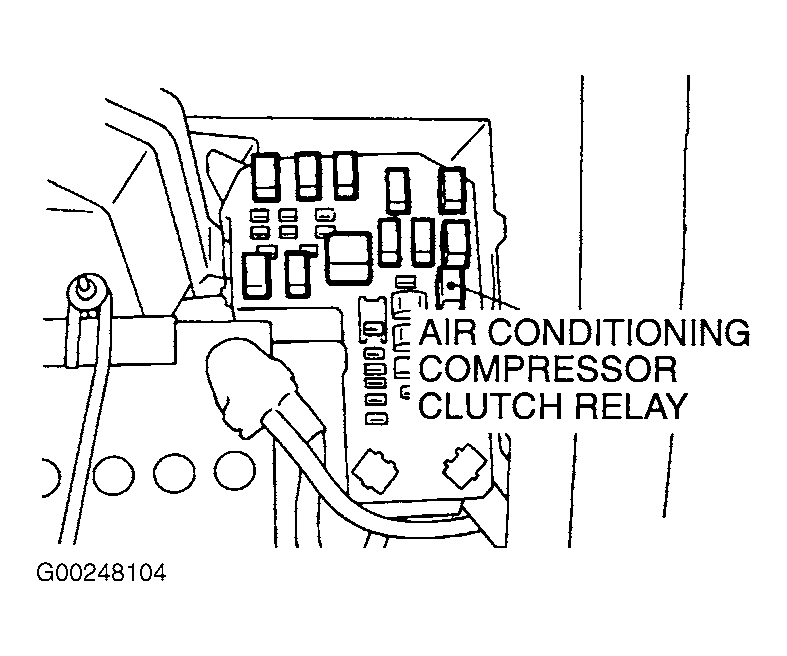

Fig 1: Locating A/C Compressor Relay (Diamante)

G00248104

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

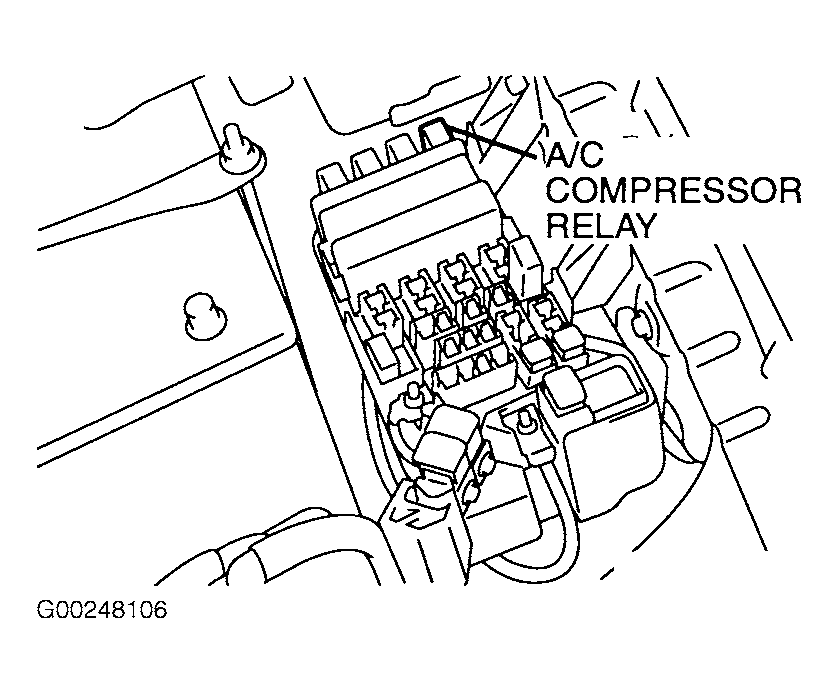

Fig 2: Locating A/C Compressor Relay (Montero)

G00248106

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Locating A/C Compressor & Multiport Fuel Injection Relay (Eclipse & Galant)

G00249713

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

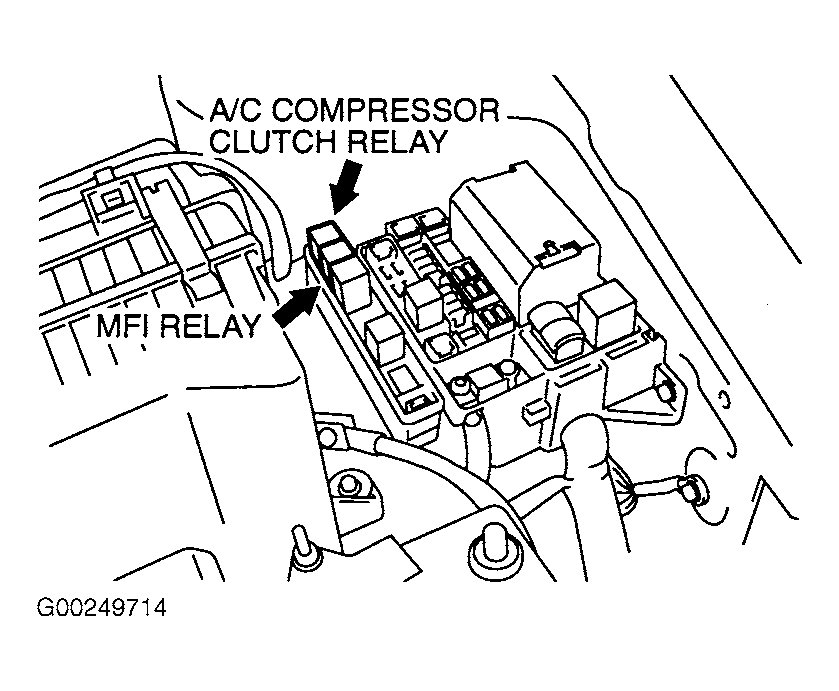

Fig 4: Locating A/C Compressor & Multiport Fuel Injection Relay (Lancer)

G00249714

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

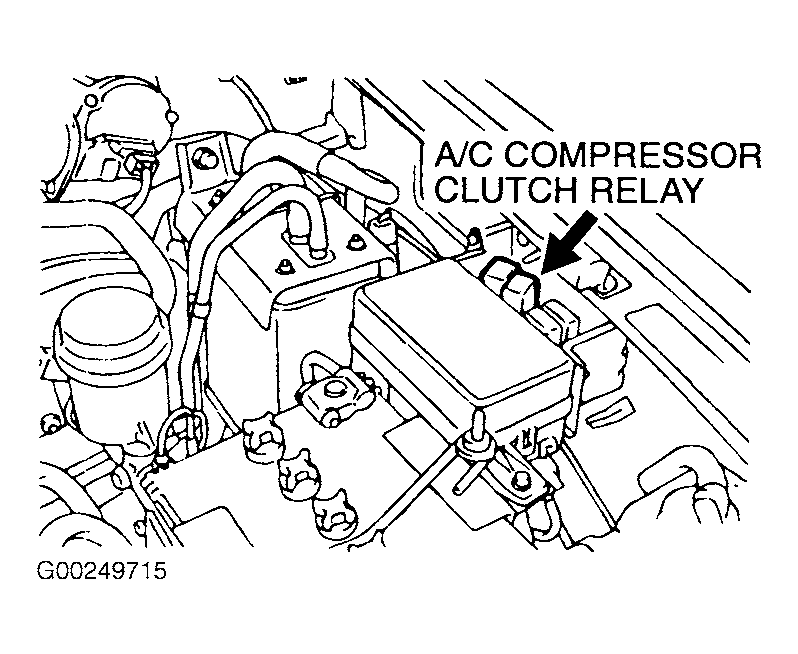

Fig 5: Locating A/C Compressor Relay (Montero Sport)

G00249715

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

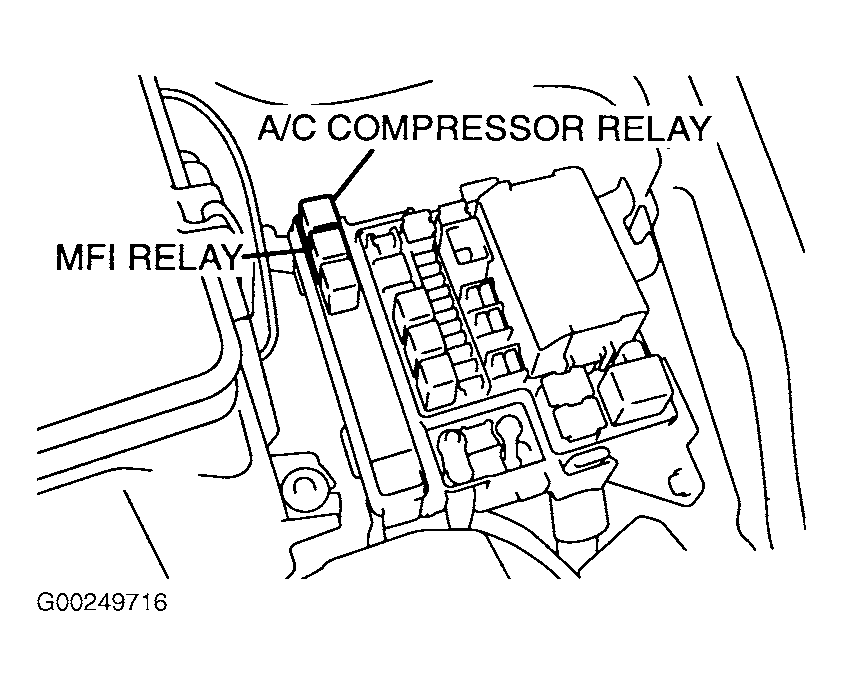

Fig 6: Locating A/C Compressor & Multiport Fuel Injection Relay (Outlander)

G00249716

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
