Removal & Installation (Montero)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

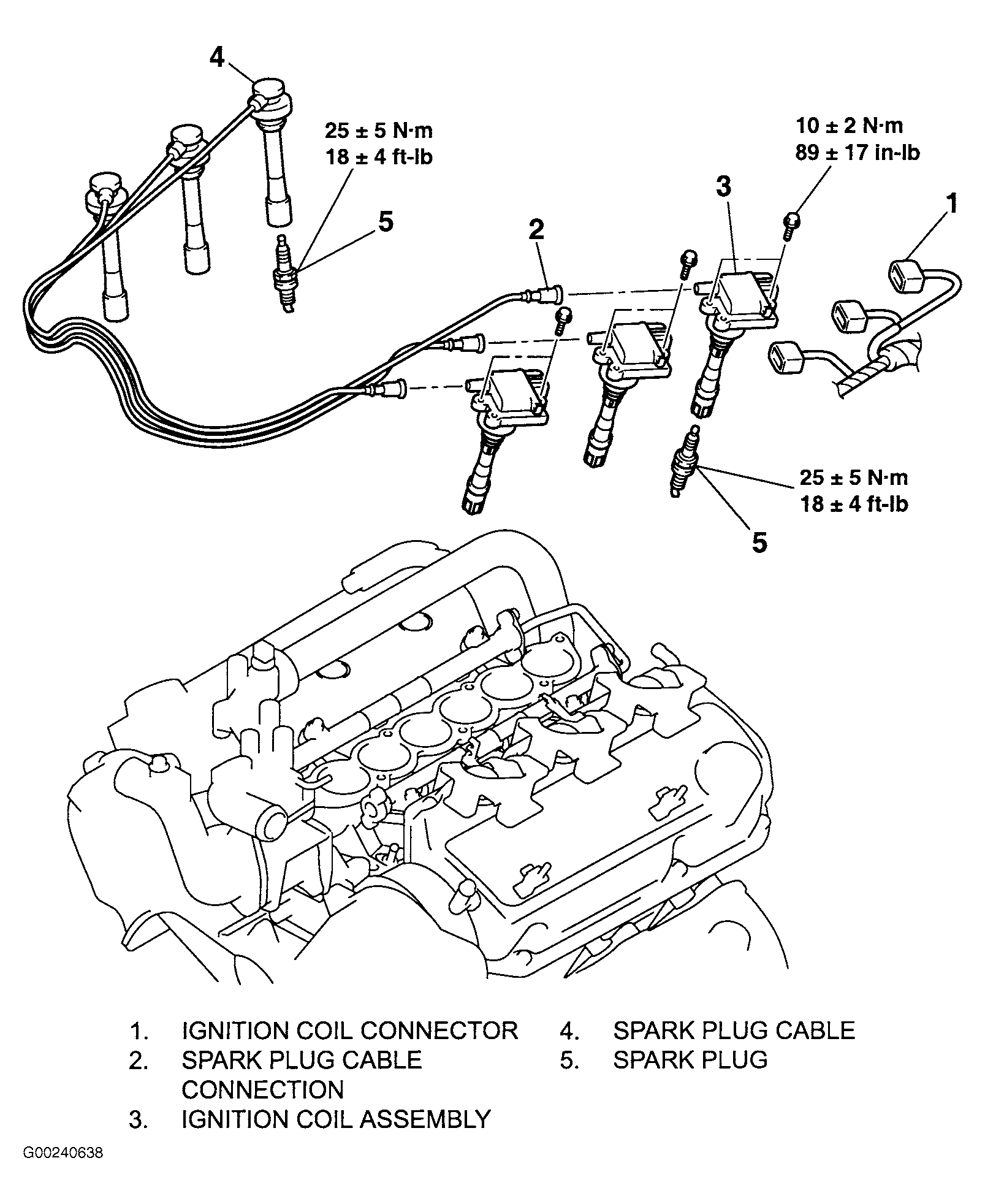

Remove intake manifold plenum. See INTAKE MANIFOLD PLENUM under AIR INDUCTION SYSTEMS. To remove and install ignition coil(s), see Fig 1. Tighten ignition coil bolts to specification. See TORQUE SPECIFICATIONS .
