Removal & Installation (Eclipse 2.4L, Galant 2.4L, Lancer & Outlander)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

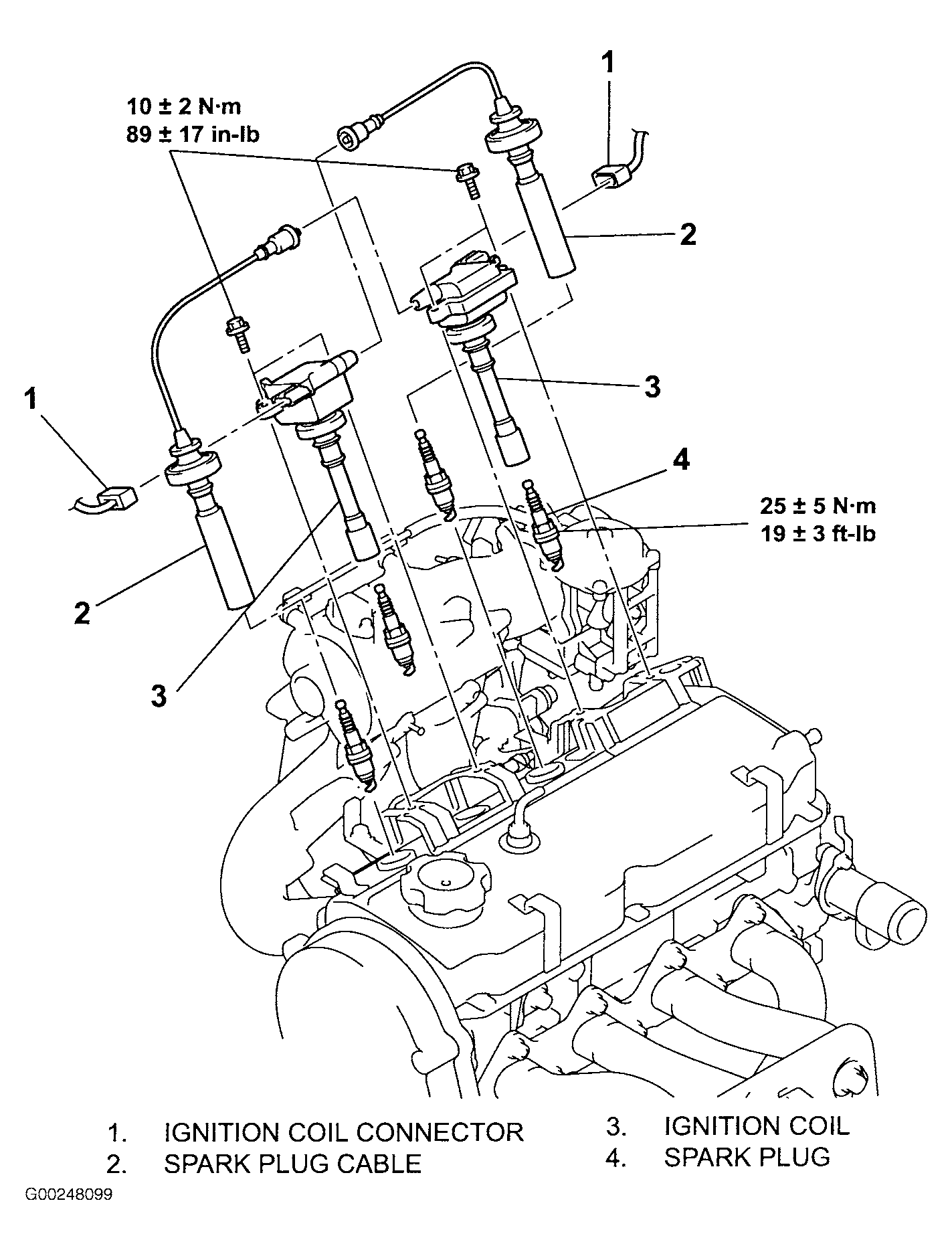

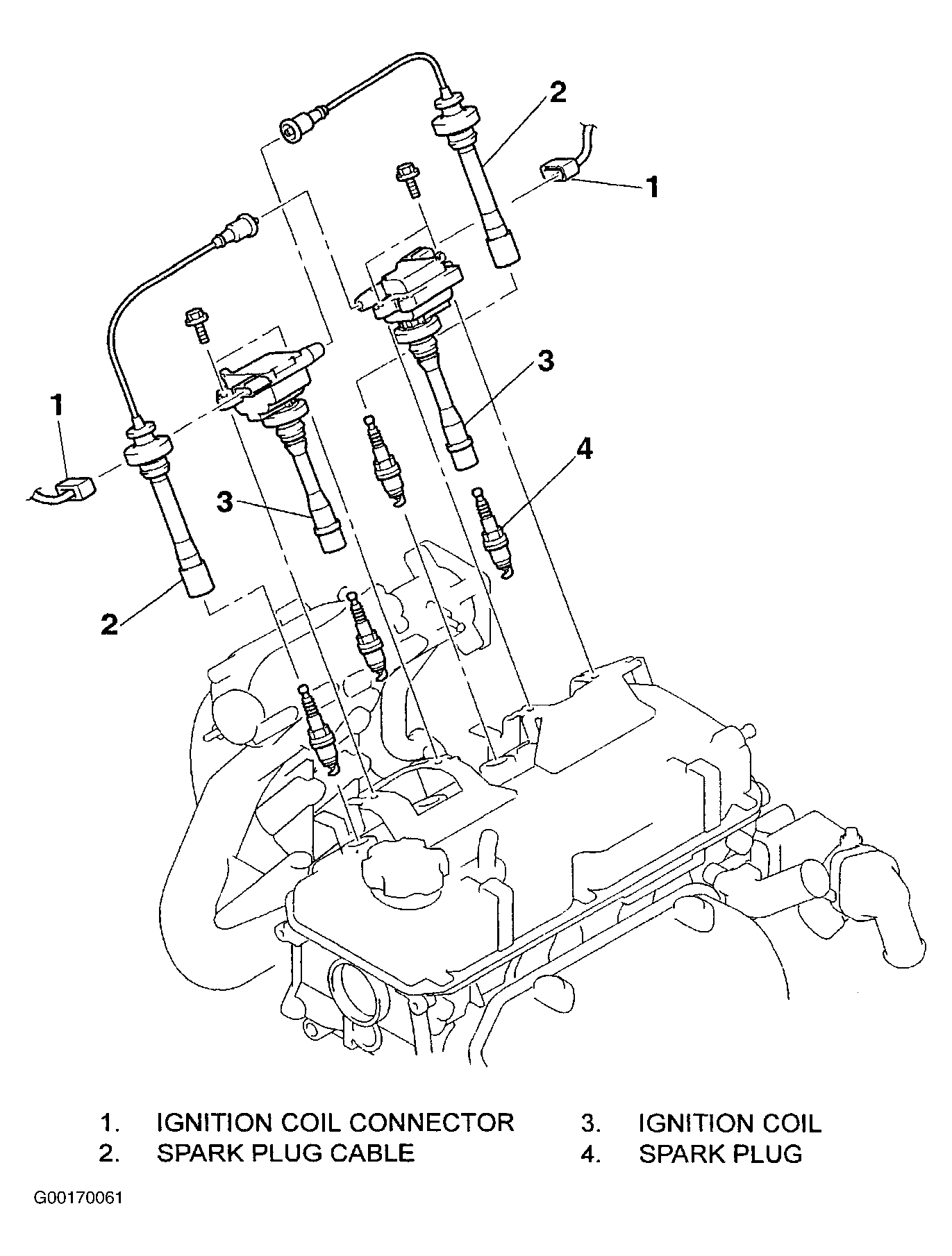

Remove spark plug cables. See Fig 1, Fig 2 or Fig 3 . Remove bolts and ignition coil assembly. To install reverse removal procedure. Tighten ignition coil bolts to specification. See TORQUE SPECIFICATIONS .
