Removal (Montero & Montero Sport)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
- Relieve fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove intake manifold plenum. See INTAKE MANIFOLD PLENUM under AIR INDUCTION SYSTEMS.

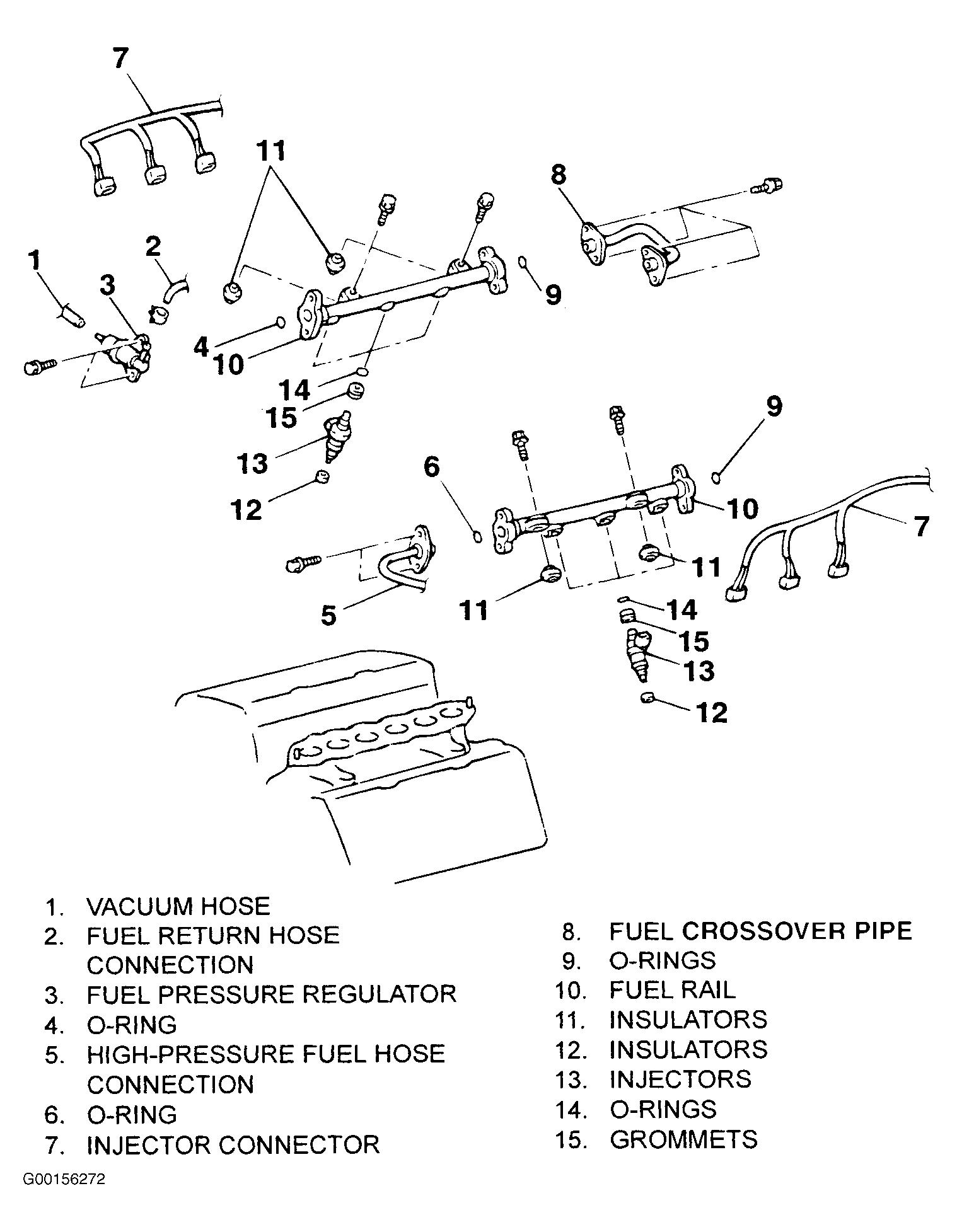

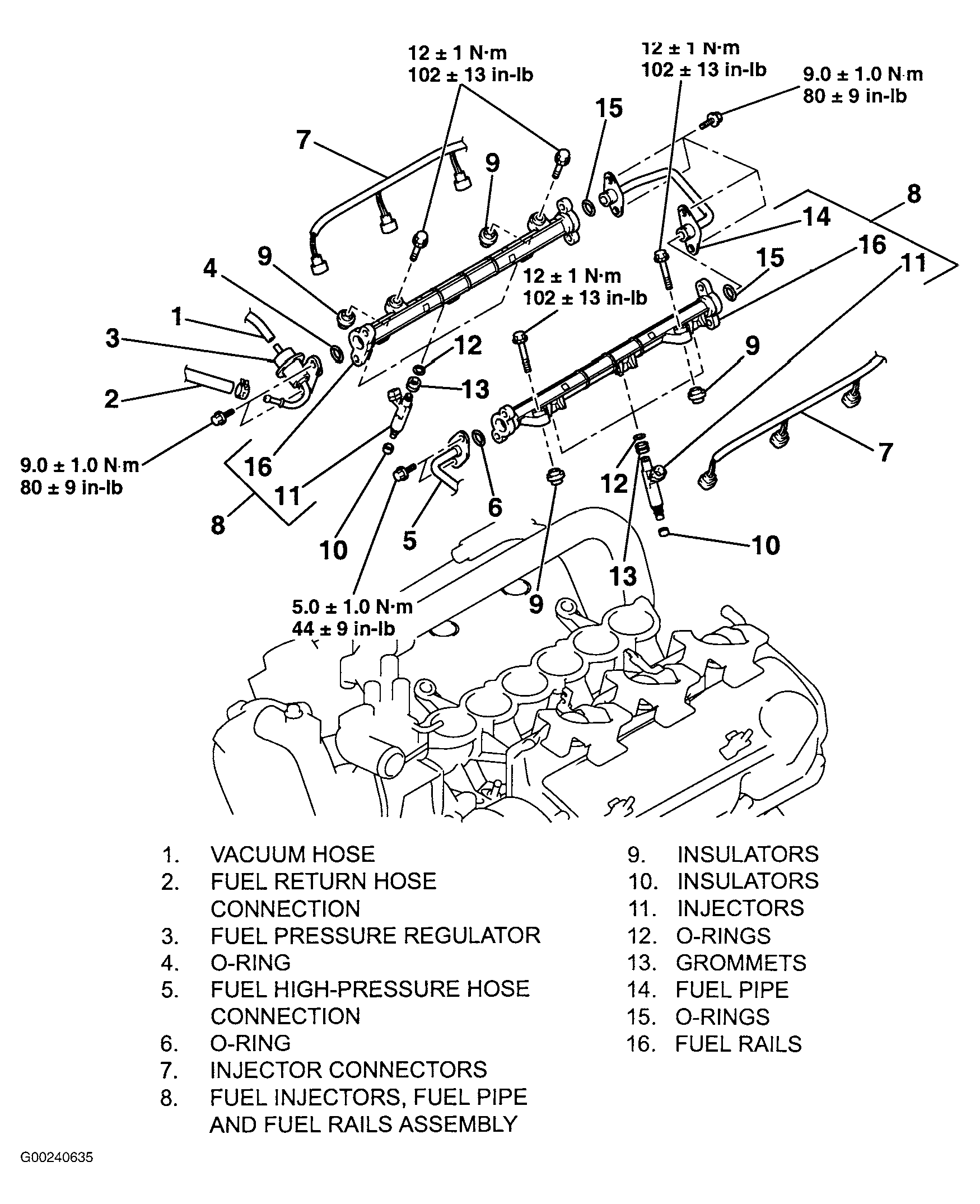

- Disconnect fuel pressure regulator vacuum hose. See Fig 1 or Fig 2 . Disconnect fuel return line from fuel pressure regulator. Disconnect high pressure fuel line from fuel rail. Label and disconnect fuel injector harness connectors.
- Remove fuel crossover pipe retaining bolts. Remove fuel crossover pipe. Remove retaining bolts from fuel rails. Remove fuel rails and insulators.
