Removal (Eclipse 3.0L & Galant 3.0L)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
- Relieve fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove intake manifold plenum. See INTAKE MANIFOLD PLENUM under AIR INDUCTION SYSTEMS.

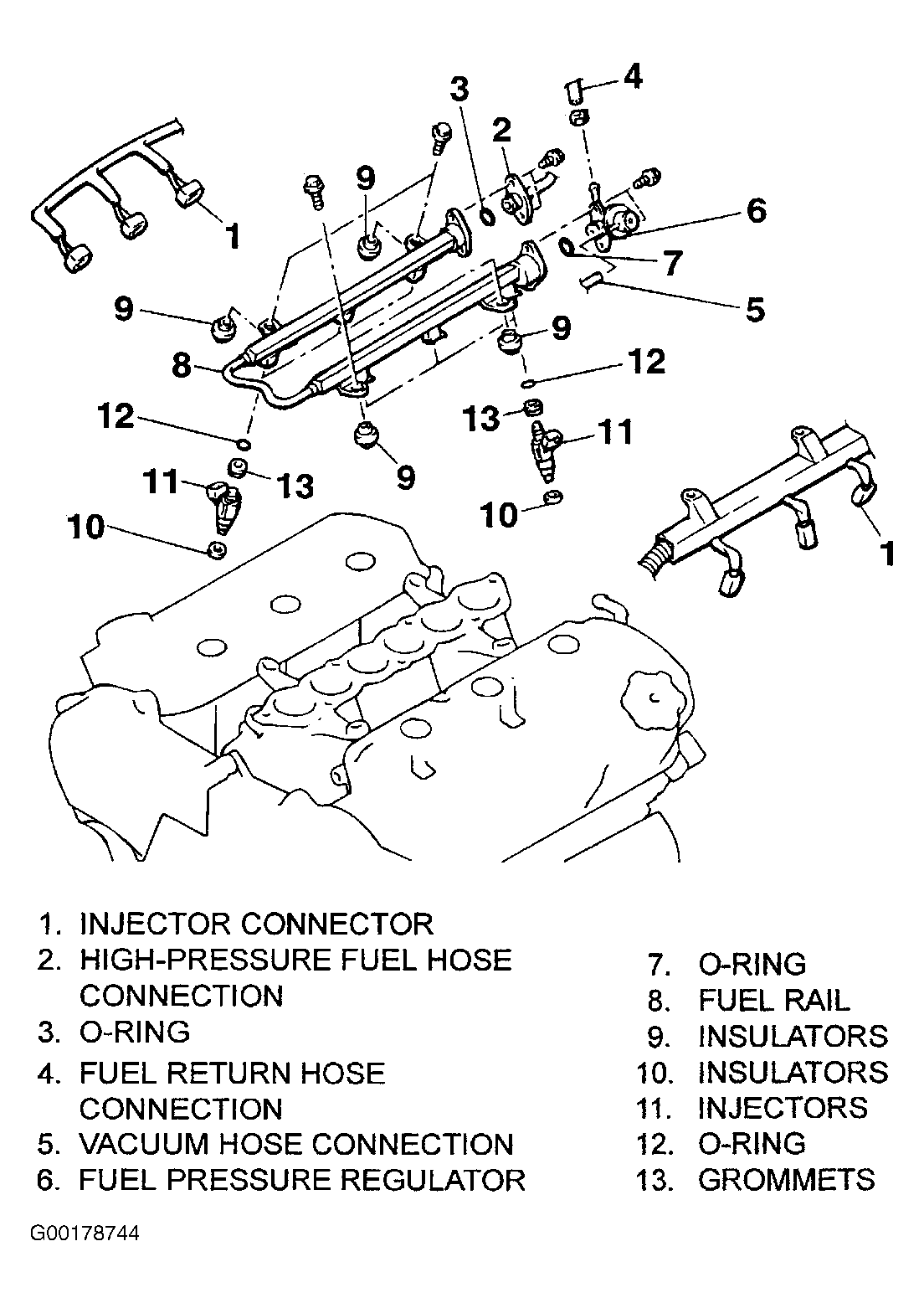

- Disconnect fuel injector connectors. See Fig 1. Disconnect high-pressure fuel hose and remove "O" ring. Disconnect fuel return hose. Disconnect vacuum hose. Remove fuel pressure regulator and "O" ring. Remove fuel rail and insulators. Remove injectors, "O" ring and grommets.
