Removal & Installation (Diamante, Eclipse, Galant, Lancer & Montero)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

To remove and install Positive Crankcase Ventilation (PCV) valve, see Fig 1-Fig 6 .

Fig 1: Locating Positive Crankcase Ventilation Valve (Diamante)
G00234924Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

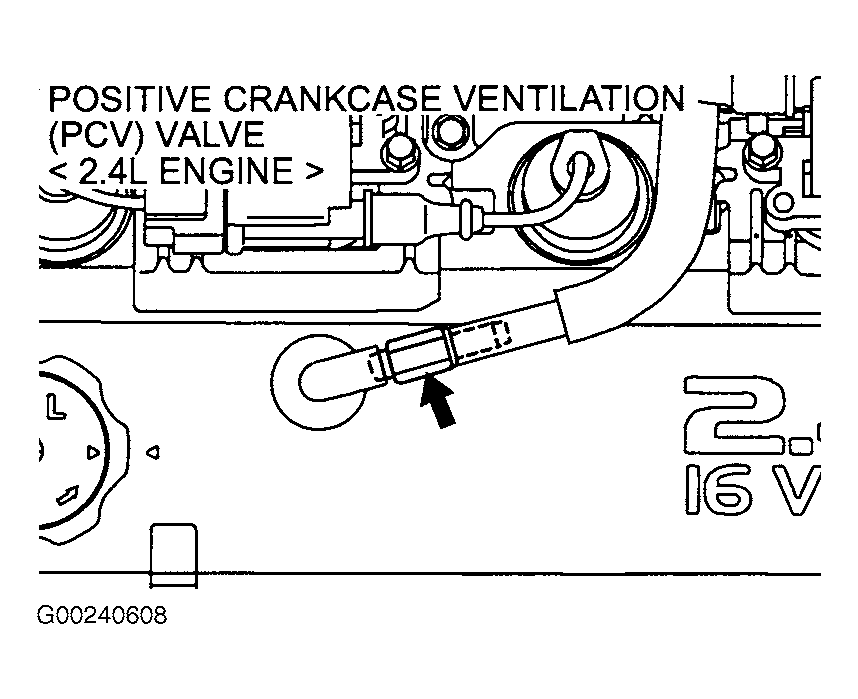

Fig 2: Locating Positive Crankcase Ventilation Valve (Eclipse 2.4L, Galant 2.4L & Outlander)
G00240608Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

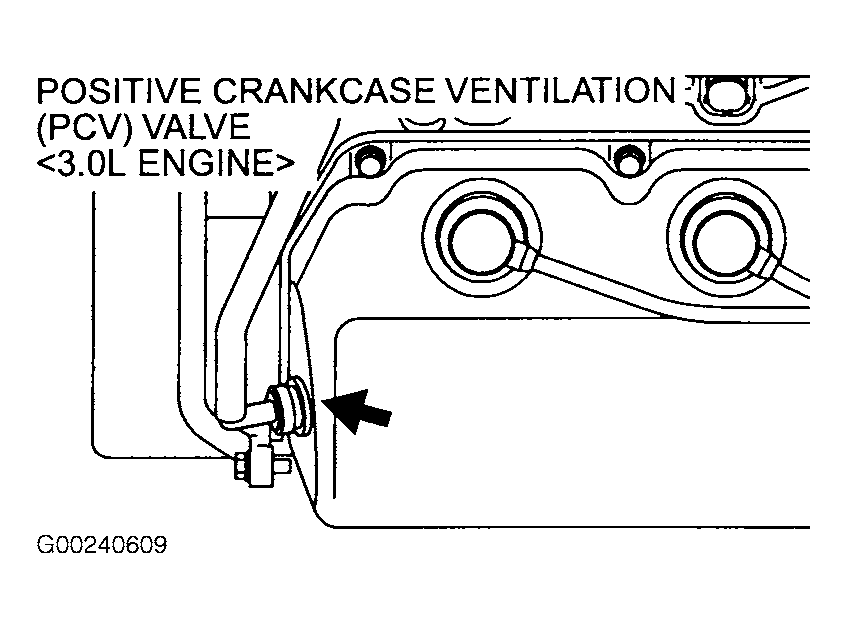

Fig 3: Locating Positive Crankcase Ventilation Valve (Eclipse 3.0L & Galant 3.0L)
G00240609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

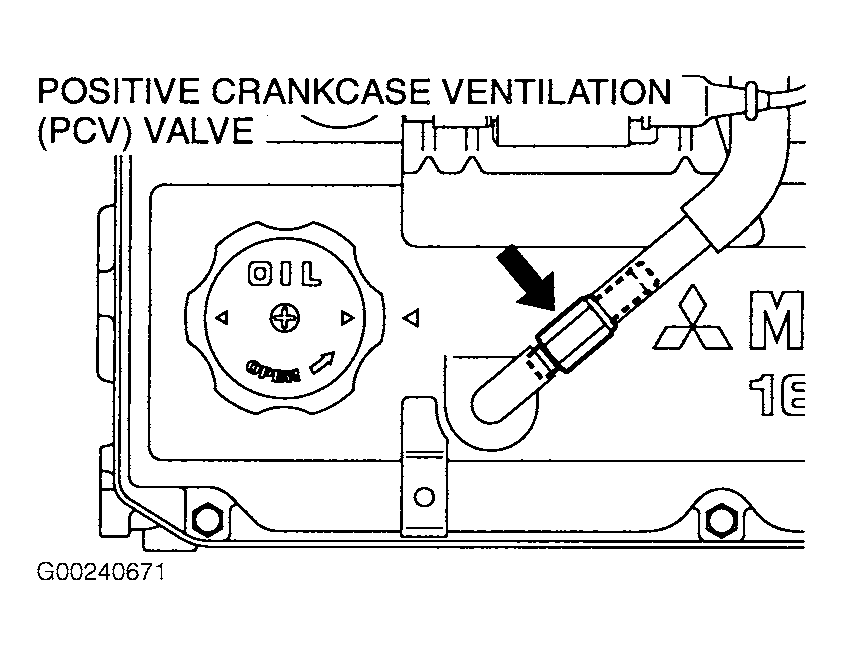

Fig 4: Locating Positive Crankcase Ventilation Valve (Lancer)
G00240671Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

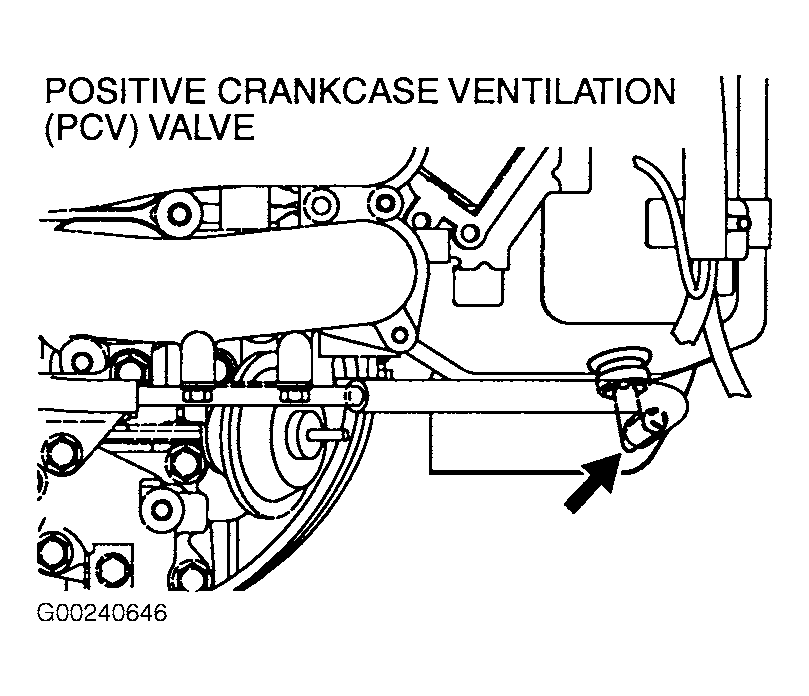

Fig 5: Locating Positive Crankcase Ventilation Valve (Montero)
G00240646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

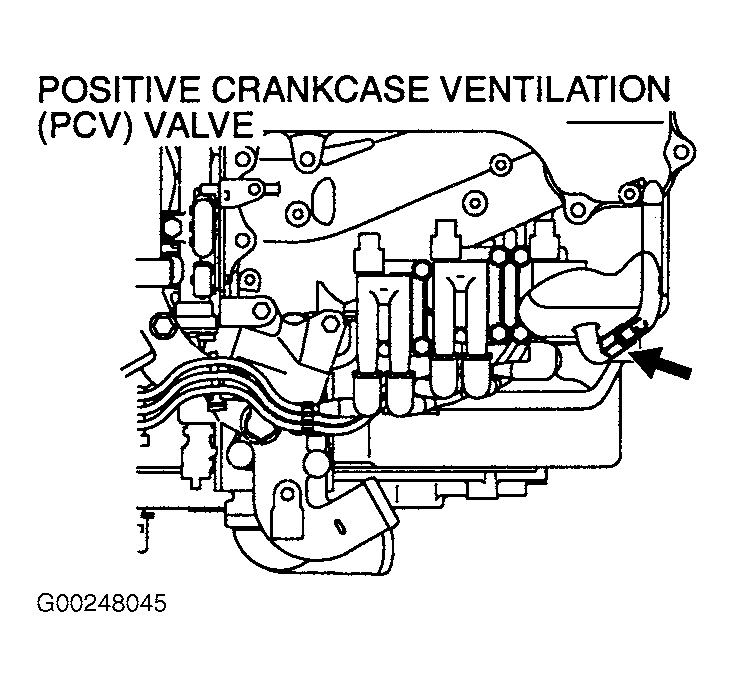

Fig 6: Locating Positive Crankcase Ventilation Valve (Montero Sport)
G00248045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
