Installation (Montero)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
DO NOT apply excessive force to evaporative emission canister.

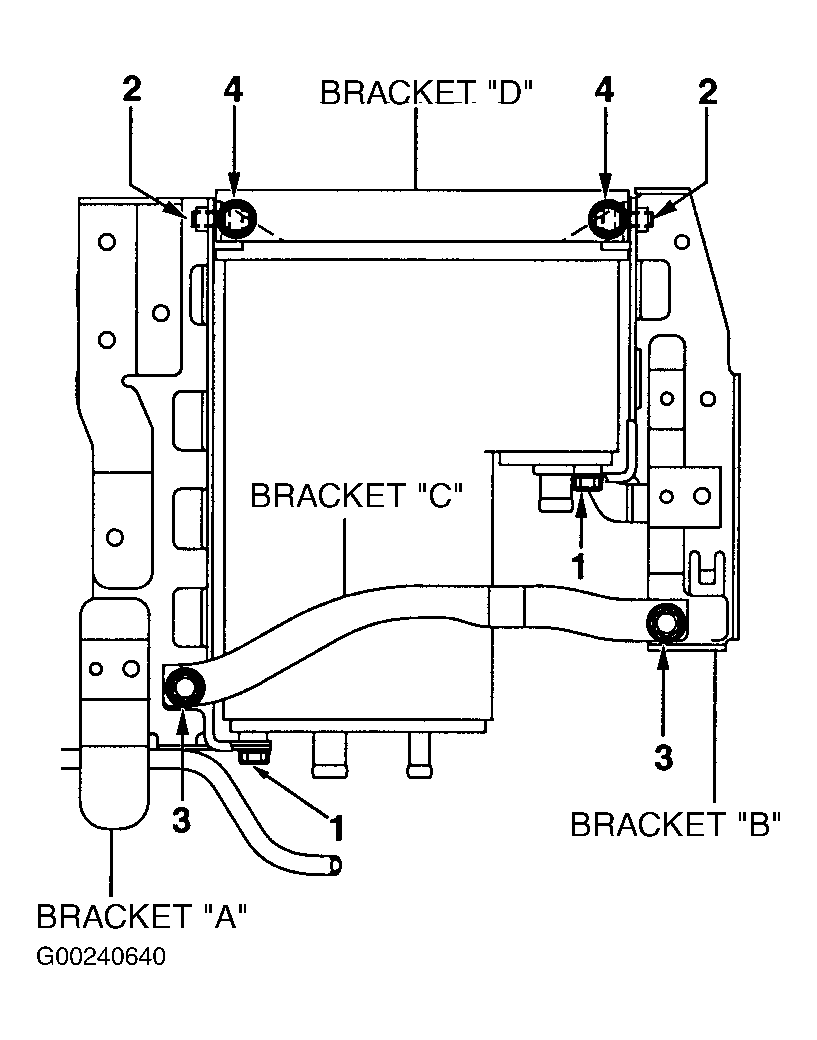

- Ensure to install each EVAP canister bolt and nut in its correct location. See IDENTIFYING EVAPORATIVE EMISSION CANISTER BOLTS/NUTS table. Temporarily install evaporative emission canister brackets "A" and "B" to evaporative emission canister with bolts No. 1 and No. 2. See Fig 1.
- Tighten bolt No. 2 securely. Install evaporative emission canister brackets "C" and "D" to evaporative emission canister brackets "A" and "B" with bolt No. 3 and nut No. 4. Tighten bolt No. 1 securely, and install evaporative emission canister and bracket assembly to vehicle.

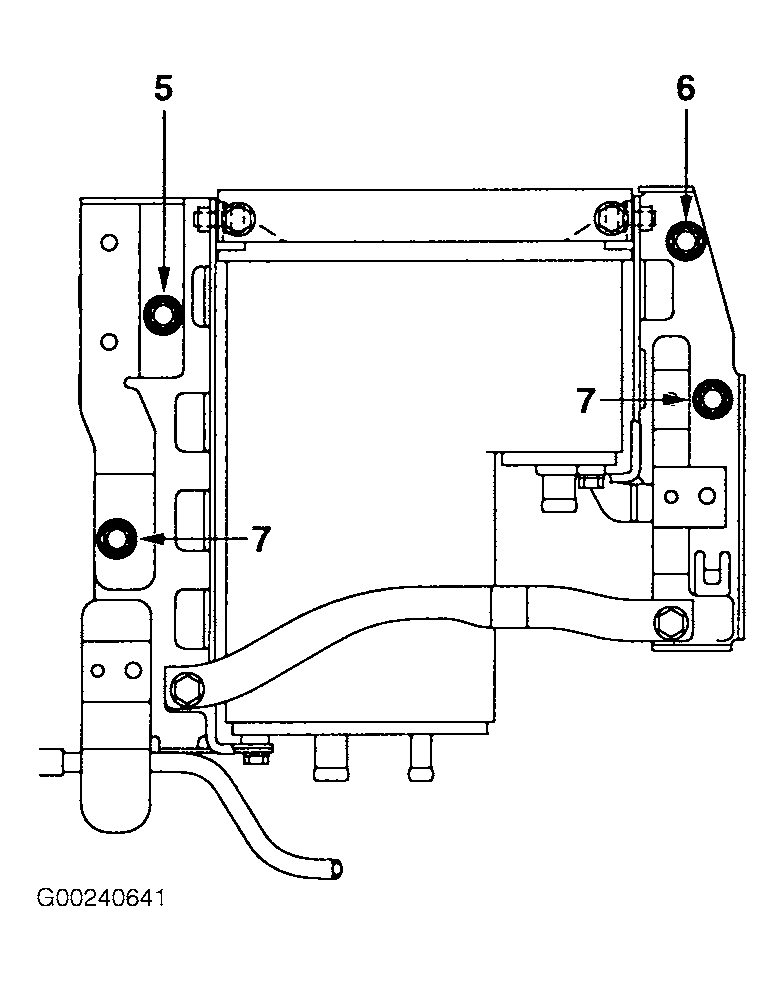

- Tighten bolt No. 5 by hand. See Fig 2. Tighten bolt No. 6 by hand. Tighten bolt No. 7. Tighten bolts No. 5 and No. 6. To complete installation, reverse removal procedure.
IDENTIFYING EVAPORATIVE EMISSION CANISTER BOLTS/NUTS
| Item (1) | Component No. | Quantity | Size mm (Diameter X Length) | ||
|---|---|---|---|---|---|
| Bolt & Washer Assembly | 1 | 2 | M8 X 14 | ||
| Bolt & Washer Assembly | 2 & 3 | 4 | M8 X 18 | ||
| Nut & Washer Assembly | 4 | 2 | M8 | ||
| Bolt & Washer Assembly | 5, 6 & 7 | 4 | M8 X 18 | ||
|
|
|||||
