Removal & Installation (Diamante, Eclipse, Galant, Montero, Montero Sport & Outlander)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

To remove EGR valve, see Fig 1-Fig 6 or Figure . Install NEW EGR valve gasket. Tighten EGR valve bolts to specification. See TORQUE SPECIFICATIONS .

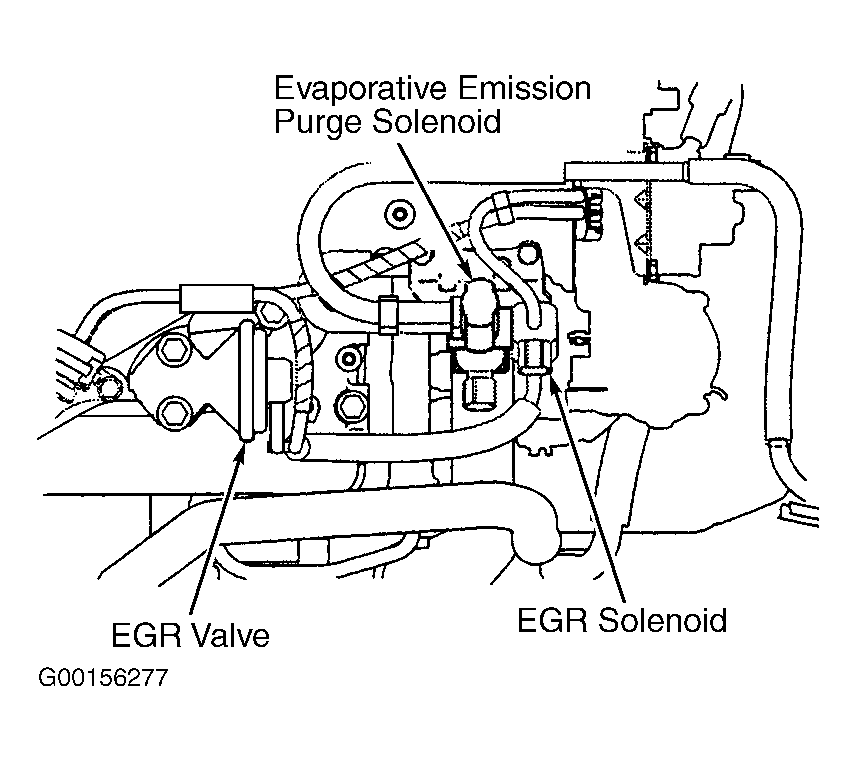

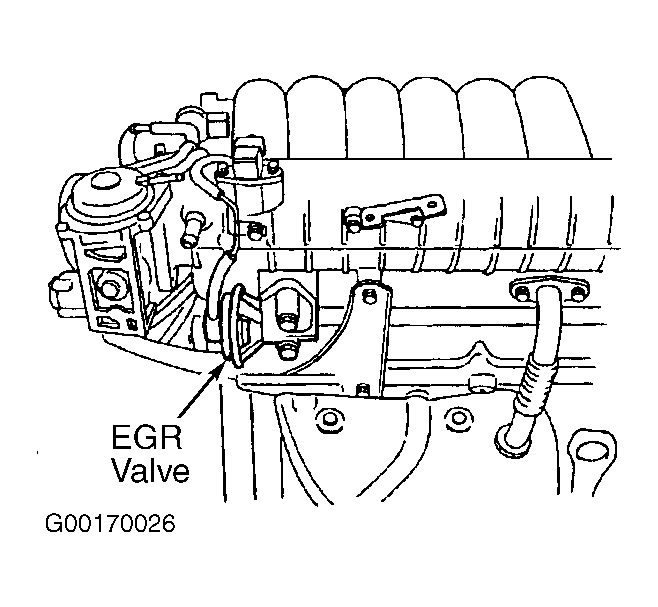

Fig 1: Locating EGR Valve (Diamante)
G00170026Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

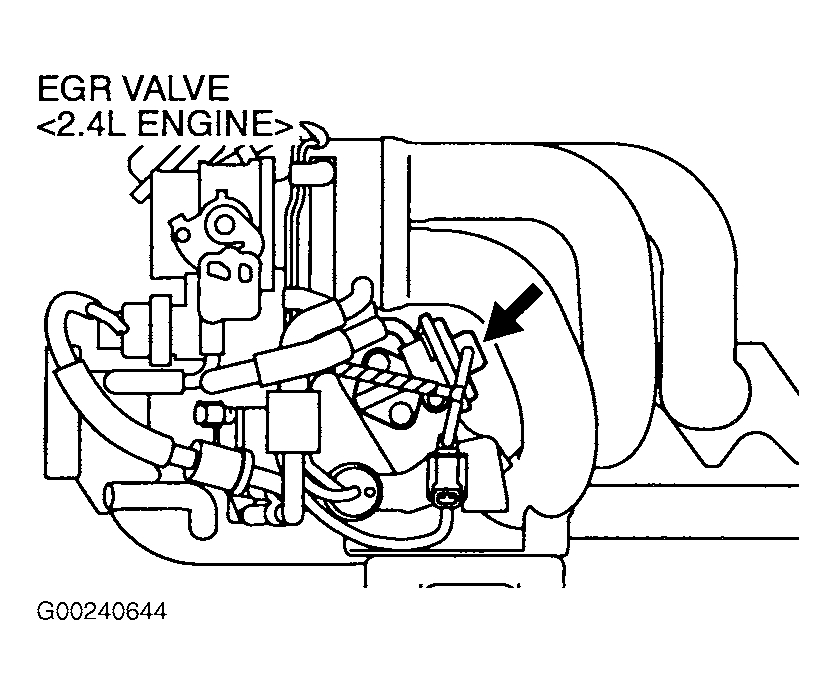

Fig 2: Locating EGR Valve (Eclipse 2.4L & Galant 2.4L)
G00240644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

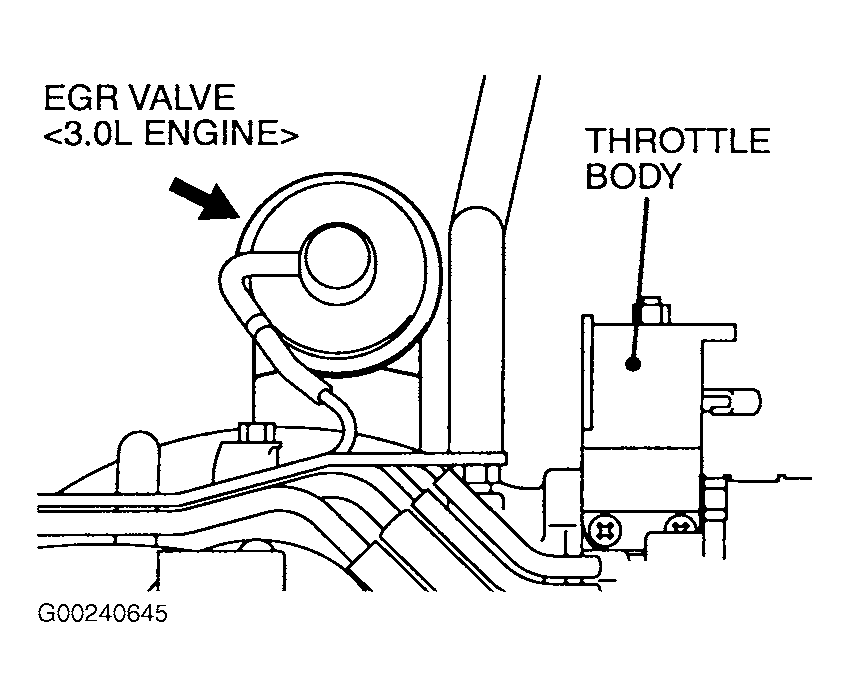

Fig 3: Locating EGR Valve (Eclipse 3.0L & Galant 3.0L)
G00240645Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

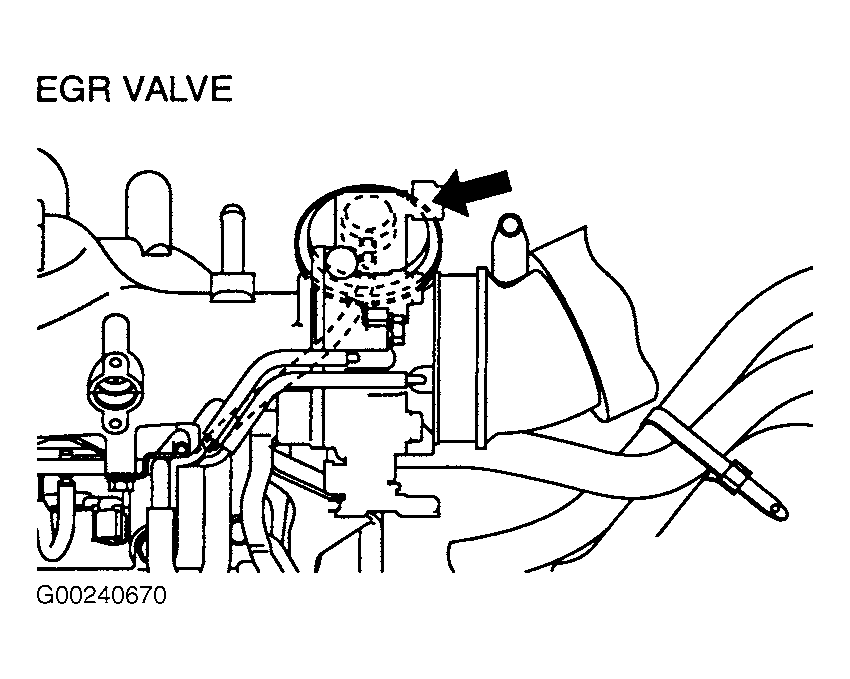

Fig 4: Locating EGR Valve (Lancer)
G00240670Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

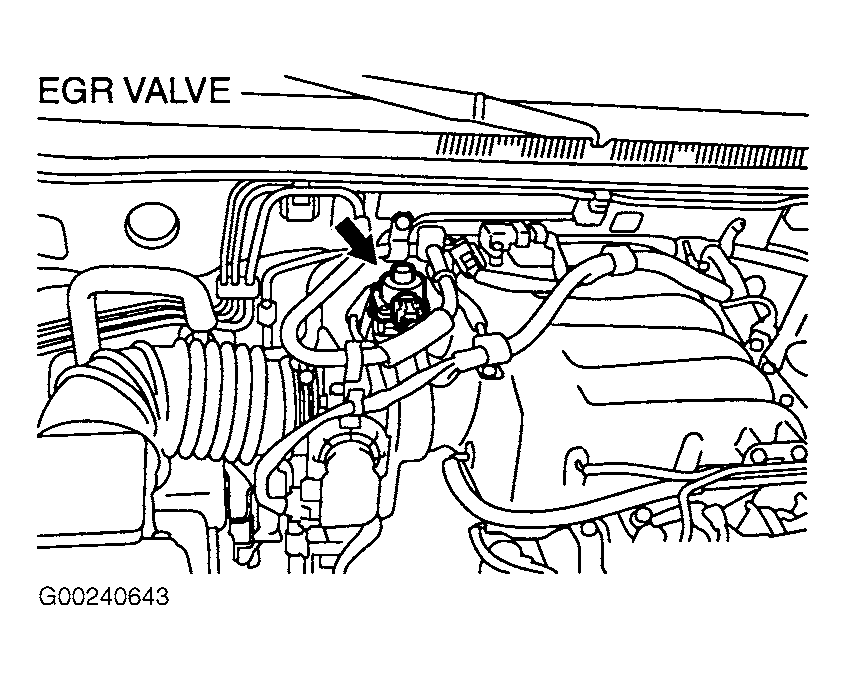

Fig 5: Locating EGR Valve (Montero)
G00240643Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

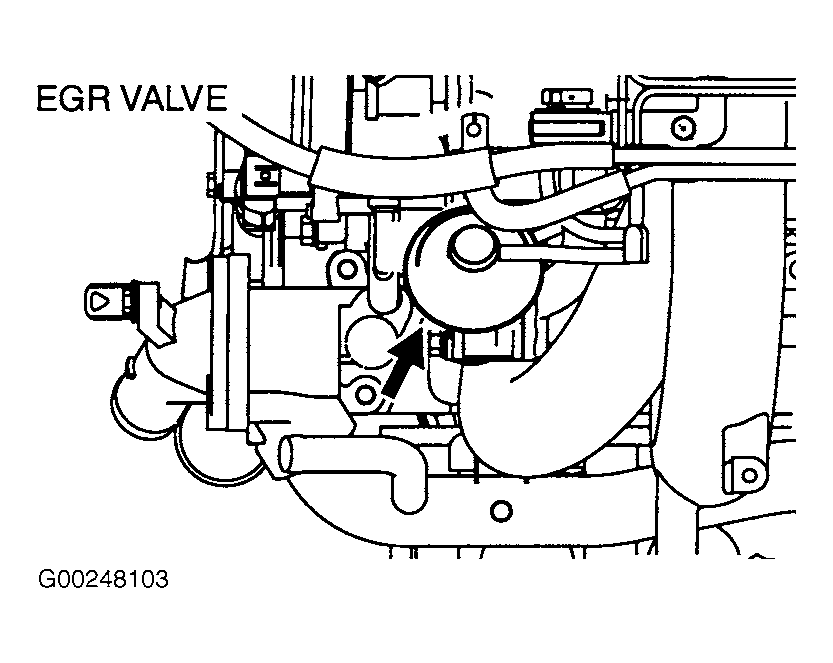

Fig 6: Locating EGR Valve (Outlander)
G00248103Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
