Removal (Eclipse & Galant)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

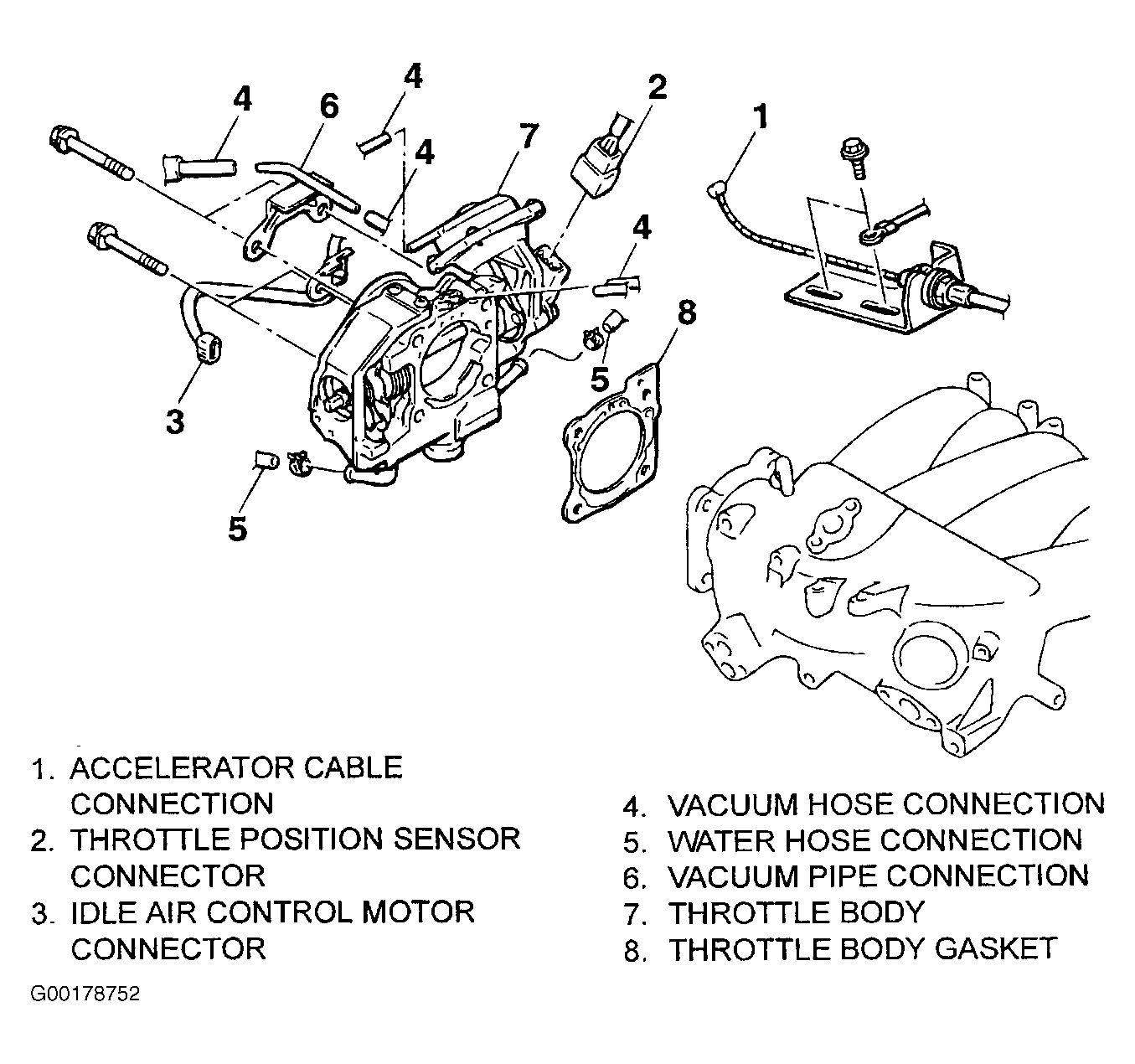

Loosen radiator drain plug and remove radiator cap to discharge coolant. Remove air cleaner assembly. See Figure. Remove accelerator cable. See Fig 1 - Fig 3 . Disconnect throttle position sensor connector and idle air control motor connector. Remove vacuum hose. Remove water hose. Remove vacuum pipe. On Eclipse 2.4L, remove throttle body stay. Remove throttle body and gasket.
