Removal (Diamante - Without Traction Control)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

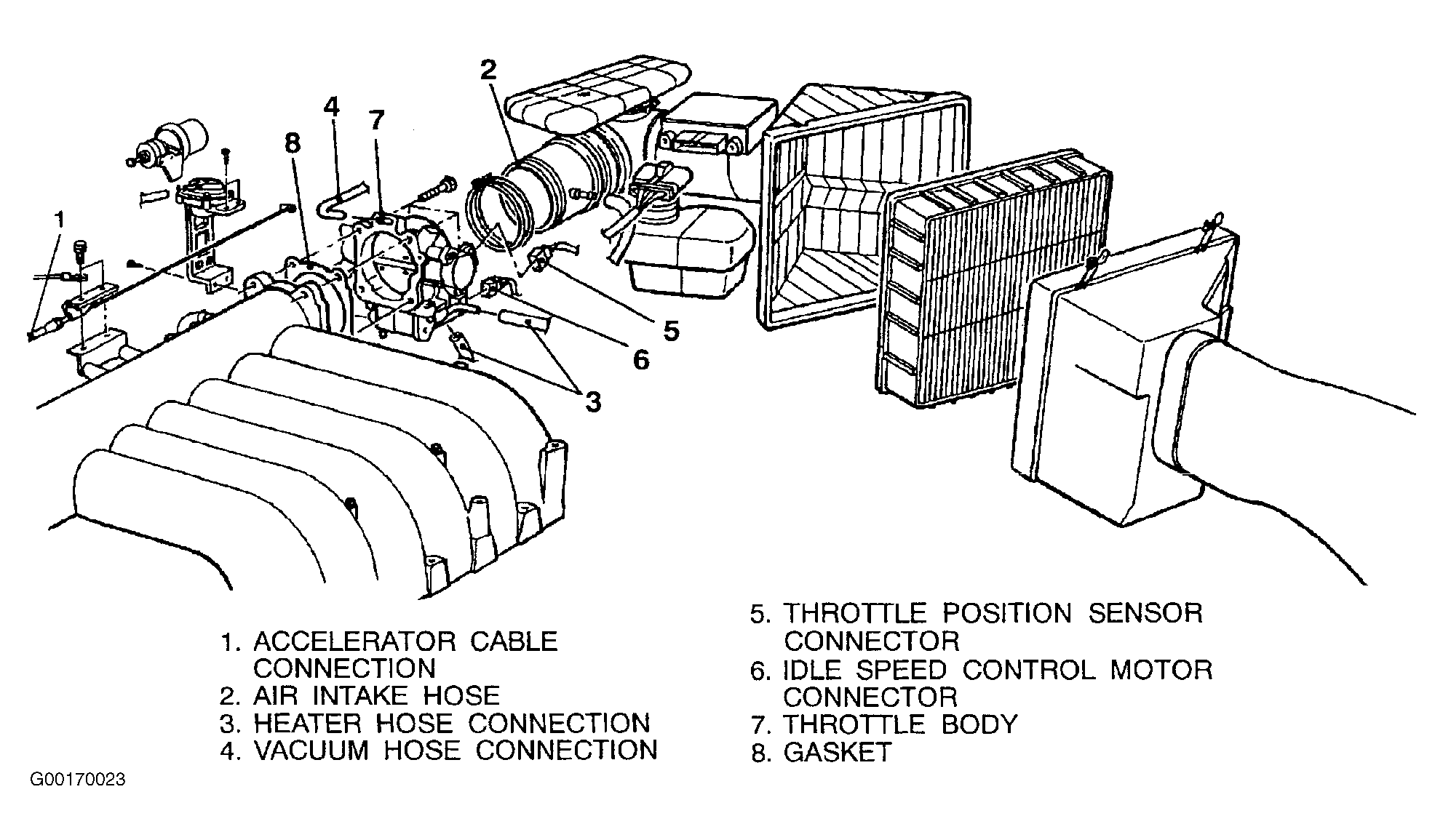

Remove front and rear heat protectors from exhaust manifold. Loosen radiator drain plug and remove radiator cap to discharge coolant. Remove accelerator cable. See Fig 1. Remove air intake hose, heater hose and vacuum hose. See Figure. Disconnect throttle position sensor connector and idle air control motor connector. Remove throttle body and gasket.
