Removal & Installation (Esteem 1.6L)
WARNING: This page is about a different car, the 2002 Suzuki XL-7, 2002 Suzuki Vitara, 2002 Suzuki Grand Vitara, 2002 Suzuki Esteem, and 2002 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

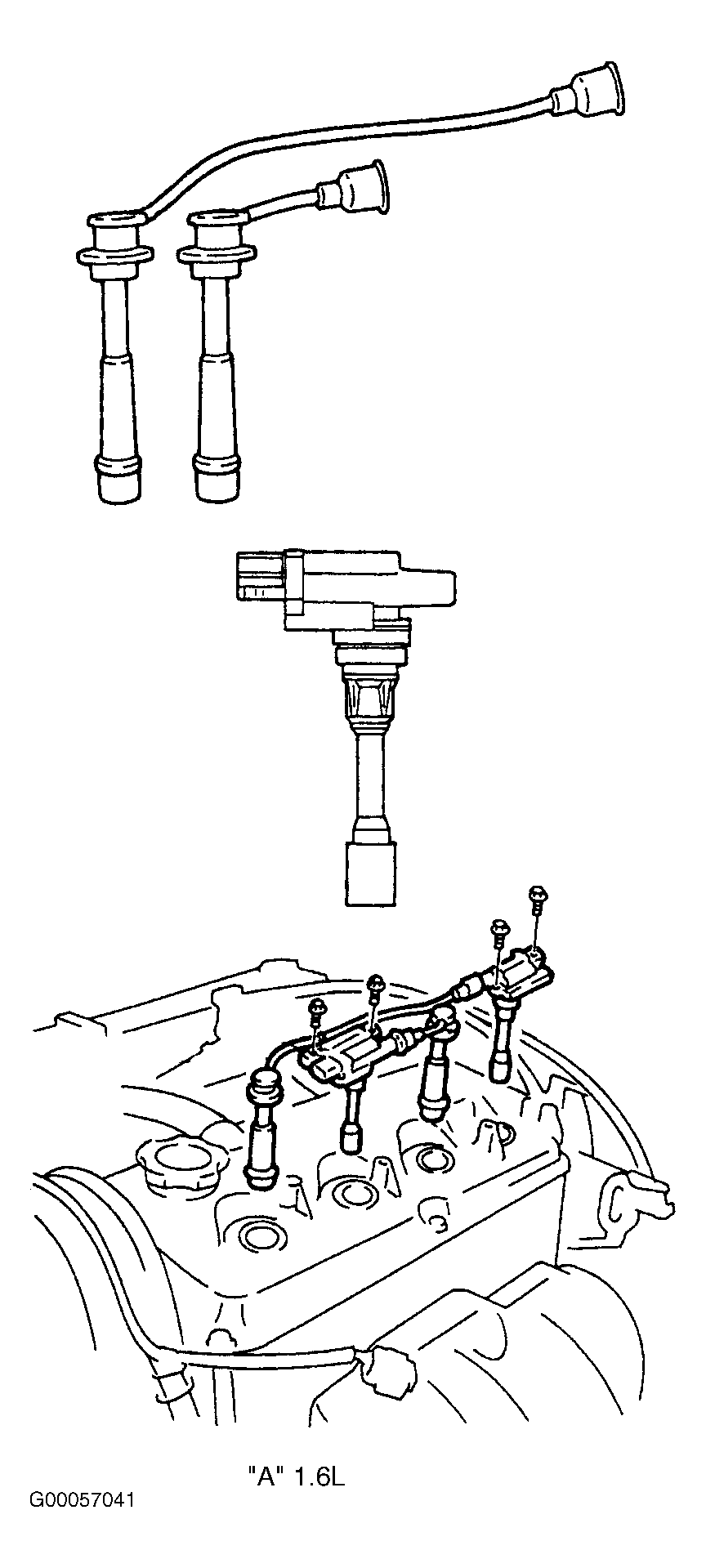

Esteem 1.6L engines are equipped with 2 ignition coil packs (igniter/ignition coil). See Fig 1 . Turn ignition off. Disconnect wiring harness connectors to ignition coils. Disconnect spark plug wires 1 and 3 from ignition coil towers. Remove 4 retaining (2 for each coil) bolts. Turning coils and spark plug boots, slowly pull up to remove coils and spark plug wires from spark plugs. Remove spark plugs. To install, reverse removal procedure.
