Warning Buzzer Unit Removal and Installation (for Light Remainder and Seat Belt): Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination meter. Refer to "COMBINATION METER REMOVAL AND INSTALLATION:  ".
  2. Remove buzzer unit from combination meter.

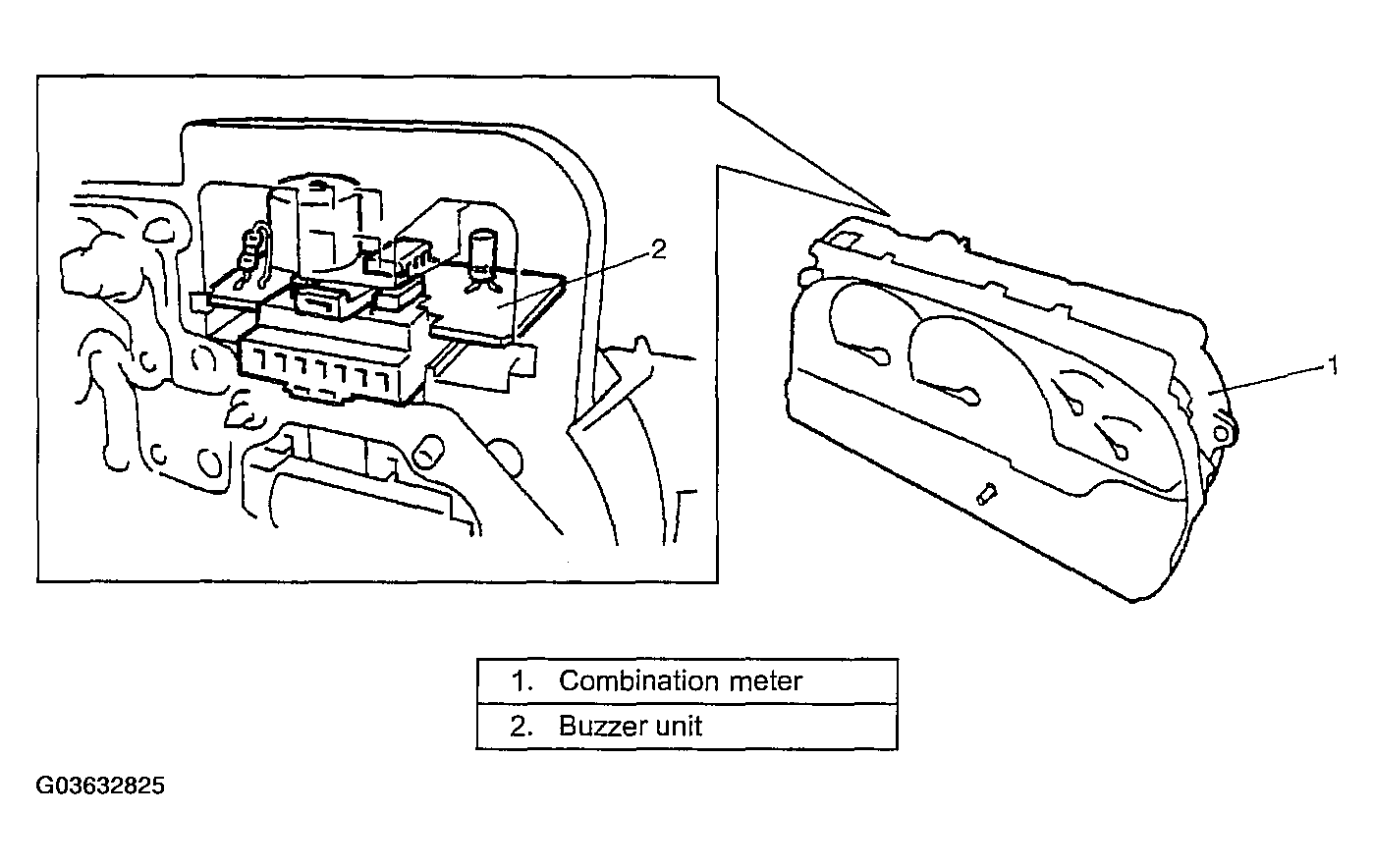

    Fig 1: Removing Buzzer Unit From Combination Meter
    G03632825Courtesy of SUZUKI OF AMERICA CORP.
