Seat Belt Buckle Switch On-Vehicle Inspection
WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

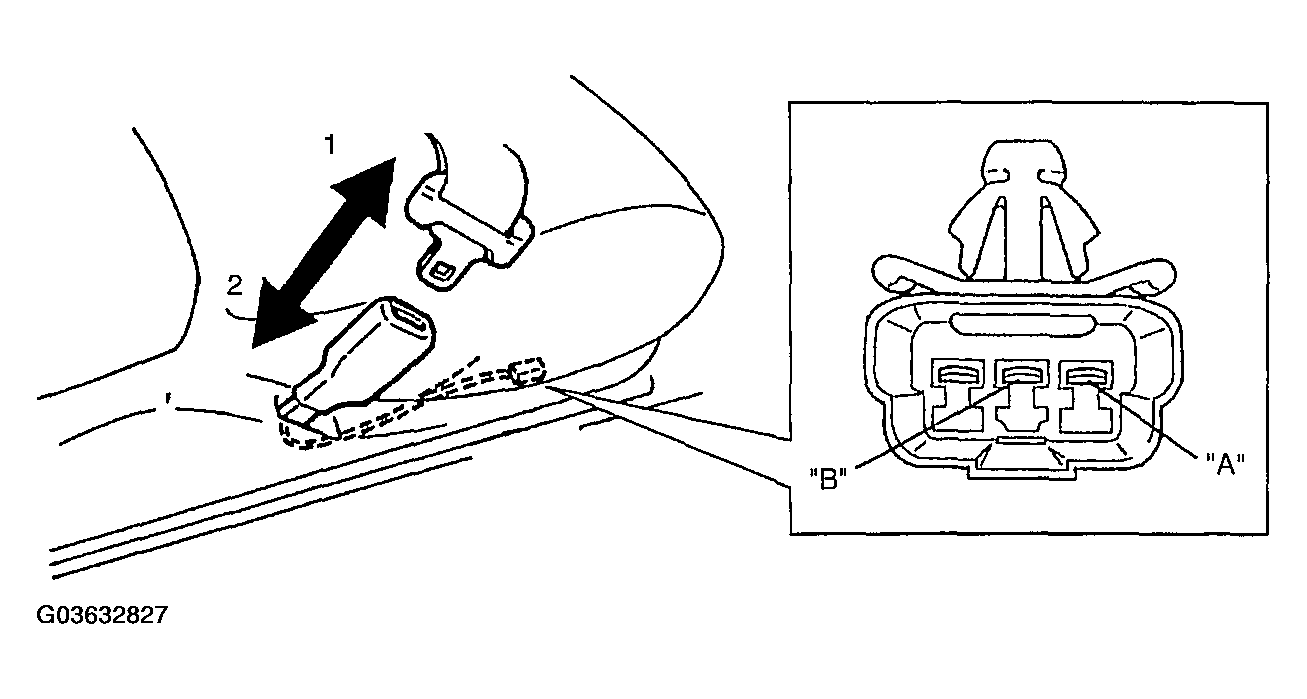

Check continuity between seat belt buckle switch terminal A and B at the following condition. If seat belt buckle switch does not follow the above condition, replace seat belt buckle switch.
Seat belt buckle switch specification
Buckle out (seat belt not fastened) (1): Continuity
Buckle in (seat belt fastened) (2): No Continuity
