Instrument Panel Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable at battery.
  2. Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  3. Remove console box (1).

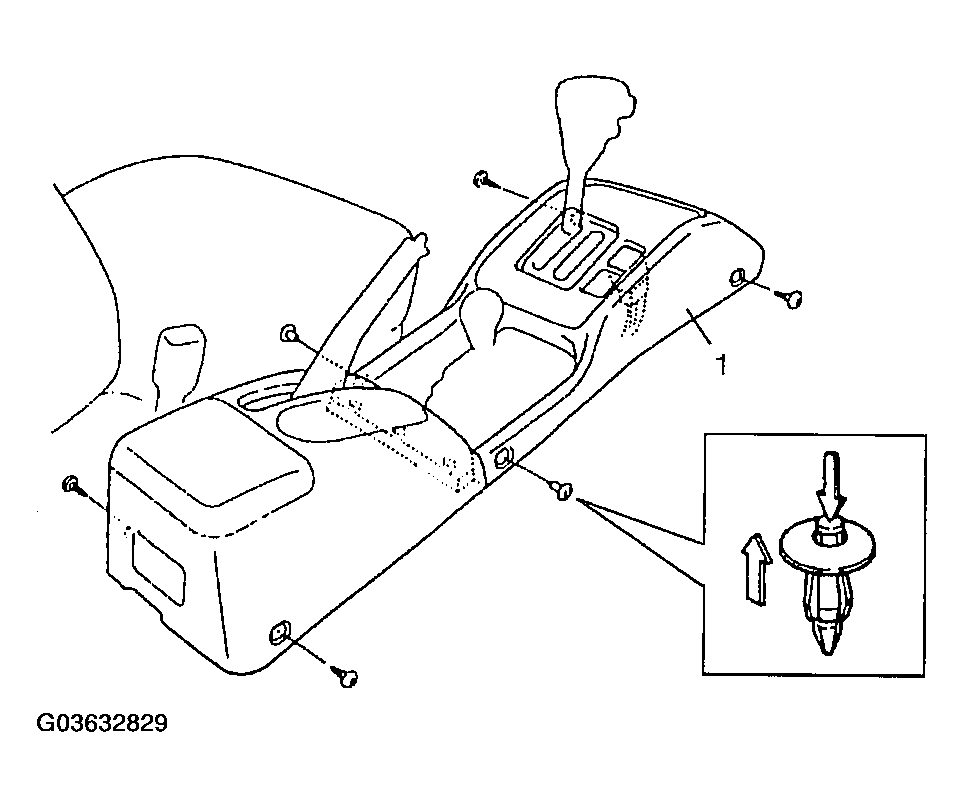

    Fig 1: Removing Console Box
    G03632829Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove glove box and column hole cover.
  5. Disconnect wires and cables from heater unit and blower motor assembly.
  6. Remove steering column assembly. Refer to STEERING COLUMN REMOVAL AND INSTALLATION .
  7. Disconnect speedometer connector and remove speedometer assembly.
  8. Remove engine hood opener.
  9. Disconnect couplers which need to be disconnected for removal for instrument panel.
  10. Remove instrument panel mounting screws.
  11. Remove instrument panel mounting bolt.
  12. Remove instrument panel.
    CAUTION: For vehicle with Air Bag, instrument panel could not be removed with SDM coupler connected. Use care not to damage Air Bag harness.
