Abnormal Noise Diagnosis

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

There are various types of noise, ranging from those produced in the compartment to those from the passenger compartment, also from rumbling noises to whistling noises.

Abnormal Noise from Compressor

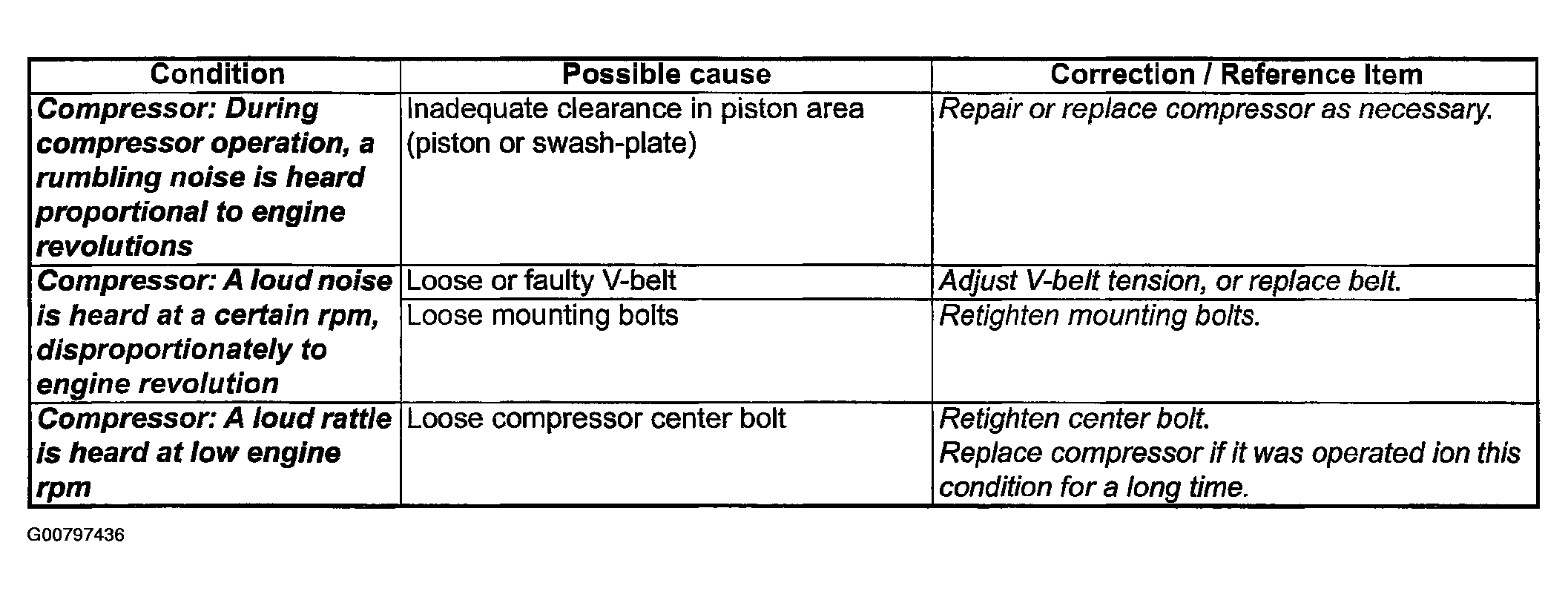

Fig 1: Diagnosis Chart - Abnormal Noise From Compressor

G00797436

Courtesy of SUZUKI OF AMERICA CORP.

Abnormal Noise from magnet Clutch

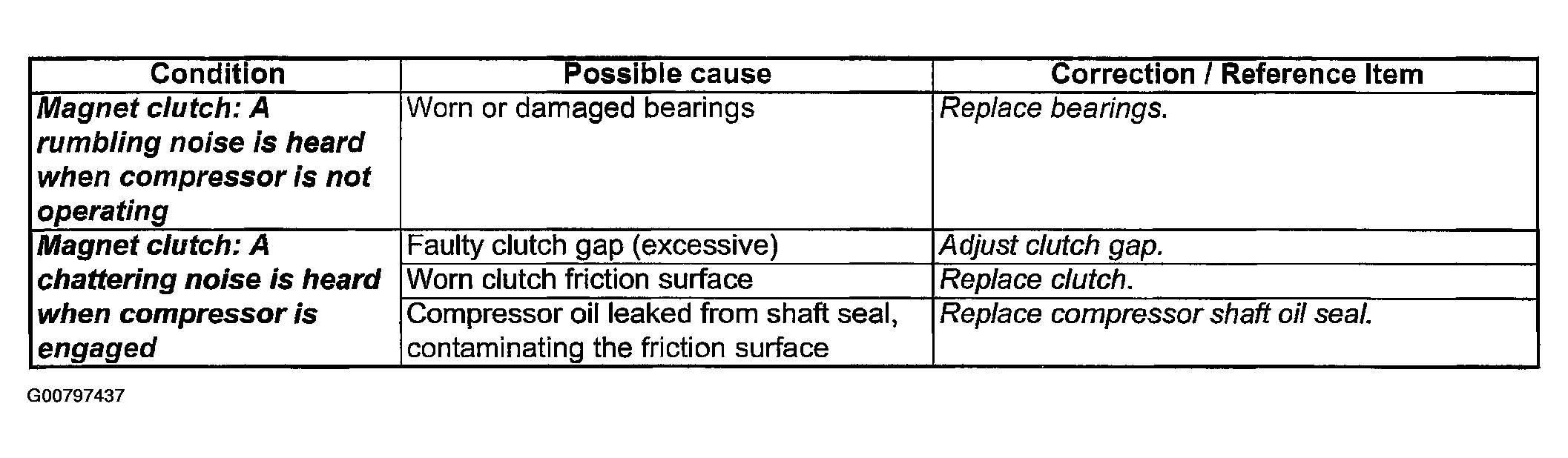

Fig 2: Diagnosis Chart - Abnormal Noise From Magnet Clutch

G00797437

Courtesy of SUZUKI OF AMERICA CORP.

Abnormal Noise from Tubing

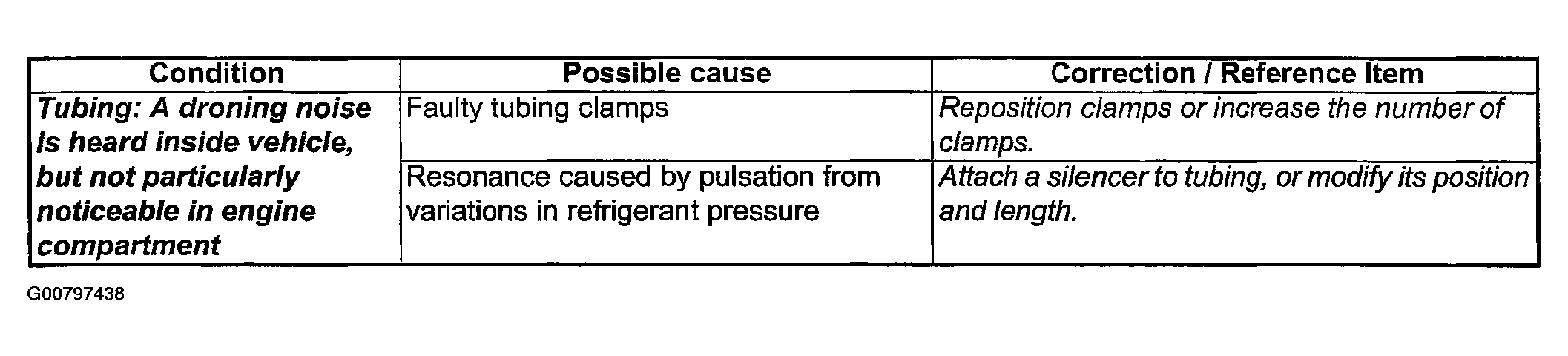

Fig 3: Diagnosis Chart - Abnormal Noise From Tubing

G00797438

Courtesy of SUZUKI OF AMERICA CORP.

Abnormal Noise from Condenser

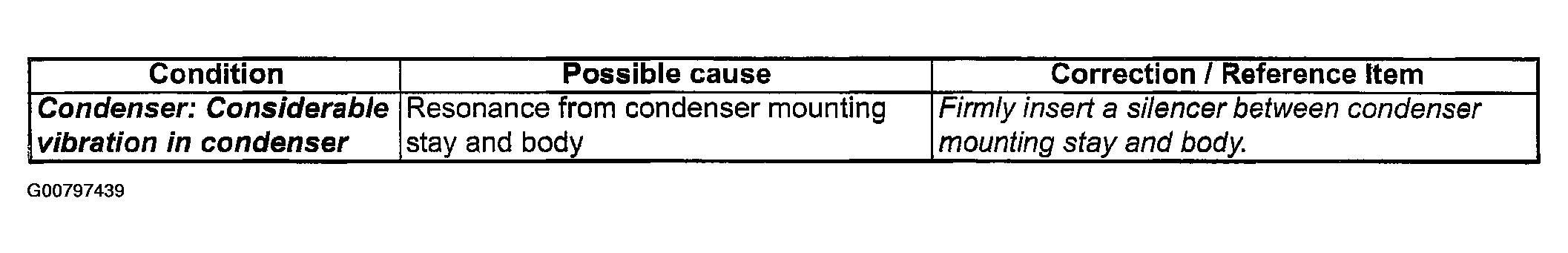

Fig 4: Diagnosis Chart - Abnormal Noise From Condenser

G00797439

Courtesy of SUZUKI OF AMERICA CORP.

Abnormal Noise from Crankshaft Pulley

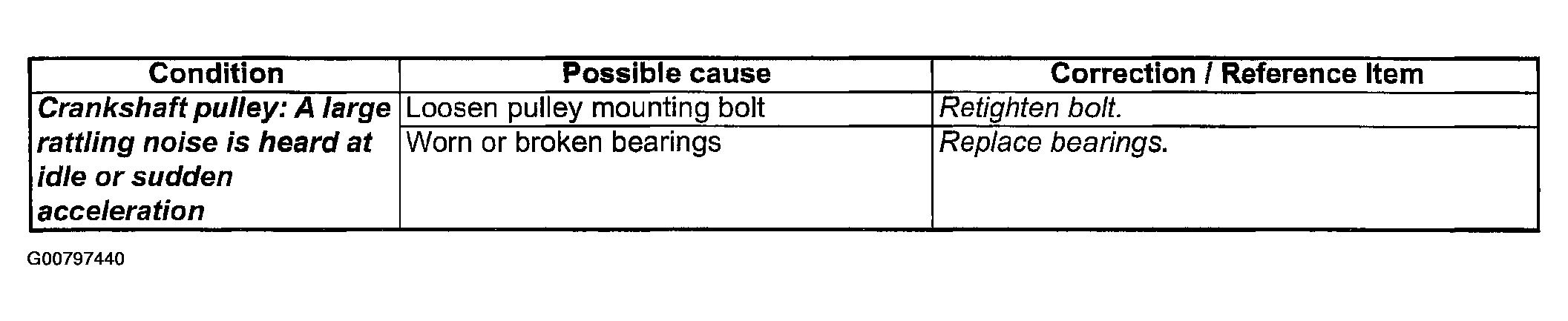

Fig 5: Diagnosis Chart - Abnormal Noise From Crankshaft Pulley

G00797440

Courtesy of SUZUKI OF AMERICA CORP.

Abnormal Noise from Tension Pulley

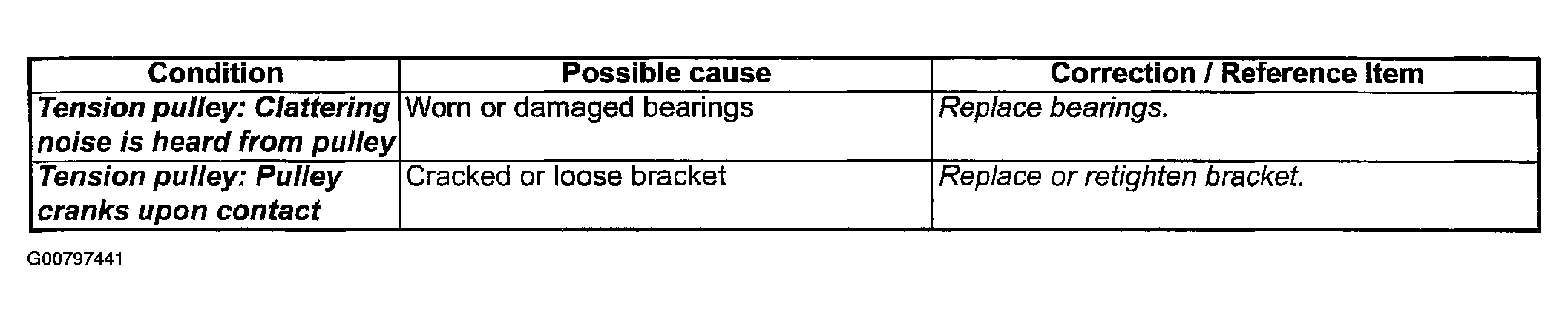

Fig 6: Diagnosis Chart - Abnormal Noise From Tension Pulley

G00797441

Courtesy of SUZUKI OF AMERICA CORP.

Abnormal Noise from Evaporator

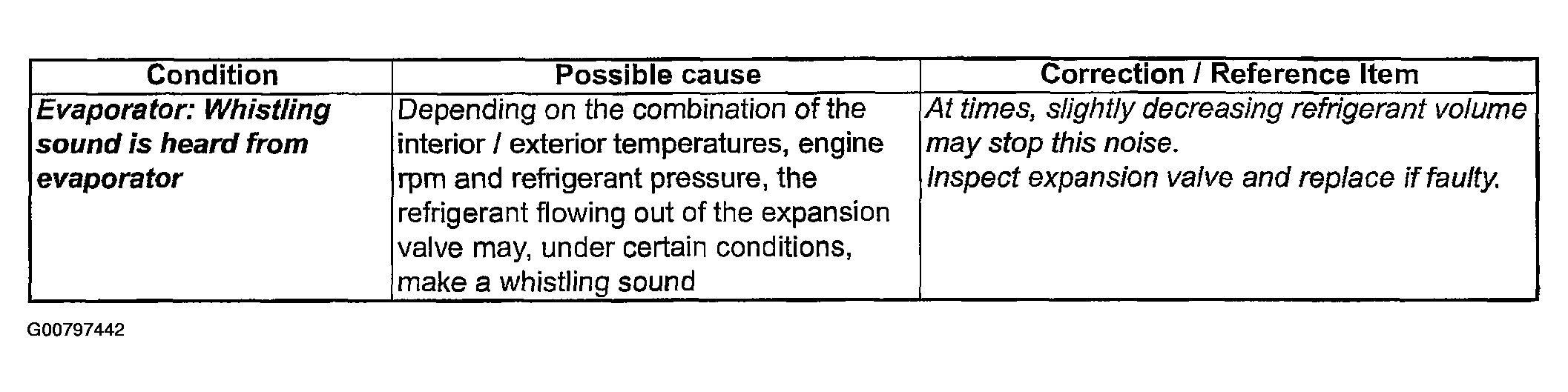

Fig 7: Diagnosis Chart - Abnormal Noise From Evaporator

G00797442

Courtesy of SUZUKI OF AMERICA CORP.

Abnormal Noise from Blower Motor

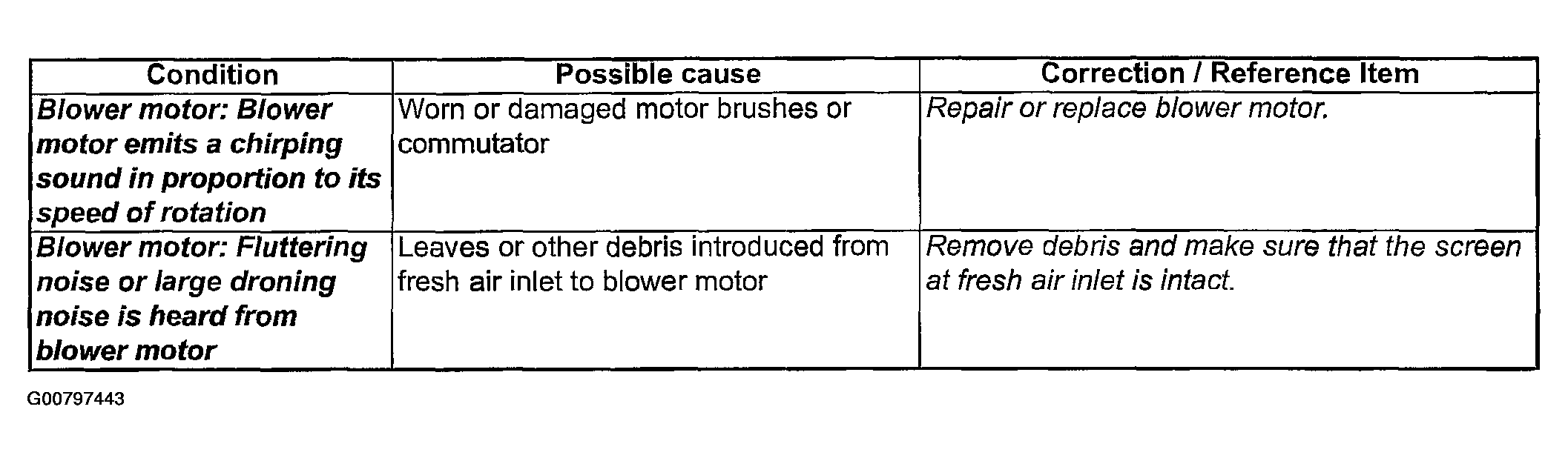

Fig 8: Diagnosis Chart - Abnormal Noise From Blower Motor

G00797443

Courtesy of SUZUKI OF AMERICA CORP.
