Heater and Ventilation Wiring Circuit Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

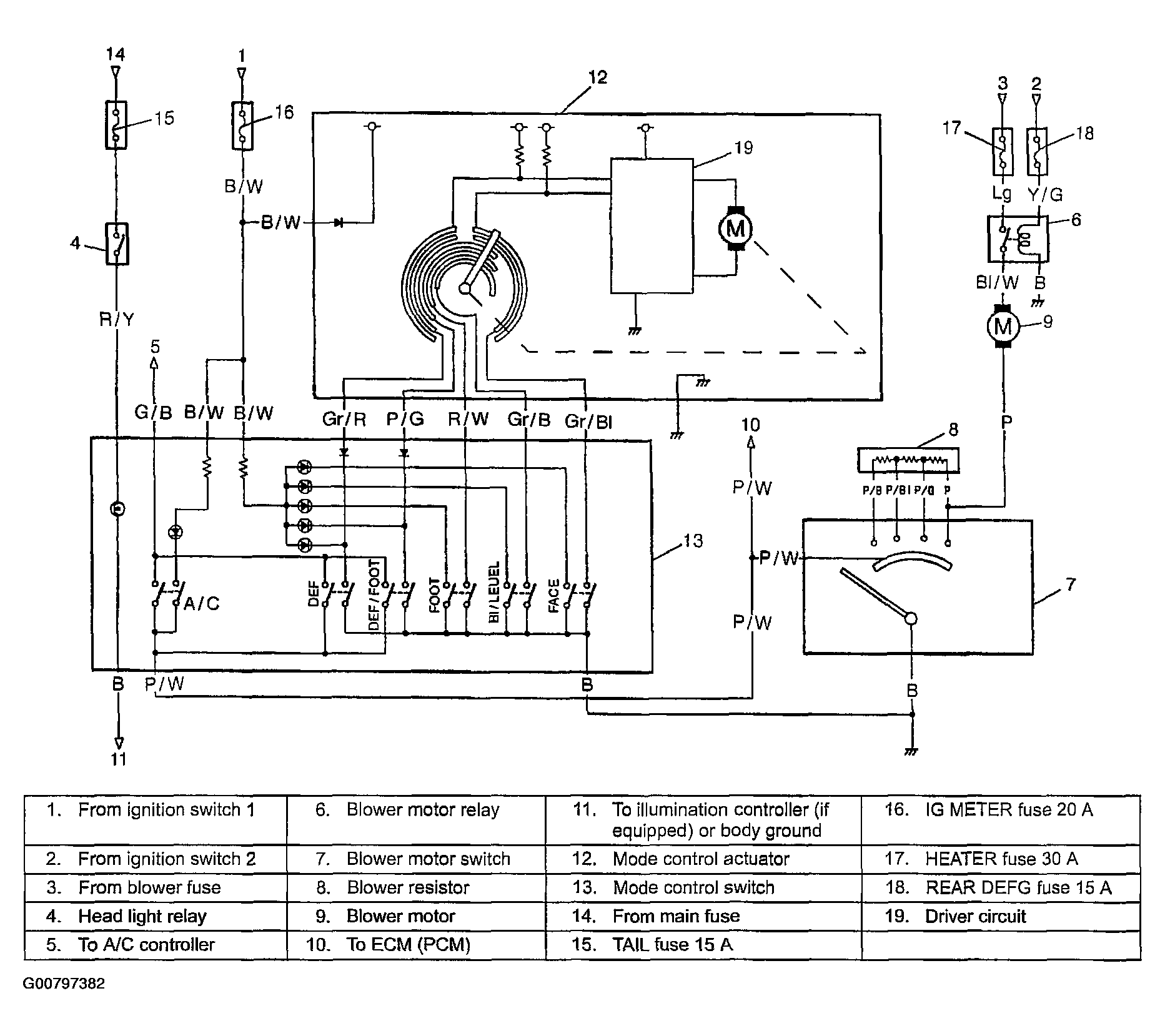

Fig 1: Identifying Heater And Ventilation Wiring Circuit Diagram
G00797382Courtesy of SUZUKI OF AMERICA CORP.
