Heater Control Lever Assembly Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal procedure, adjustment the following items.
1. Move control lever (1) to FRESH position (2).

  Fig 1: Moving Control Lever To Fresh Position
  Courtesy of SUZUKI OF AMERICA CORP.
2. Push heater lever fully in arrow direction and fix cable with clamp in position as shown in the figure.

  Fig 2: Pushing Heater Lever Fully In Arrow Direction And Fix Cable With Clamp In Position
  Courtesy of SUZUKI OF AMERICA CORP.
3. Push blower lever fully in arrow direction and fix cable with clamp in position as shown in the figure.
NOTE: After installing control cables, be sure that control levers move smoothly and stop at proper position.

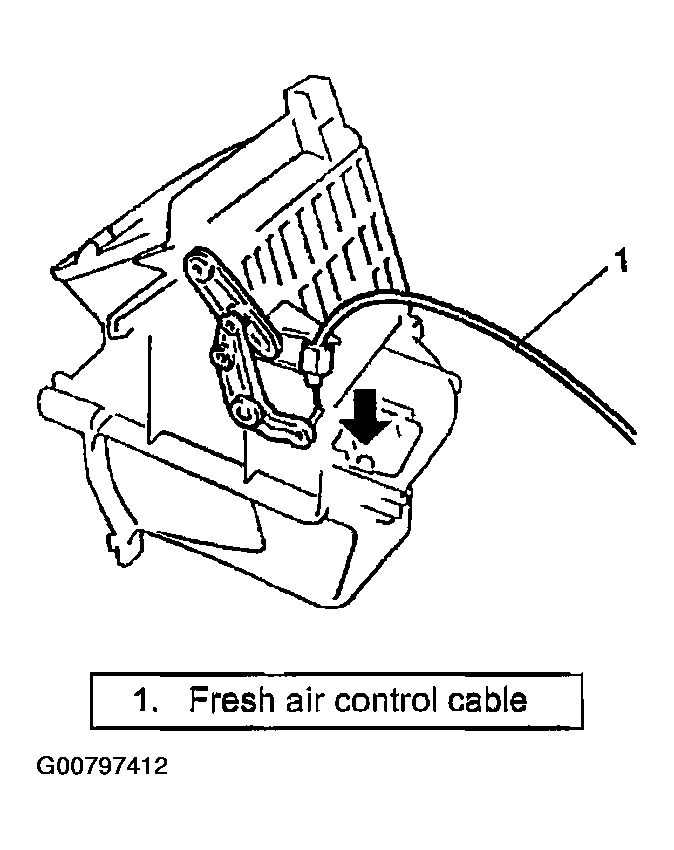

Fig 3: Installing Fresh Air Control Cable
Courtesy of SUZUKI OF AMERICA CORP.
Enable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
