Heater Blower Unit Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Disable air bag system, if equipped. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  3. Open glove box, then remove screw.
  4. Remove glove box.

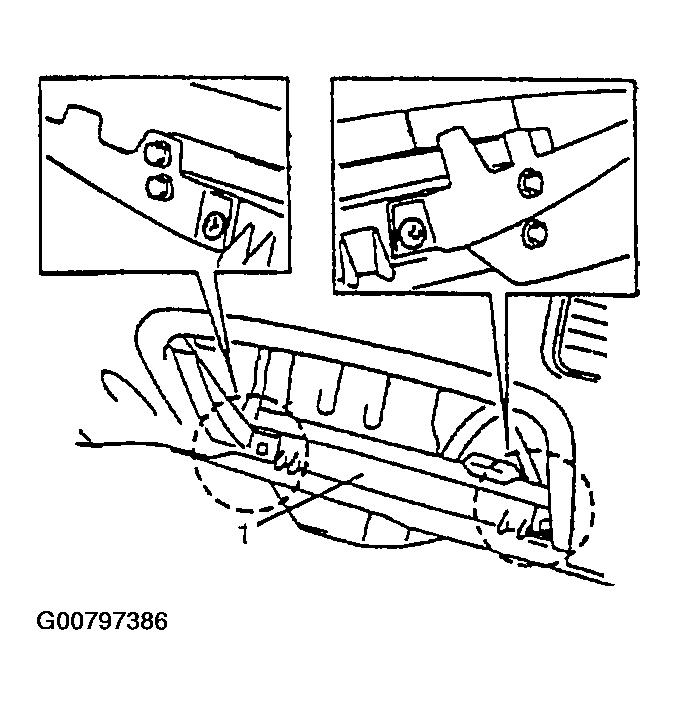

  5. Remove passenger lower member (1).
    Fig 1: Removing Passenger Lower Member
    G00797386Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove ECM (1) with bracket (2) from blower motor unit (4).
    Fig 2: Removing ECM With Bracket From Blower Motor Unit
    G00797387Courtesy of SUZUKI OF AMERICA CORP.

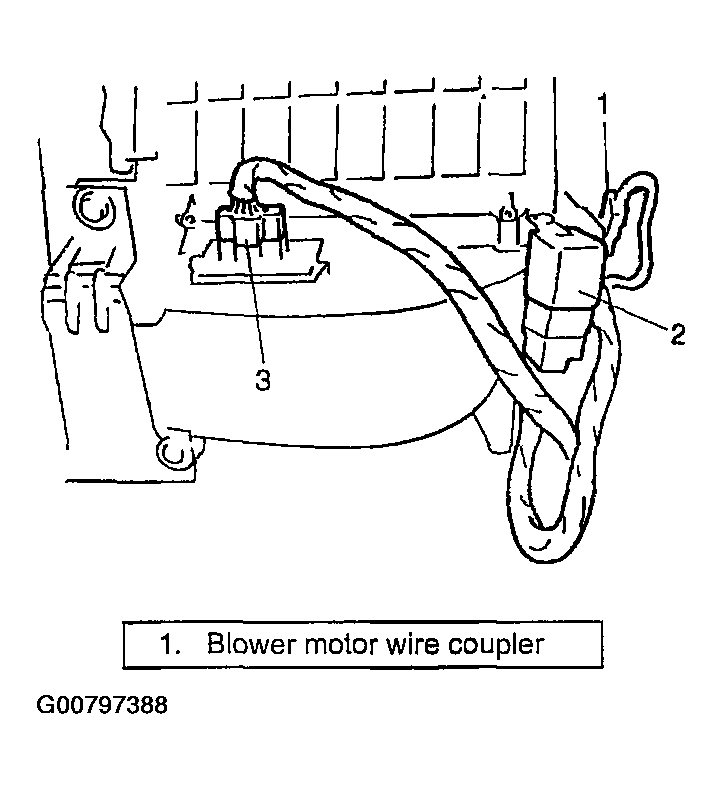

  7. Disconnect blower motor, blower motor relay (2) and resistor lead wires at couplers (3).
    Fig 3: Disconnecting Blower Motor Relay And Resistor Lead Wires At Couplers
    G00797388Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove cooling unit (if equipped). Refer to "HEATER UNIT REMOVAL AND INSTALLATION:  ".
  9. Disconnect fresh air control cable from blower motor case.
  10. Remove fastening nuts (1), remove blower motor unit (2).
    Fig 4: Removing Fastening Nuts And Blower Motor Unit
    G00797389Courtesy of SUZUKI OF AMERICA CORP.
