Heater Blower Resistor Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable (2) at battery (1).

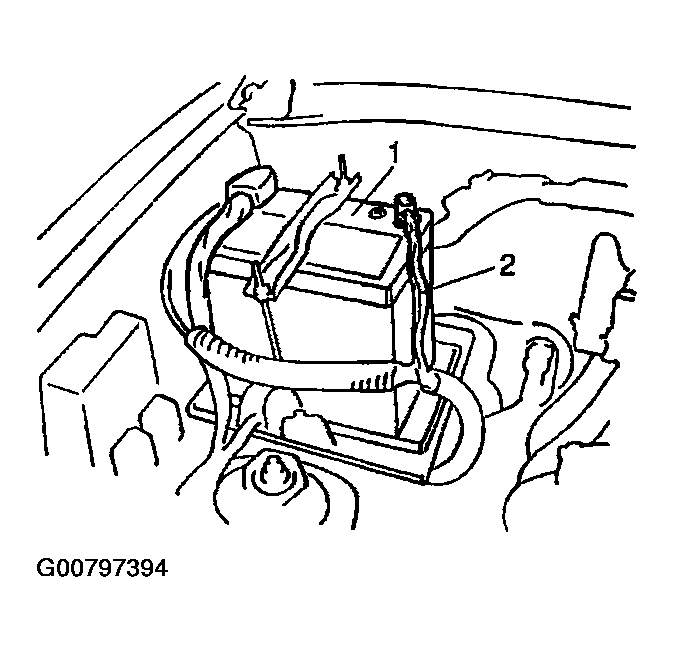

Fig 1: Disconnecting Negative Cable At Battery
Courtesy of SUZUKI OF AMERICA CORP.
Disable air bag system, if equipped. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Open glove box, then remove screw (2).
Remove glove box (1).

Fig 2: Removing Glove Box
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect resistor coupler.
Remove heater blower resistor (1) by loosening its fastening screw (2).

Fig 3: Removing Heater Blower Resistor By Loosening Its Fastening Screw

Courtesy of SUZUKI OF AMERICA CORP.
