Heater Blower Motor Inspection

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminal to terminal as shown in the figure. If check results are continuity, proceed to next operation check. If not, replace.

Fig 1: Checking Continuity Between Terminal To Terminal
Courtesy of SUZUKI OF AMERICA CORP.
Connect battery to blower motor as shown, then check that the blower motor operates smoothly.

Reference current for blower motor

18 - 24 A at 12 V

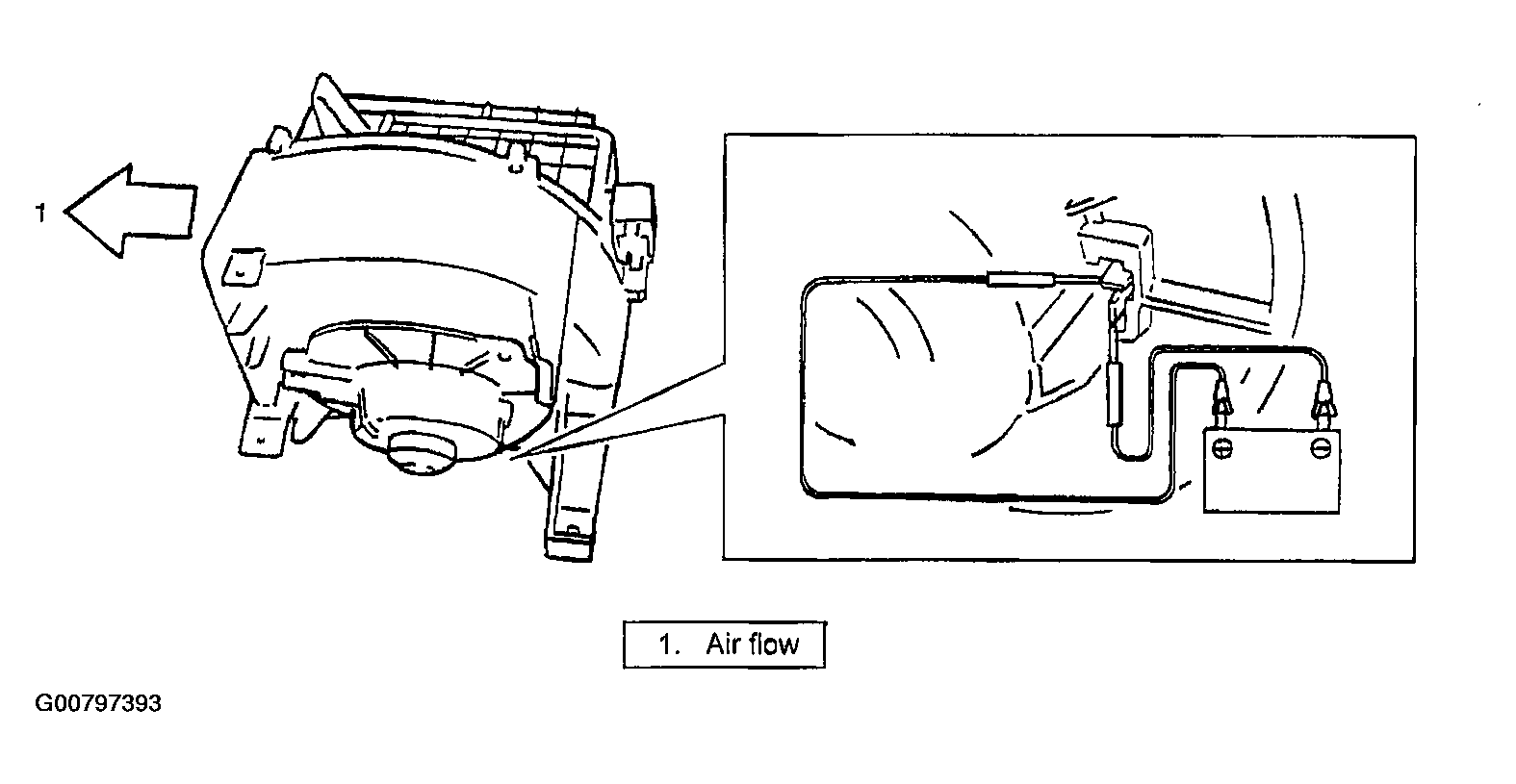

Fig 2: Connecting Battery To Blower Motor

Courtesy of SUZUKI OF AMERICA CORP.
